16-5 Recovery 13) Select the ‘Save Changes and Exit’ menu and save the CMOS setting config uration once again and then exit the CMOS.
16-4
Fast & Flexible Chip Shooter DECAN F2 Service Manual

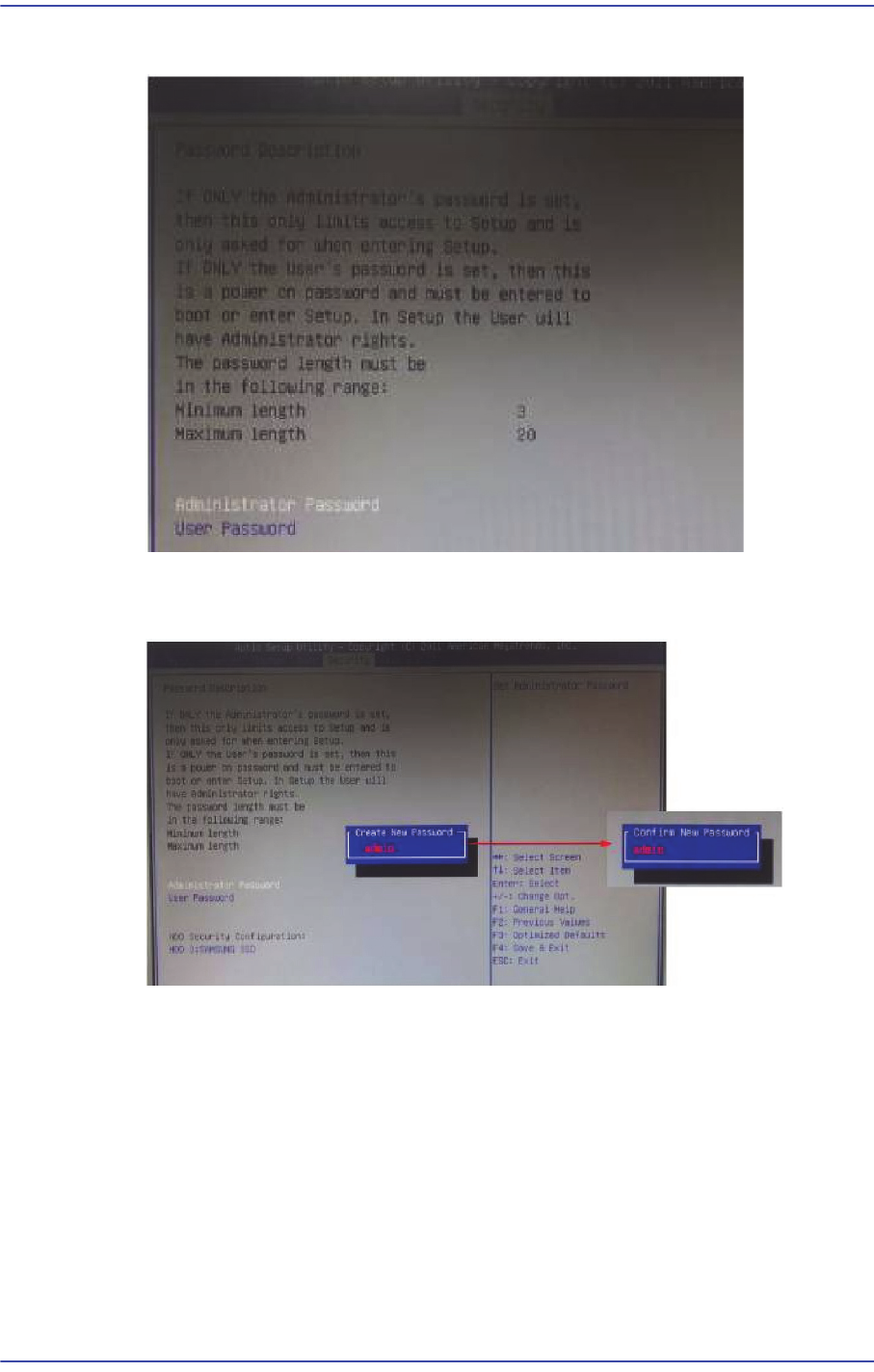

10) Move to the Security menu and select Administrator Password.
11) When the Password window appears, input “admin”. When the ‘Confirm’ input
window appears, input “admin” once again.

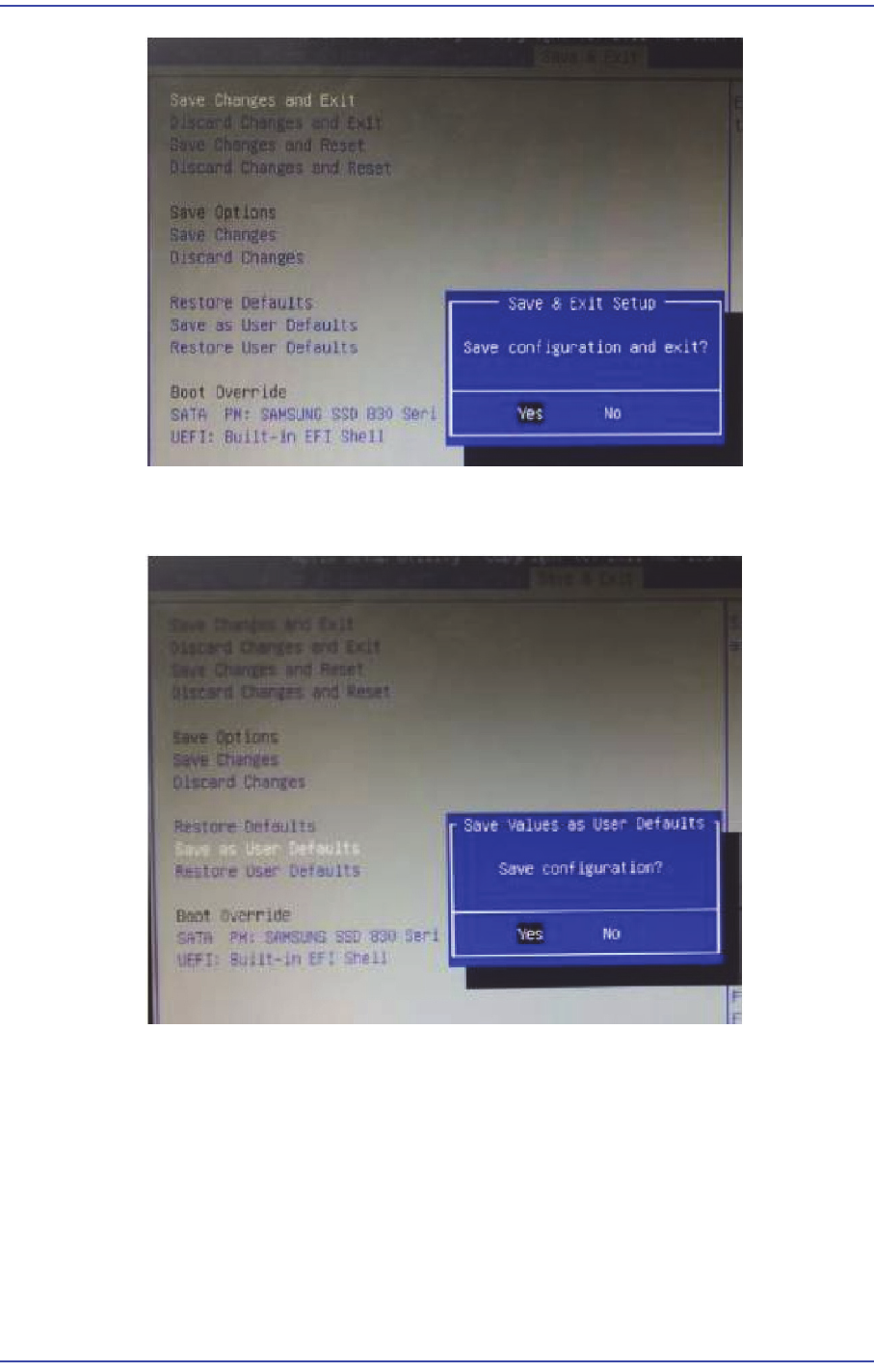

12) Once CMOS setup is completed, move to the ‘Save & Exit’ menu and select ‘Save as
User Defaults’ to save the setting configuration.
16-5
Recovery
13) Select the ‘Save Changes and Exit’ menu and save the CMOS setting configuration
once again and then exit the CMOS.
16-6
Fast & Flexible Chip Shooter DECAN F2 Service Manual
16.2. Boot ROM Copy
16.2.1. How to copy Boot ROM
1) Connect the FDD drive to the USB and insert the RT ROM Boot diskette for booting.
2) Once booting is finished using an FDD, enter the following in the Command window
to execute the partition setup.
A:>fdisk

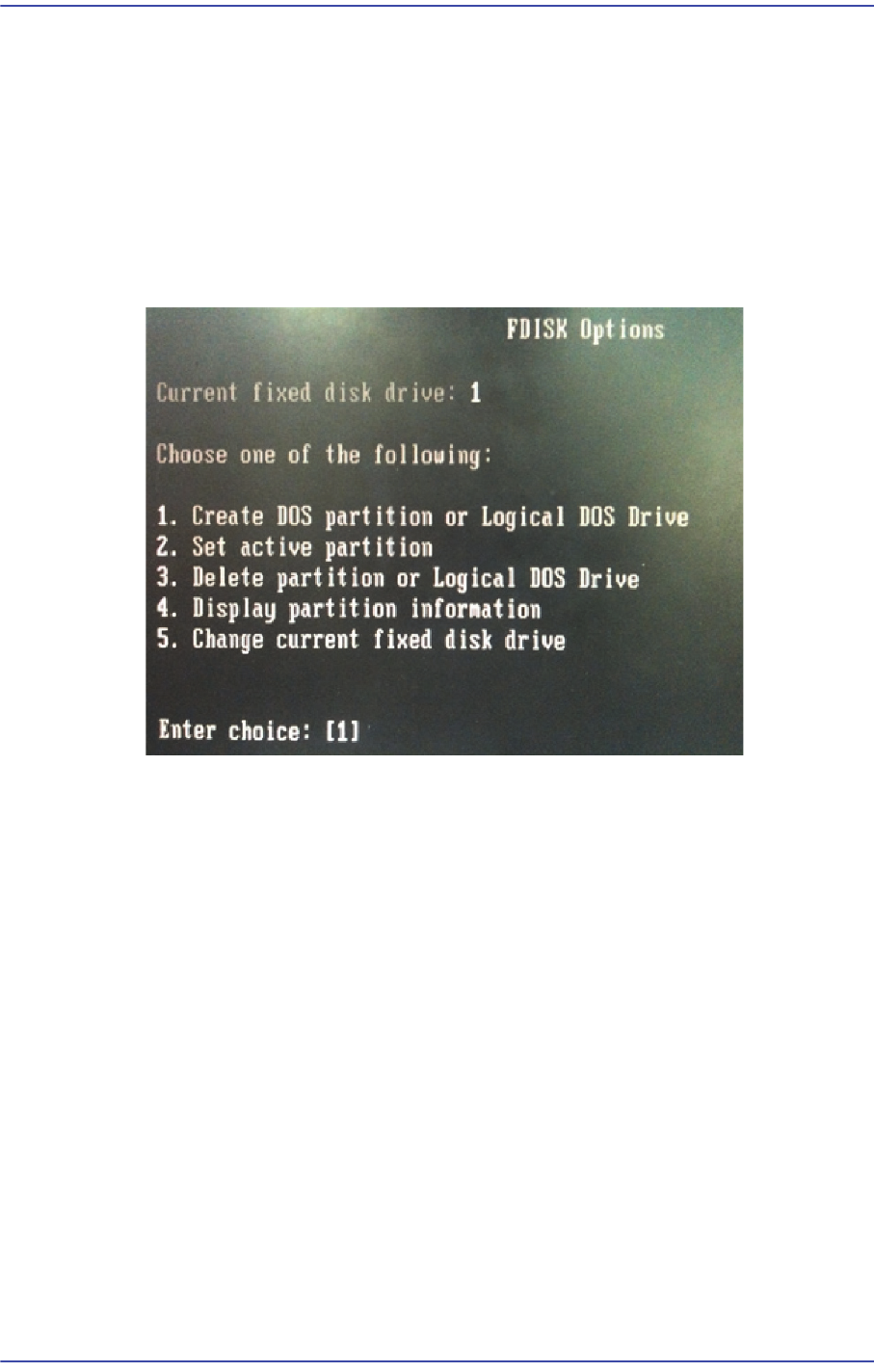

3) Select No. 1 ‘Create DOS partition or Logical DOS Drive’ in the FDISK menu.
