6-12 Fast & Flexible Chip Shooter DECAN F2 Service Manual 3) Replace the belt with a new one. Ref The Part number of to replace the Belt J66021007A. 4) During assembly , please a ssemble it in mind the next.

6-11

Conveyor

Ref Assemble the belt referring to the following.

Tension: 22 ±2.5 Hz

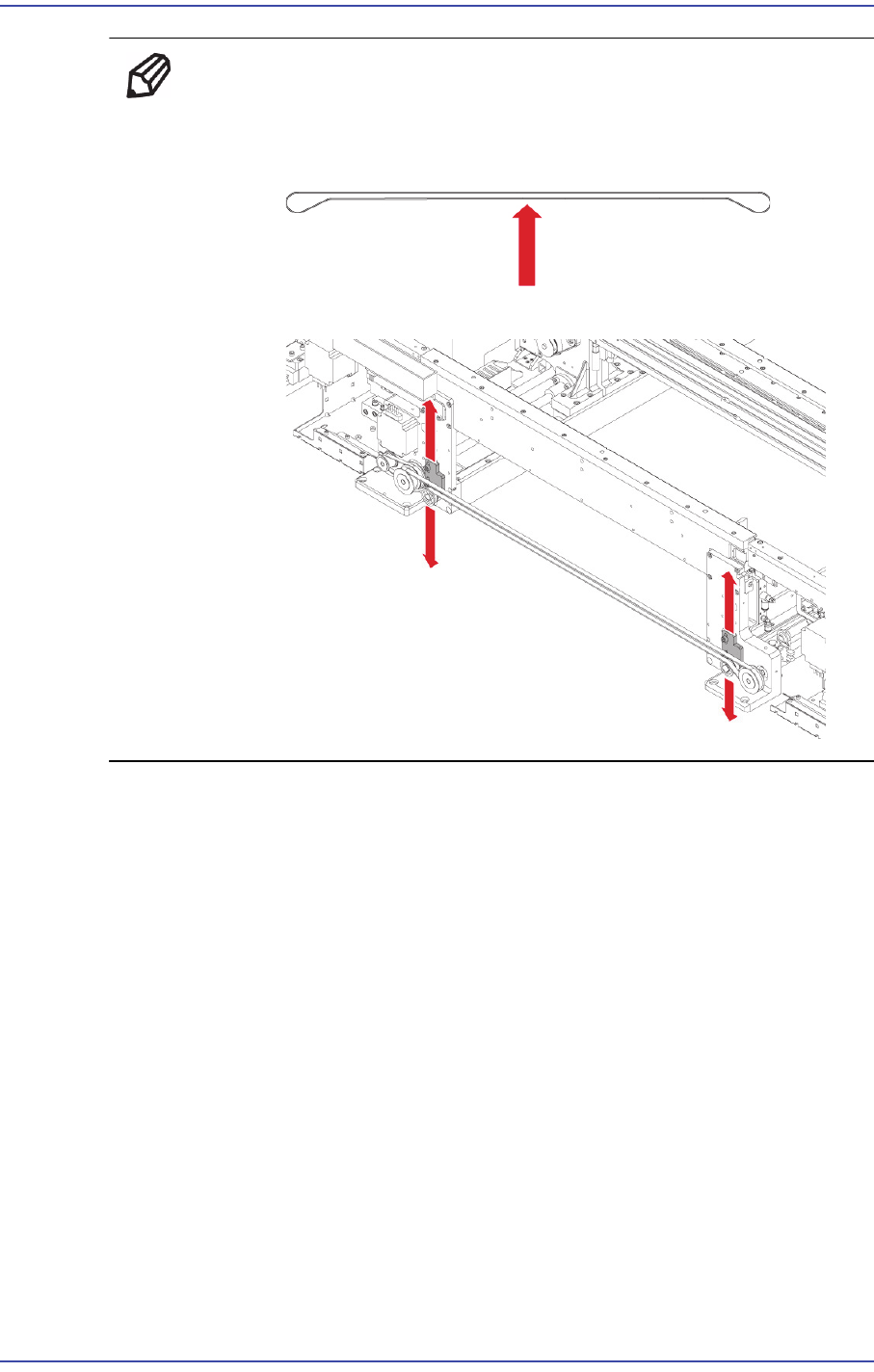

Tension Measurement location:

Move tension Bracket up and down to adjust the tension.

6.2.7. PCB Power transmission Belt Replacement Procedure

1) Remove the Belt based on the "Work Zone PCB transfer Belt replacement procedure"

2) After loosening Tension Loosen slightly the bolts that secure the Motor, and remove

the Belt.

6-12

Fast & Flexible Chip Shooter DECAN F2 Service Manual

3) Replace the belt with a new one.

Ref The Part number of to replace the Belt J66021007A.

4) During assembly, please assemble it in mind the next.

6-13

Conveyor

Ref Tension: 350±20 Hz

Tension Measurement location:

You can adjust the Tension to move to the left and right Motor.
