5-37 Head 5) Remove th e cable co nnected to m otor . 6) Unscrew the fixing bo lts(2-M3*8) securing motor and remove it. 7) Unscrew the setscrew(2-M3*3) securing pulley and remove it.

5-36

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref The part number of the new short belt is MC05-000119.

The part number of the new long belt is MC05-000117.

6) When assembling, refer to the following.

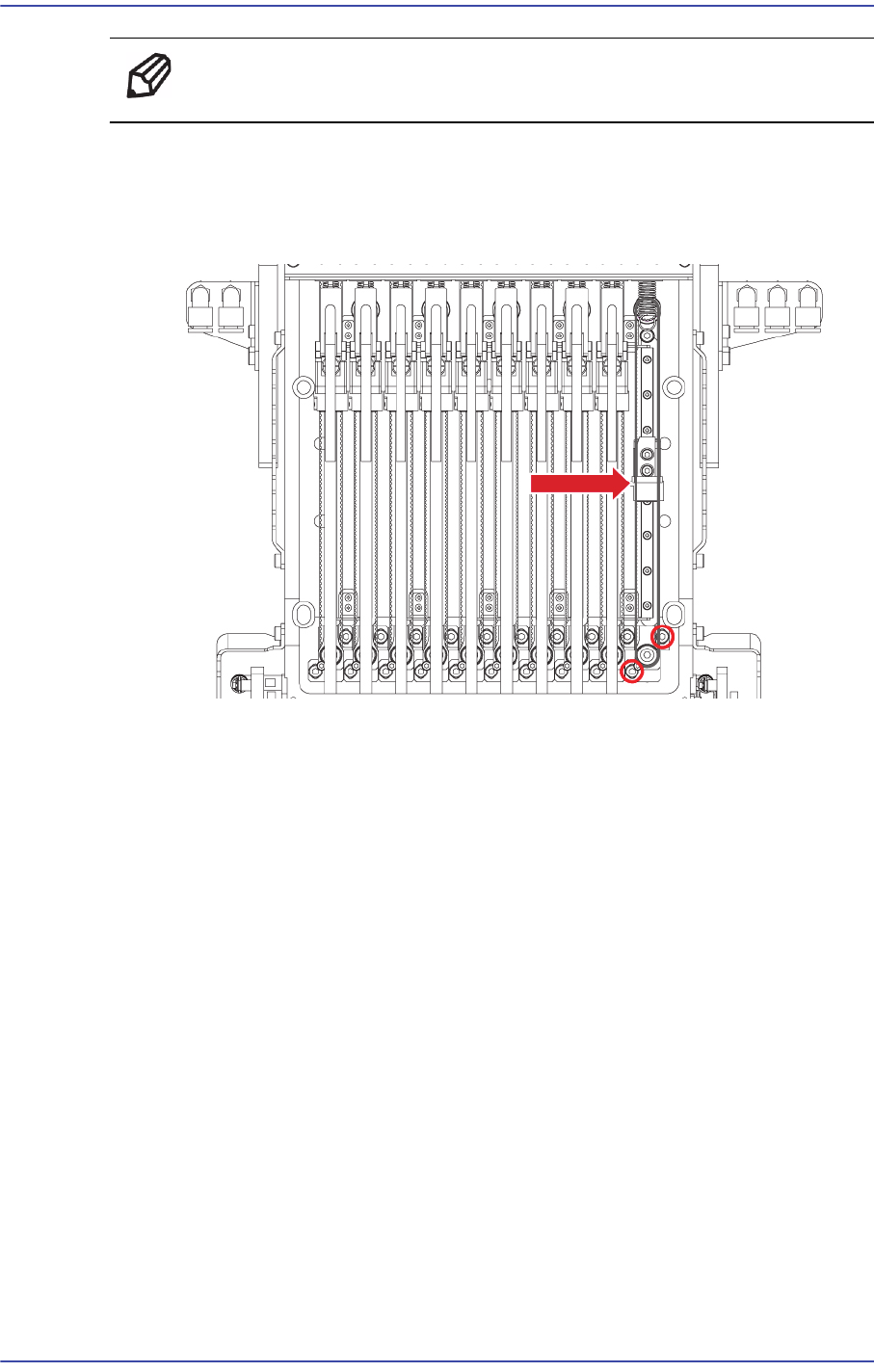

Belt Tension : 136~175Hz

Measurement Position :

7) Once the assembling is completed, turn on the main switch on the front of the machine

and boot the PC.

8) Perform the following calibrations.

Axis Home Calibration

Head Z Offset calibration

Total Time : 0.5Hour

5.9.3. Motor Replacement Procedure

1) Manipulate the teaching box to move the head module to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Remove the spindle at the location where the spindle is replaced referring to the

Spindle Replacement Procedure.

4) Unscrew the fixing bolts(2-M2*4) securing belt clamp and remove it.

5-37

Head

5) Remove the cable connected to motor.

6) Unscrew the fixing bolts(2-M3*8) securing motor and remove it.

7) Unscrew the setscrew(2-M3*3) securing pulley and remove it.

5-38

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref The part number of the new motor is J31081047A.

8) When assembling, refer to the following.

Belt Tension : 136~175Hz

Measurement Position :

9) Once the assembling is completed, turn on the main switch on the front of the machine

and boot the PC.
