18-46
Fast & Flexible Chip Shooter DECAN F2 Service Manual
Select the camera to set light value.
<Light…> button
Set the light value for the selected camera.
18.3.10.1. Fiducial Camera Offset Calibration
Measure the offset between the center of the fiducial camera and the first head (Head 1,
Head7) of each gantry.
This offset measurement must be completed to be able to use the Auto Nozzle Change
function for calibrations that follow. This process is performed only in the Manual Mode.
In order to perform calibration of Fly-Camera Scale Calibration, first check if the
calibration tool is placed on the calibration tool position of the front ANC.
The following is the procedure to calibrate the Fid Cam Offset of the head;
1. If the <8. Camera Offset> button is clicked, the message “First, We must Put all
Nozzles From Heads on Manually.
To Move Down Z Axis, Click [Next]” appears in the message box. Click the <Next>
button to move down the Z axis of the head in order to remove all nozzles inserted in
the nozzle-holder manually.
2. Then, after the head assembly moves to the designated position, move all Z-axes
down. At this time, remove all inserted nozzles manually.
3. Then the message “Next Attach the Calibration Tool to Head 1. Click [Next] for
Moving Down Head. After Moving, Attach the Tool to head Manually” appears. Click
the <Next> button after inserting the calibration tool in the nozzle-holder of Head #1
manually.
4. The message “Move To Center Position Of Calibration Tool. To Move, Click[Next]”
appears in the message window.
Click the <Next> button to move the fiducial camera to the calibration tool position on
the top surface of the ANC. At this time, adjust the position of the calibration tool so
that the fiducial mark at the calibration tool is on the center of the cross hair of the
SMVision window.
18-47
Machine Calibration

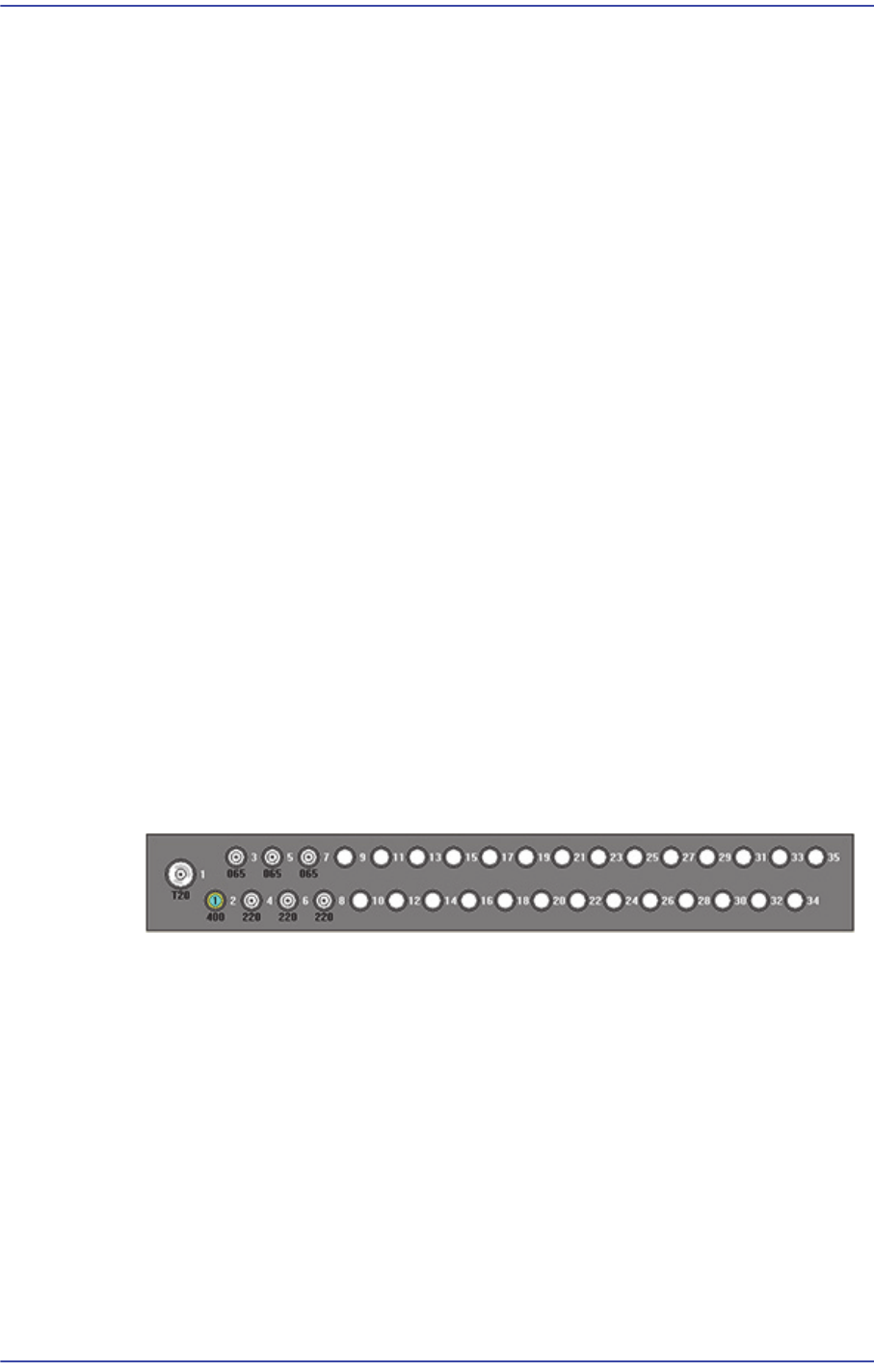

Memo Place the calibration tool at the calibration tool position on the ANC
by referring to the following figure.
5. Then the message “Calibration is Prepared. To Calibrate, Click [Next]” appears in the
message window. At this time, click the <Light…> button and adjust the brightness of
the light in the ‘Light Control’ dialog box so that the fiducial mark on the calibration
tool that is seen in the ‘SMVision’ window can be seen clearly. Then click the <Next>
button.
6. The calibration is performed automatically. If it is completed, the calibration result is
displayed as shown in the following figure. Click the <Update> button to apply the
new calibration value.
18-48
Fast & Flexible Chip Shooter DECAN F2 Service Manual
7. If the calibration procedure is completed properly, the result as shown in the following
figure is displayed and then the message, “Next, Remove the Calibration Nozzle from
Head1. Click [Next] for Moving Down Head. After Moving, Remove the Nozzle
Manually.”
Click the <Next> button to remove the nozzle inserted into the nozzle holder of Head
1 manually. Then remove the calibration tool on the ANC.
The measurement result can be confirmed in the Head Offset dialog box.
Memo The reference values for the calibration of the Fiducial Camera
Offset(FOV 12)is as follows.
Gantry1
