DECAN_F2_Service(Eng_Ver1).pdf - 第261页
12-11 Motor Driver 7) Click the ‘Parameter List’ tab. 8) Change the No. 20 of Classification 9 to ‘2’.
12-10
Fast & Flexible Chip Shooter DECAN F2 Service Manual

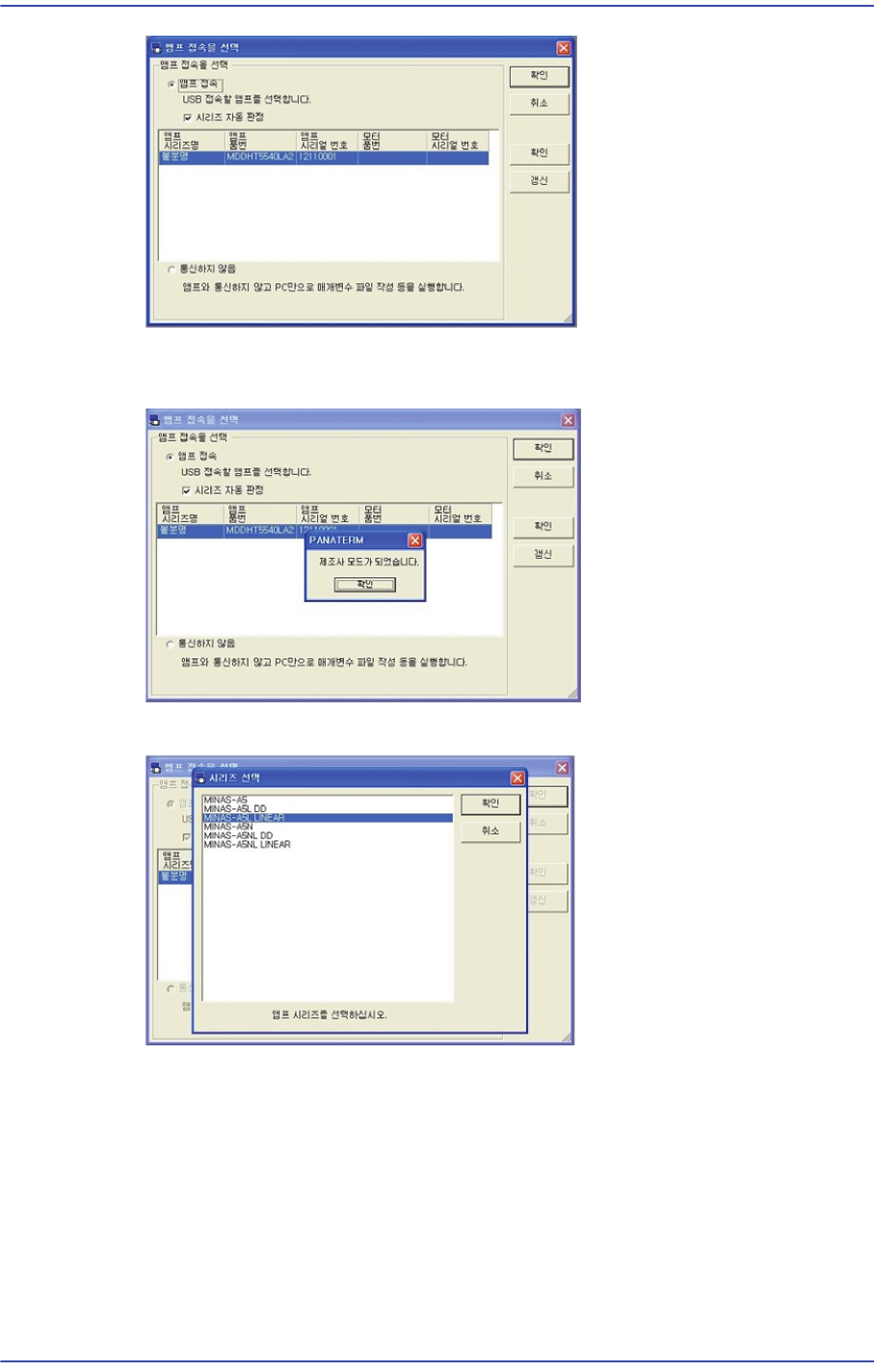

4) In order to connect the AMP in the manufacturer mode, enter the password (3470448)
in the current screen.
5) Select the Series.

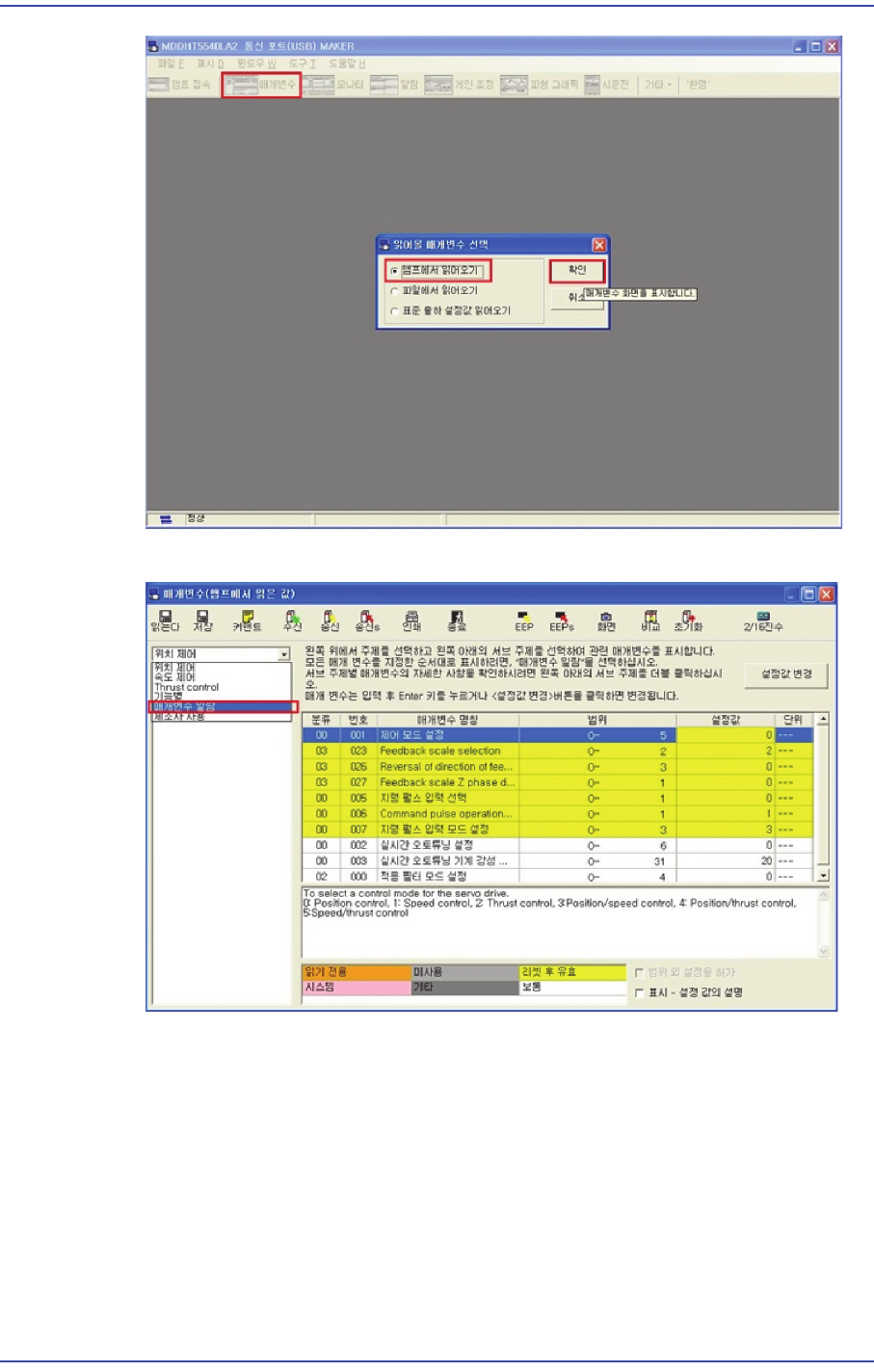

6) 'Click ‘Parameter'->'Read from AMP'->'OK' in order.
12-11
Motor Driver

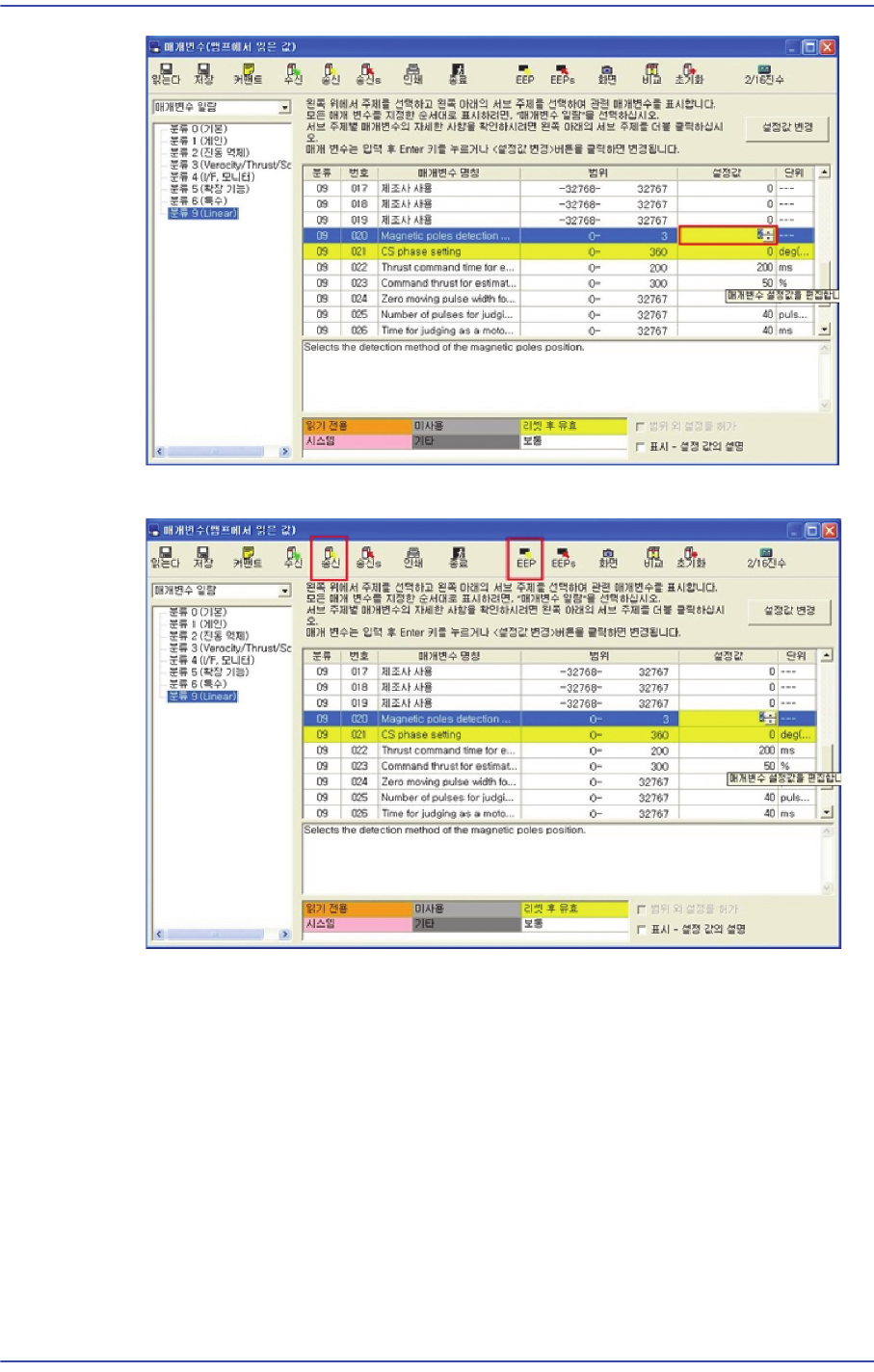

7) Click the ‘Parameter List’ tab.
8) Change the No. 20 of Classification 9 to ‘2’.
12-12
Fast & Flexible Chip Shooter DECAN F2 Service Manual
9) Press ‘Trans’ and EEP in order and check the Popup window.
