9-8 Fast & Flexible Chip Shooter DECAN F2 Service Manual 4) Remove the Cable tha t is connected to the F AN. 5) Unscrew the fixing bolts (4 -M4*30)securing the F AN using a wrench and remove it. 6) Assemble in the Y …

9-7

Y Frame Duct

9.2. FAN

9.2.1. Required Tools

 Crosshead (Phillips) screwdriver and flathead screwdriver

 T Wrench or Hex Wrench

 Nipper (Remove the Cable Tie)

9.2.2. FAN Replacement Procedure

1) Close the PC as usual and turn off the main switch at the front of the machine

2) Turn off the main power supply to the machine

Warning Before servicing the machine, turn off the power switch

located at the front bottom as well as the main circuit

breaker at the rear bottom of the machine. Otherwise,

serious personal injury may occur. Perform servicing with

the power supply to the machine cut off without fail.

Warning Be sure to wear anti-electrostatic gloves when servicing the

machine.

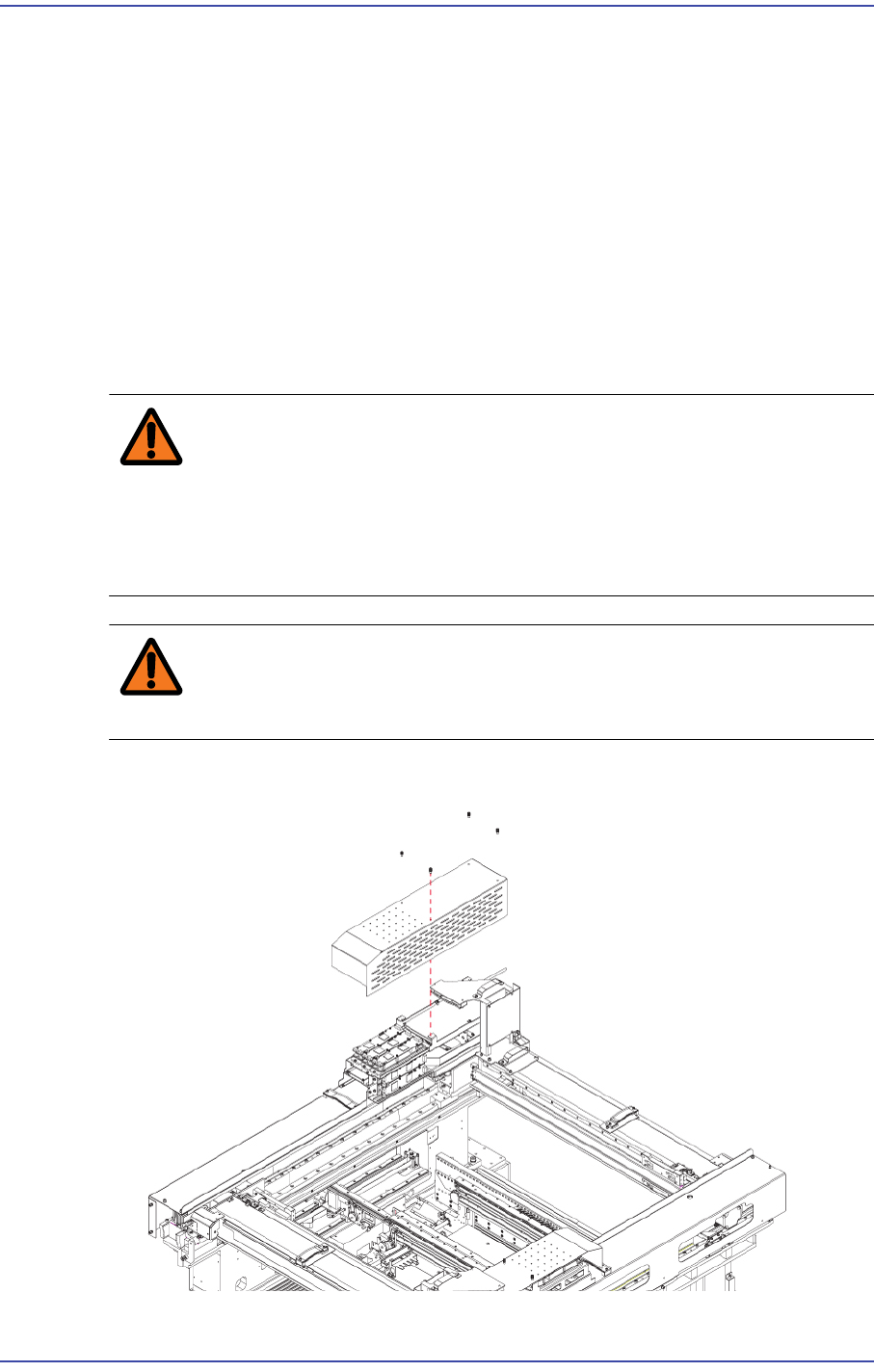

3) Remove the Cover Loosen the Fastener to secure the Cover Driver Y.

9-8

Fast & Flexible Chip Shooter DECAN F2 Service Manual

4) Remove the Cable that is connected to the FAN.

5) Unscrew the fixing bolts (4-M4*30)securing the FAN using a wrench and remove it.

6) Assemble in the Y Fame Duct a new Board.

Ref The part number of the new FAN is CS02-000006.

9-9

Y Frame Duct

9.3. Connect the Cable

9.3.1. Cable connecting method and cautions

1) Tighten the grounding cable at the left and right of Panel Y using fixing bolts (M4*8).

Ref When assembling the cable, it may come out. Therefore, exercise care

when assembling it.

Install the connector at the designated location use designated screw

and washer.

After assembling the bracket and tightening the fixing bolts, perform

‘I marking'.

2) Secure the cables with cable ties as shown in the following figure.
