13-40 Fast & Flexible Chip Shooter DECAN F2 Service Manual 6) Changing All Check Items to Check Completed Status (“OK”) All check items can be changed to the check completed status simultaneously . This can be perfor…

13-39

Software

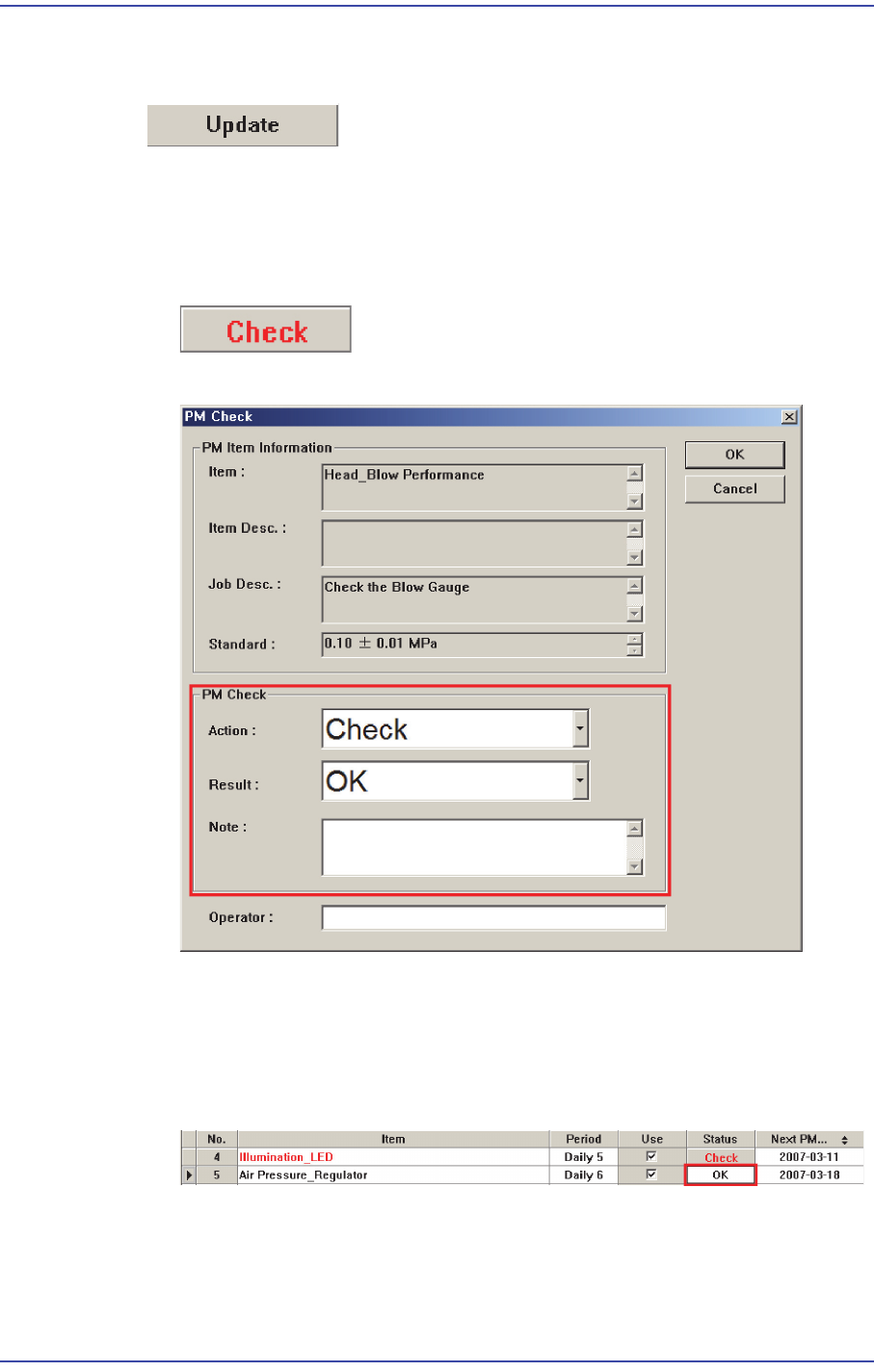

If the contents of the DB are different from those displayed in the main screen, press

the <Update> button to update the screen output.

5) Recording Check Results

Record and store the check results in the “PM Check”. This can be performed in the

following manner.

Click <Check> button

Execute ‘PM Check’ Dialog Box

Record the measures taken during check (action, result and note) and click the <OK>

button.

For the items for which actions were taken in the <PM Check> group, the

<Status> column is changed from “Check” to “OK” and the date is updated to the

PM Check date in the <Next PM> column as shown below.

The recorded actions can be checked from the History Screen.

13-40

Fast & Flexible Chip Shooter DECAN F2 Service Manual

6) Changing All Check Items to Check Completed Status (“OK”)

All check items can be changed to the check completed status simultaneously. This

can be performed in the following manner.

Click the <Reset All Items> button.

When the PM Manager dialog box appears, click the <Yes> button.

Once set as above, all check items in the Main Screen are changed to the check

completed status (“OK”), and the number of items to be inspected are indicated as

“0”.

13-41

Software

The history of all changed items are recorded in the History Screen, and “Reset all

items” is indicated in the ‘Note’ column.

7) Outputting Check Items in File Format

All check items can be outputted in text file format. This can be performed in the

following manner.

Click the <Print to File> button.

Enter the file name and designate the file path and then click <Save>.
