13-37 Software 13.2.3. Main Screen configuration 1) T oday’ s Check Item V iew For the items to be inspected today , the <Check> button is indi cated in red in the <Status> column. For the items that do n…
13-36
Fast & Flexible Chip Shooter DECAN F2 Service Manual

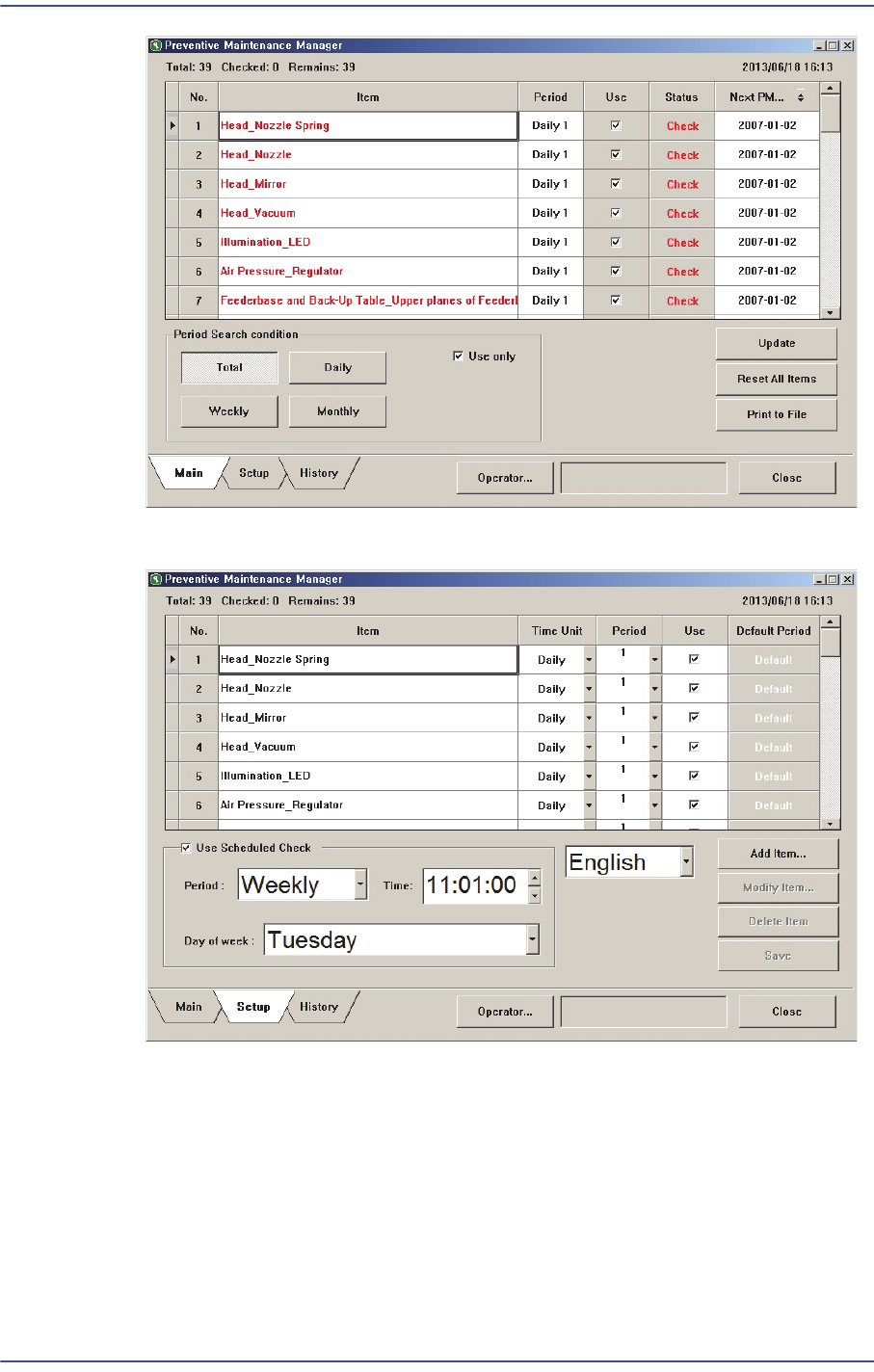

Setup Screen
History Screen
13-37
Software
13.2.3. Main Screen configuration
1) Today’s Check Item View
For the items to be inspected today, the <Check> button is indicated in red in the
<Status> column.
For the items that do not need to be inspected today, the <OK> button is indicated in
black in the <Status> column.
The number of items to be inspected today is indicated on the “Remains”.
2) In the main screen, the check items of the machine can be checked by check periods
(daily, weekly and monthly).
Viewing Check Items by Check Period
Viewing All Daily, Weekly and Monthly Check Items If the <Total> option button
from the <Period Search Condition> group is clicked, all daily, weekly and
monthly check items can be checked.
13-38
Fast & Flexible Chip Shooter DECAN F2 Service Manual
Viewing Daily Check Items
If the <Daily> option button from the <Period Search Condition> group is clicked,
daily check items can be checked.
Viewing Weekly Check Items
If the <Weekly> option button from the <Period Search Condition> group is
clicked, weekly check items can be checked.
Viewing Monthly Check Items
If the <Monthly> option button from the <Period Search Condition> group is
clicked, monthly check items can be checked.
3) Viewing Only Items in Use
After the check items are registered, setup can be performed so that they are not to be
used.
If the <Use only> option button from the <Period Search Condition> group is clicked,
only the check items in use can be checked.
4) Updating Screens
