11-14 Fast & Flexible Chip Shooter DECAN F2 Service Manual 11.3. Main Manifold Sub 11.3.1. Configurati on of the Manifold 1: J67121002A / PLUG / PL UG KQ2P-10 / 1EA 2: HP06-000226 / FITTING / KQ2R10-12 / 1EA 3: HP09-…

11-13

Vacuum

11.2.4. How to check the abnormal state of the vacuum pump

Start to check the abnormal state of the vacuum pump beginning with the checking of the

“Minimum Vacuum Reach Pressure”.

1) The minimum vacuum reach pressure (state of no leakage) must be less than -92k.

 If there is a temporary pressure gauge, plug the discharge end of the vacuum pump

and check the pressure measured by the pressure gauge.

 If there is no temporary pressure gauge, leave the Vacuum turned off in the MMI

and check the Vacuum Analog Gauge at the rear of the machine.

2) If the minimum vacuum reach pressure has a problem, check the status of the pump

filter for contamination.

 Even though the possibility of filter contamination is very low, check whether dust

and foreign materials are attached around the filter and remove them.

3) Even though the possibility of filter contamination is very low, check whether dust and

foreign materials are attached around the filter and remove them.

 The minimum vacuum reach pressure gradually decreases depending on the run-

time.

11-14

Fast & Flexible Chip Shooter DECAN F2 Service Manual

11.3. Main Manifold Sub

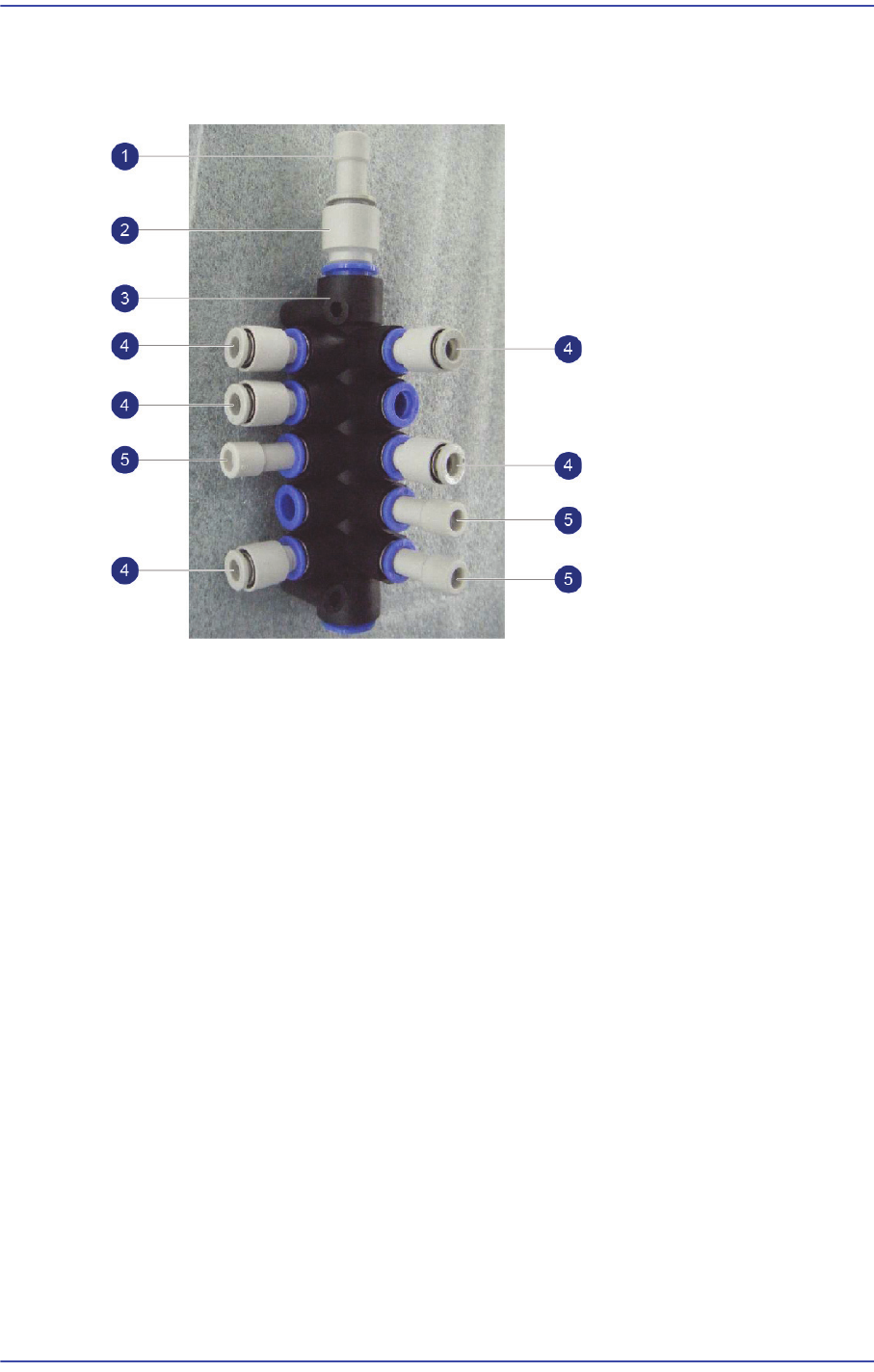

11.3.1. Configuration of the Manifold

1: J67121002A / PLUG / PLUG KQ2P-10 / 1EA

2: HP06-000226 / FITTING / KQ2R10-12 / 1EA

3: HP09-000007 / MANIFOLD / KM11-08-12-10 / 1EA

4: J6711183A / STRAIGHT FITTING / KQ2R06-08 / 5EA

5: J67121009A / PLUG / PLUG KQ2P-08 / 3EA

11-15

Vacuum

11.4. Air Front Panel

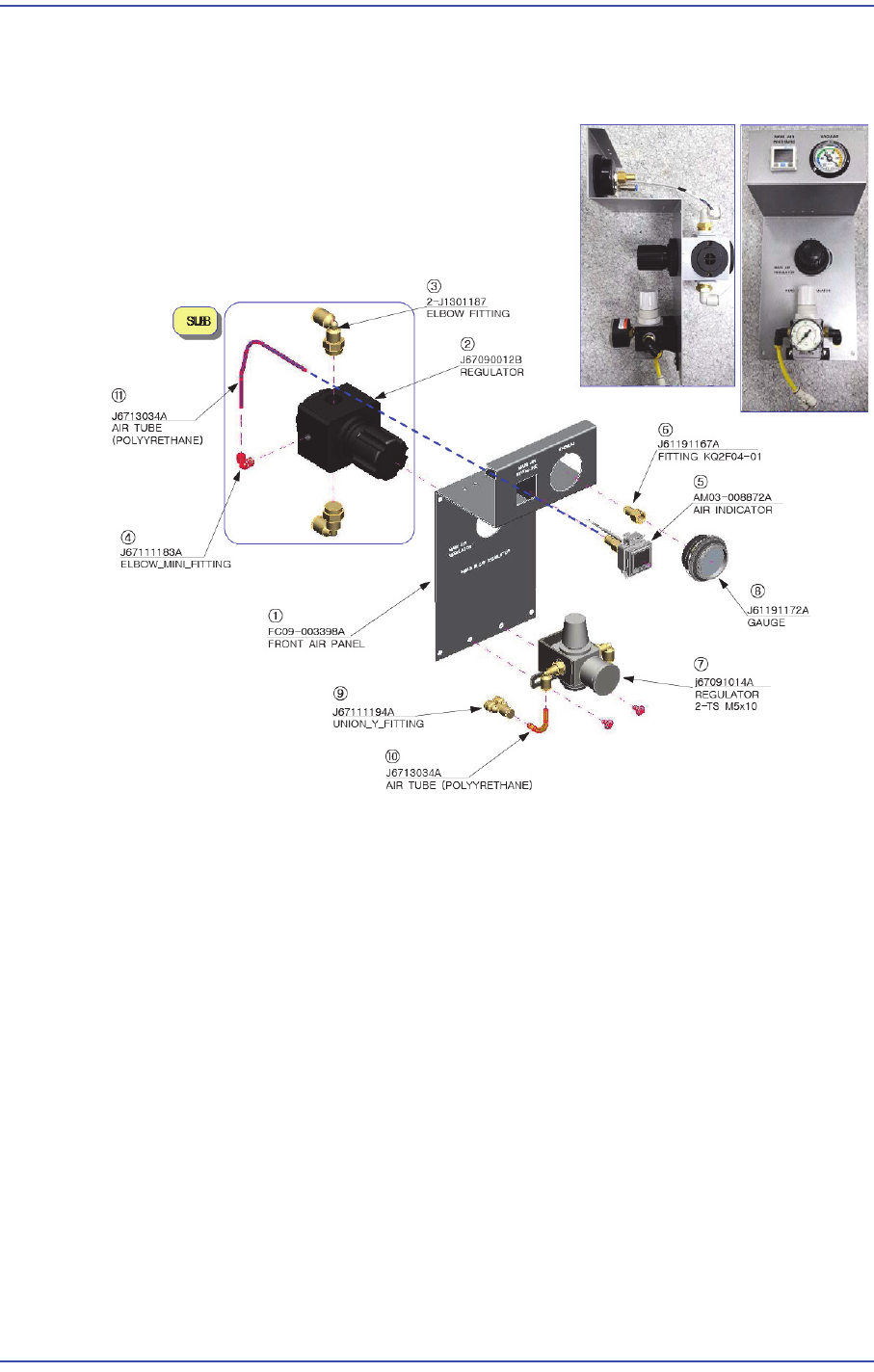

11.4.1. Configuration of the Air Front Panel

1: FC09-003398A / FRONT AIR PANEL / 1EA

2: J67090012B / REGULATOR / 1EA

3: J1301187 / ELBOW FITTING / 2EA

4: J6711183A / ELBOW_MINI_FITTING / 1EA

5: AM03-008872A / AIR INDICATOR CABLE ASSY /1EA

6: J61191167A / FITTING / 1EA

7: J67091014A / REGULATOR / 1EA

8: J61191172A / GAUGE / 1EA

9: J67111194A / UNION_Y_FITTING / 1EA

10: J6713016A / AIR TUBE / 1EA

11: J6713034A / AIR TUBE / 1EA
