14-9

Board

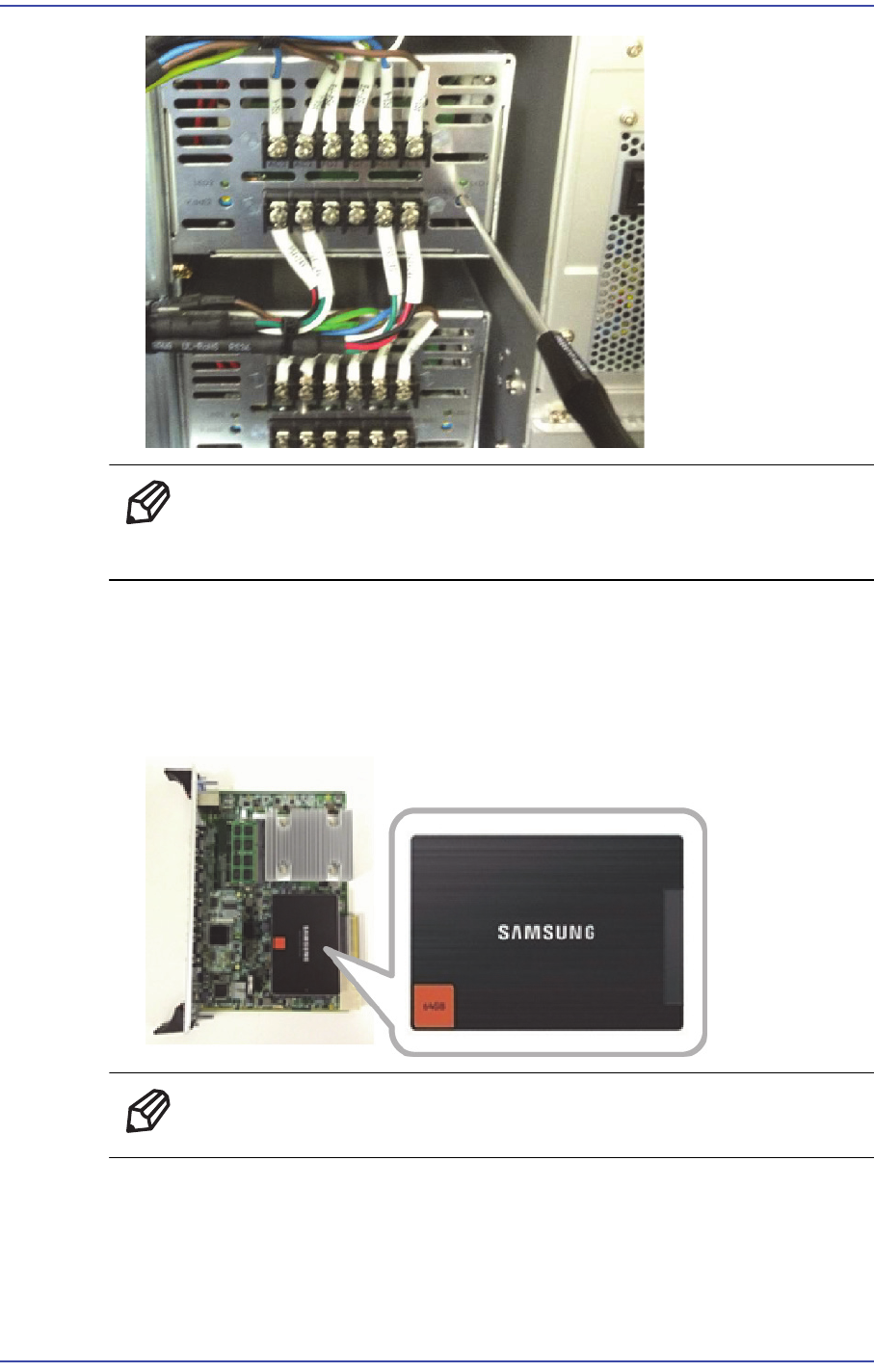

Ref When the power supply is short-circuited, the green LED blinks.

Therefore, turn the power supply off and check the circuit.

14.1.6. SSD Replacement Procedure

1) Remove the mother board among CPU boards.

2) Remove and replace the SSD of the mother board.

Ref The part number of the new SSD is CD05-000050.

3) Assemble it in the reverse order of disassembling.

14-10

Fast & Flexible Chip Shooter DECAN F2 Service Manual

14.2. Head

14.2.1. Required Tools

 Crosshead (Phillips) screwdriver and flathead screwdriver

 T Wrench or Hex Wrench

14.2.2. Head IF Board Replacement Procedure

1) Close the PC as usual and turn off the main switch at the front of the machine.

2) Turn off the main power supply to the machine.

Warning Before servicing the machine, turn off the power switch

located at the front bottom as well as the main circuit

breaker at the rear bottom of the machine. Otherwise,

serious personal injury may occur. Perform servicing with

the power supply to the machine cut off without fail.

Warning Be sure to wear anti-electrostatic gloves when servicing the

machine.

3) Move the head module forward.

4) Unscrew the fixing bolts securing the head top cover and remove it.

14-11

Board

5) Remove the cable connected to the board.

6) Unscrew the fixing bolts(4-M3*6) securing the Board using a wrench and remove it.

Ref The part number of the new Board is AM03-005337A.

7) When assembling the board, connect the cables referring to the following figure.
