14-2 Fast & Flexible Chip Shooter DECAN F2 Service Manual 4) Disconnect the cables of the board to be replaced. 5) Unscrew the fixing bolts(4-M6*10) securi ng the CPCI Rack using a wrench and remove it. 6) In order t…
14-1
Board
Chapter14. Board
14.1. PC Rack
14.1.1. Required Tools
Crosshead (Phillips) screwdriver and flathead screwdriver
T Wrench or Hex Wrench
14.1.2. PC Rack Replacement Procedure
1) Close the PC as usual and turn off the main switch at the front of the machine.
2) Turn off the main power supply to the machine.
Warning Before servicing the machine, turn off the power switch
located at the front bottom as well as the main circuit
breaker at the rear bottom of the machine. Otherwise,
serious personal injury may occur. Perform servicing with
the power supply to the machine cut off without fail.
Warning Be sure to wear anti-electrostatic gloves when servicing the
machine.

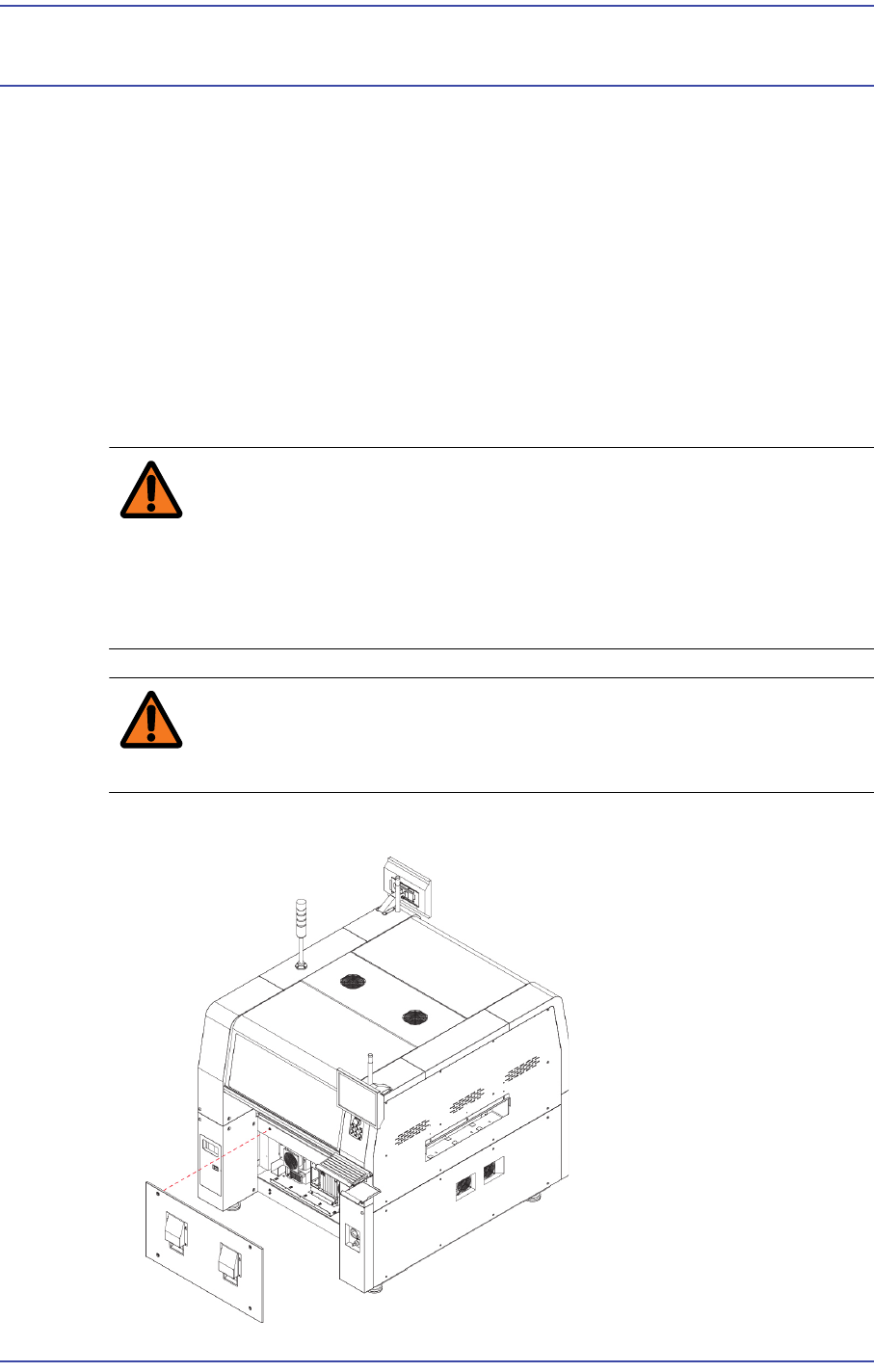

3) Open the front cover of the machine.
14-2
Fast & Flexible Chip Shooter DECAN F2 Service Manual

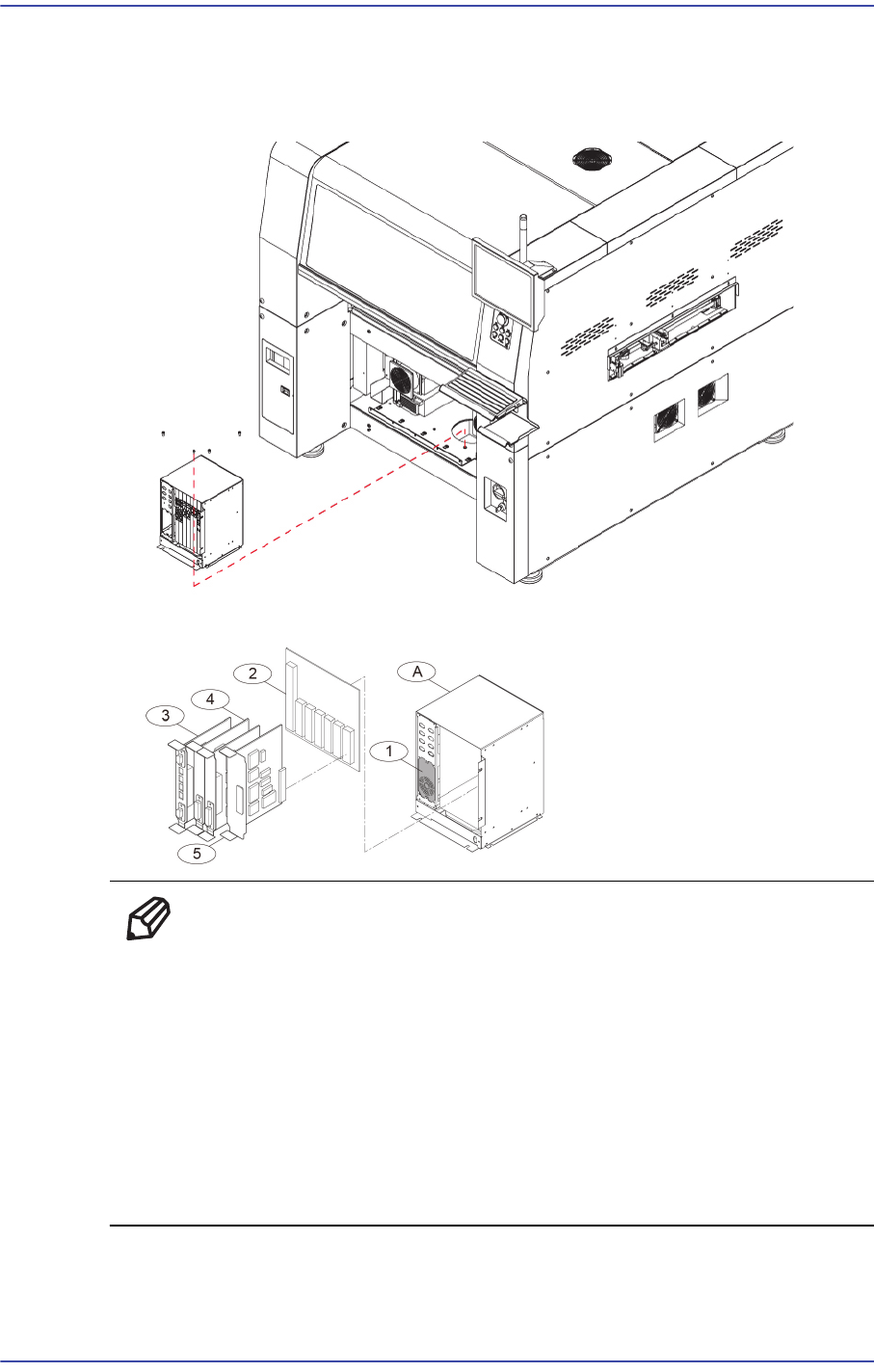

4) Disconnect the cables of the board to be replaced.
5) Unscrew the fixing bolts(4-M6*10) securing the CPCI Rack using a wrench and
remove it.
6) In order to replace the board, remove the PC rack cover using a screwdriver.
Ref A: The part number of the PC Rack Assy is AM03-011503A.
1: The part number of the Power Supply is CD05-000042.
2: The part number of the Back Plane is EP10-001534A.
3: The part number of the Mother Board is CD05-000042.
4: The part number of the Processor Board is EP06-000338.
5: The part number of the Feeder Master Board is J9060364A.
5: The part number of the Board CPCI To PCI Adapter Board is
AM03-000138.
14-3
Board
14.1.3. Components of PC Rack
14.1.3.1. Parts list of PC Rack
1) AM03-010651A(ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT)
2) AM03-000138(ASSY,BOARD-CPCI TO PCI ADAPTER BOARD)
No Part No. Switch Name Qty
1 AM03-010651A ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT 1
2 AM03-000138 ASSY,BOARD-CPCI TO PCI ADAPTER BOARD 1
3 J9060364A IT FEEDER MASTER BOARD ASSY 1
4 - Assemble the No. 1 and No. 2 boards. -
5 EP06-000338 PROCESSOR BOARD-NT-A8 2
6 CD05-000042 MOTHERBOARD,CPU-CPCI-6625-
i7;CPCI,HM65
1
7 CD05-000050 MODULE,MEMORY-MZ-7TD120Z;SSD,540BPS 1
8 EP10-001330 MEMORY-DDR3 10600 -
