Fast & Flexible Chip Shooter DECAN F2 Service Manual

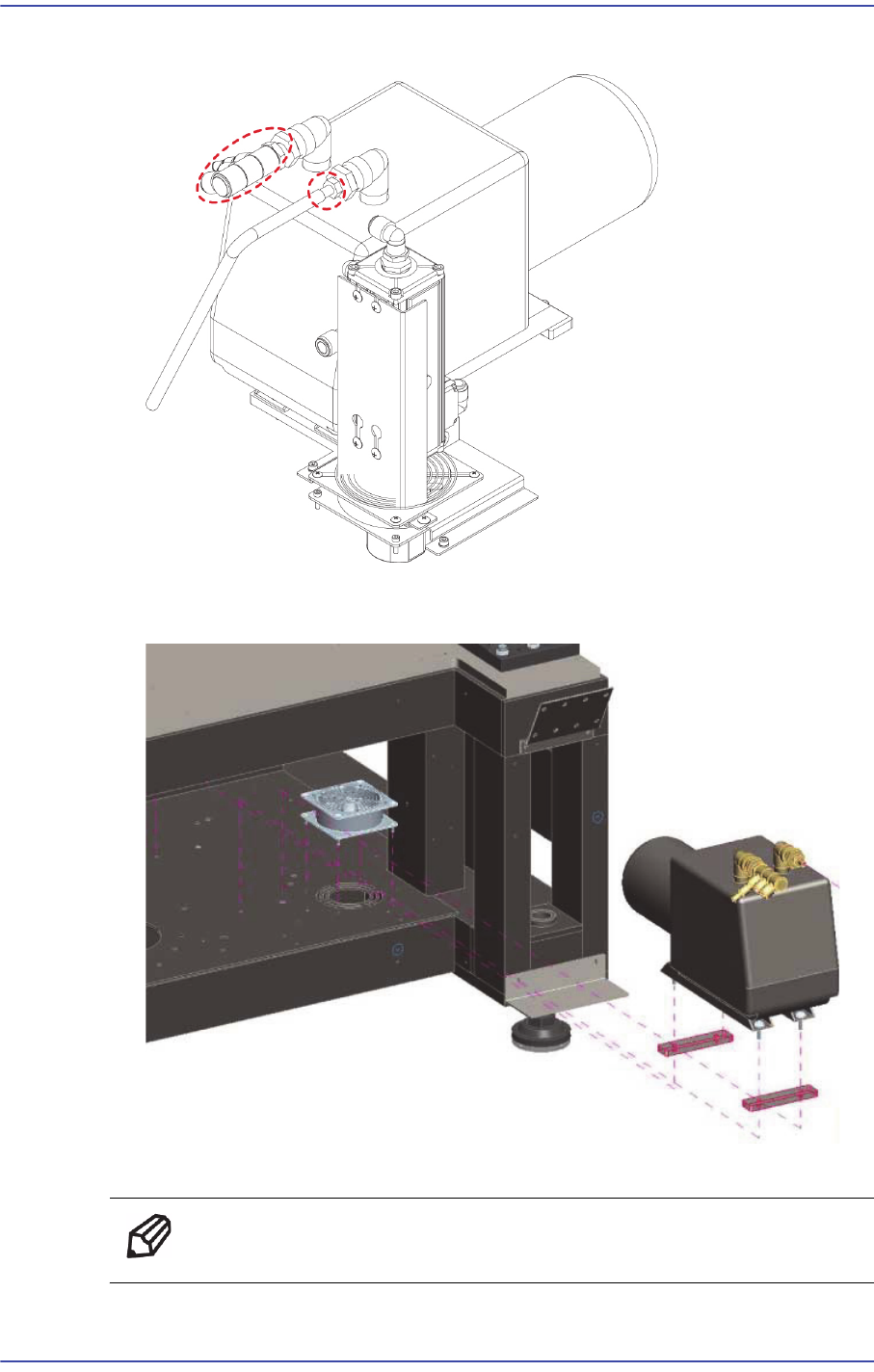

3) Remove the tube connected to the fitting.
4) Unscrew the fixing bolts (4 -M6*30) securing the Vacuum Pump using a hex wrench
to remove the vacuum pump.
5) Assemble in the base frame a new vacuum pump.
Ref The part number of the new Board is HP11-000193.
11-9
Vacuum
6) During assembly, please note the following points.
Remove the wooden plates and packing materials in the box.
Remove the front cover. (Keep the screws since they are reused.)
11-10
Fast & Flexible Chip Shooter DECAN F2 Service Manual
Remove the cover of the distribution unit.

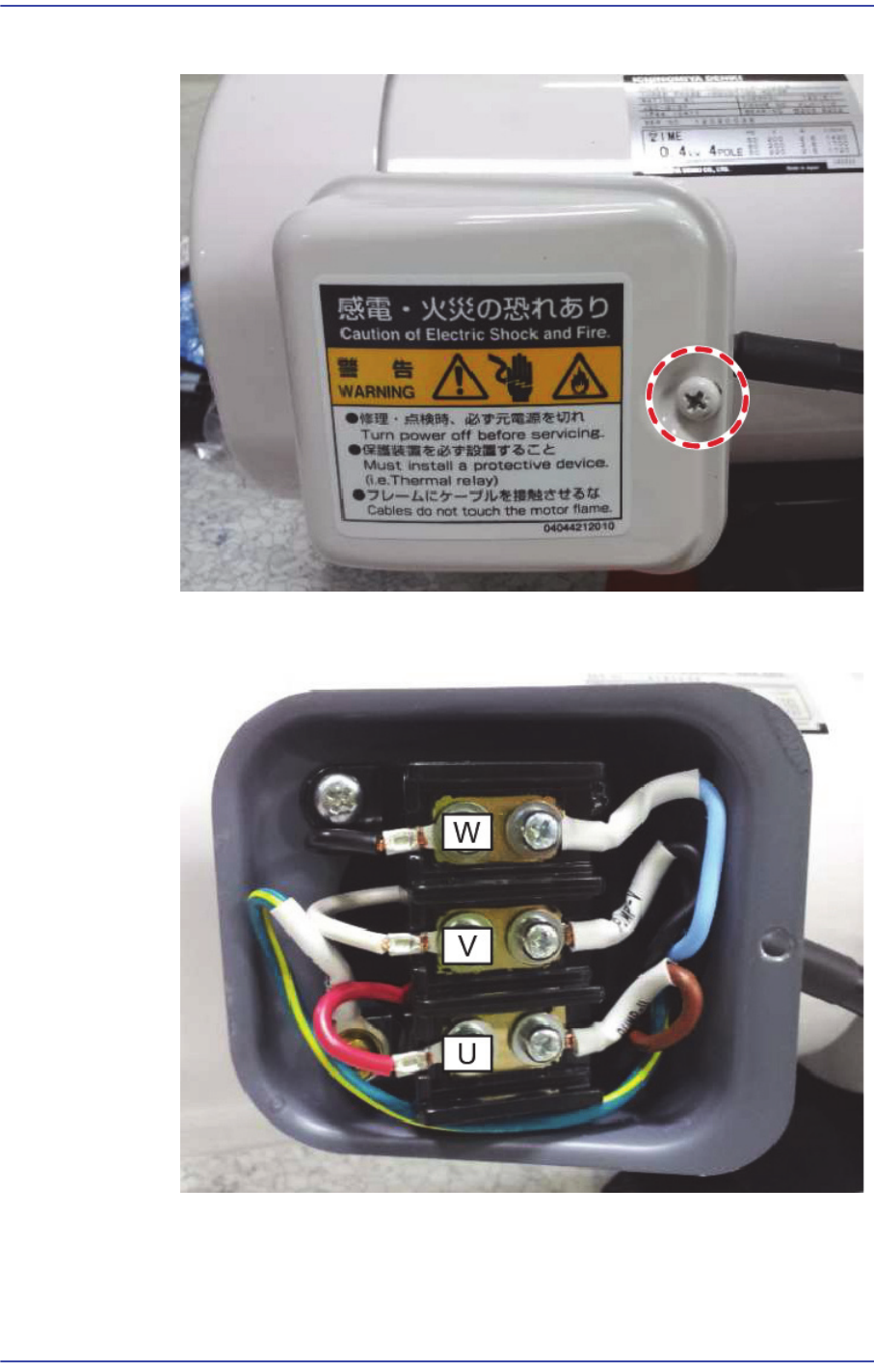

Check the U, V and W phases. (Exercise care to ensure that the U and W phase are
not changed.)
