4-1 X Frame Chapter4. X Frame 4.1. Motor 4.1.1. Required Tools  T W rench (other tools supplied) or Hex W rench  T orque W rench  Dial Gage  Snap ring plier 4.1.2. Position of Motor 4.1.3. Motor Replacement Procedure…

4-1

X Frame

Chapter4. X Frame

4.1. Motor

4.1.1. Required Tools

 T Wrench (other tools supplied) or Hex Wrench

 Torque Wrench

 Dial Gage

 Snap ring plier

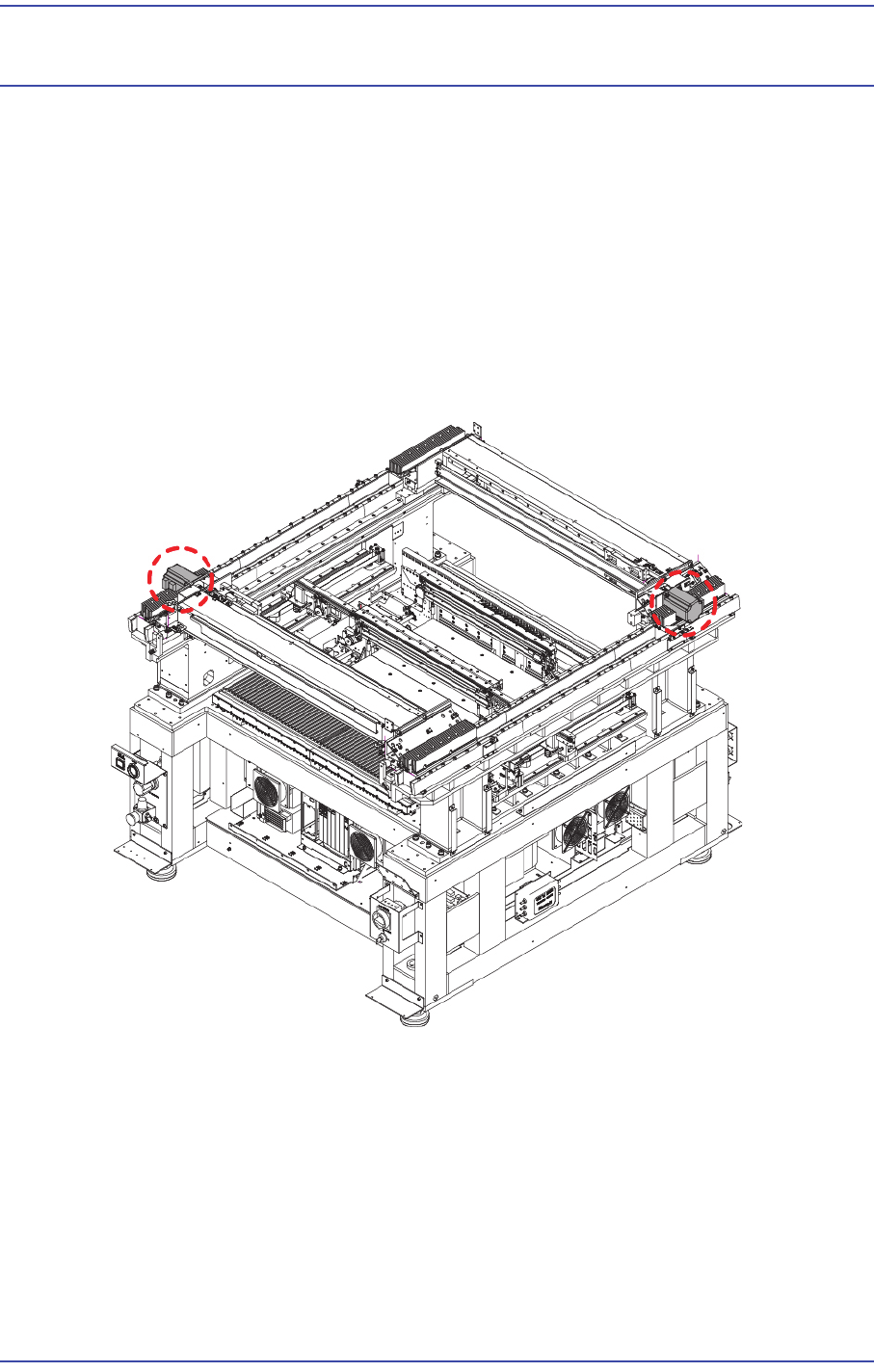

4.1.2. Position of Motor

4.1.3. Motor Replacement Procedure

1) Manipulate the teaching box to move the X Frame to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Remove the side cover of the motor to be removed.

4) Disconnect the motor power cable connector and encoder cable connector from the X-

axis motor.

5) Remove the set screws (No2) of the coupling that connects the X-axis motor and ball

4-2

Fast & Flexible Chip Shooter DECAN F2 Service Manual

screw.

Ref When replacing only the X-axis motor, remove only the set

screw(No2) near the motor and when replacing only the ball screw,

remove only the set screw(No1) near the ball screw.
