18-70 Fast & Flexible Chip Shooter DECAN F2 Service Manual the nozzle is inserted into each head manual ly . Click the <Next> button to move onto the next step. If calibration is performed without selecting eit…
18-69
Machine Calibration
manner as has done for Gantry 1.
The result value can be confirmed in the Camera dialog box in the System Setup
menu.
Memo The range of the reference values for the ‘fly-camera calibration’ is as
follows:.
FOV 16
ScaleX: 33.34~35.42 (m/pixel)
ScaleY: 33.34~35.42 (m/pixel)
FOV 16 (MEGA)
ScaleX: 15.39~16.35 (m/pixel)
ScaleY: 15.39~16.35 (m/pixel)
18.3.10.6. Fly Camera Offset Calibration
The following is the procedure to calibrate the offset of the fly Camera..In order to
perform ‘Fly-Camera Offset Calibration’, the ‘Fly-Camera Scale Calibration’ and ‘Head
Z-Offset Calibration’ must be performed first and the CN400 nozzle must be used.
The following is the procedure to calibrate the ‘Fly-Camera to Offset.
1. Click the <Nozzle Prepare> button and insert the CN400 nozzle into the No. 1 hole of
the ANC manually.
2. If the <11. Fly Camera Offset > is clicked after selecting the <Automatic Next> check
box, calibration is performed for the selected gantry automatically.
If calibration is performed after selecting the <No Real Motion [Manual]> check box,
18-70
Fast & Flexible Chip Shooter DECAN F2 Service Manual
the nozzle is inserted into each head manually. Click the <Next> button to move onto
the next step.
If calibration is performed without selecting either the <Automatic> check box or
<Manual> check box, the nozzle is changed automatically for the currently selected
nozzle. Click the <Next> button to move onto the next step.
If the <11. Fly Camera Offset> button is selected, the message, “First, We must Put all
Nozzles from Heads manually. To Move down Z Axis, Click [Next]” is displayed in
the message window. Then click the <Next> button to move down the Z-axis of the
head in order to manually remove all the nozzles installed on the head.
3. Then, after the head assembly moves to the designated position, move all Z-axes
down. At this time, remove all inserted nozzles manually.
4. Then the message “Next Attach the Calibration Tool to Head 1. Click [Next] for
Moving Down Head. After Moving, Attach the Calibration Nozzle to head Manually”
appears. Click the <Next> button after manually inserting the CN400 nozzle in the
nozzle holder of Head 1.
5. The message “Up to Align Height and Mirror Close, Click [Next].” Appears, Click
[Next] button.
6. The message “Up to Align Height and Mirror Close, Click [Next].” Appears, Click
[Next] button. Next, Head 1 moves up to the align height of the Fly Camera and the
mirror is closed. Then the message, “Calibration is Prepared. To Calibrate, Click

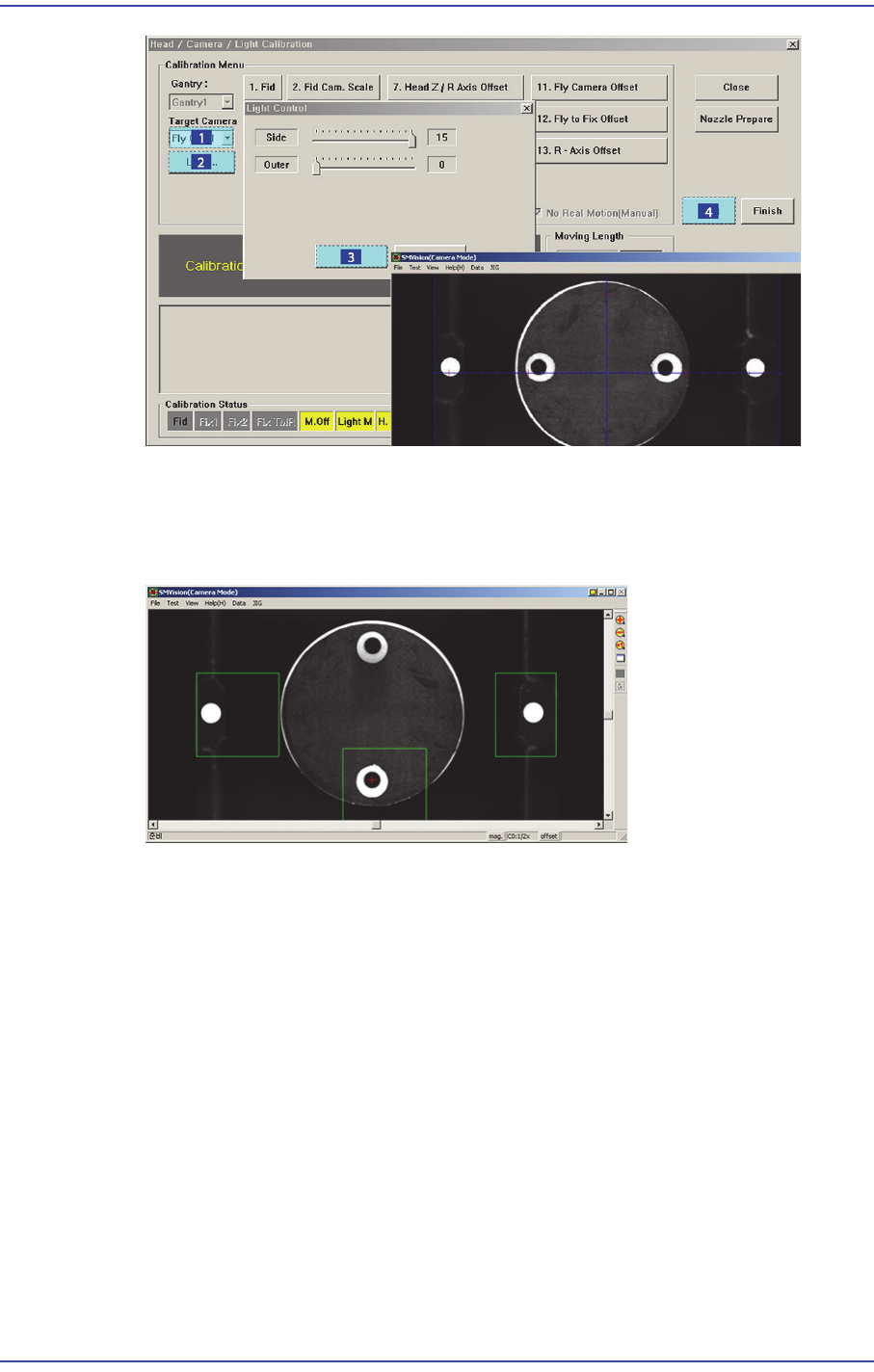

[Next]” is displayed in the message window. At this time select the ‘Fly1 Cam‘ in the
<Target Camera> combo box and in the ‘Light Control‘ dialog box, adjust the
brightness of the lighting so that the ‘Fiducial Mark’ on the calibration tool can be
clearly seen in the ‘SMVision‘ window. Then click the <Next> button.
18-71
Machine Calibration
7. In order to perform calibration, first recognize the reference fiducial mark of the head
and measure the R Offset of the fly camera. Then recognize the 2 fiducial marks on the
bottom surface of the calibration tool using the fiducial camera and measure the scale
of the fly camera.
8. If it is completed, Click the <Next> button.
9. Then the message “Next, Remove the Calibration Tool From Head 1. Click [Next] for
Moving Down Head. After Moving, Remove the Tool Manually” appears. Click the
<Next> button to remove the calibration nozzle from the nozzle-holder of Head #1
manually.
10. .From Head #2 to Head #6, perform calibration in the same manner as it was
performed for Head #1.If the calibration procedure is completed for all heads
normally, the result is displayed as shown in the following figure.
