13-35 Software 13.2. PM Manager The PM Manager is a management men u that is used for the mainte nanc e of the machine in the MMI (Man-Machine Interface), an applic ation prog ram for machine operation. Th e items to be …
13-34
Fast & Flexible Chip Shooter DECAN F2 Service Manual
[CAMERA] scaleXBitmap=34
609
Developer
scaleYBitmap=34
609
Developer
[RunTimeOkImgSav
e]
UseSaveOKImag
e=0
BeginTime=2007
1206
EndTime=200712
06
MaxFileNum=0
XFrom=0
XTo=0
YFrom=0
YTo=0
RFrom=0
RTo=0
OffsetPercent=55
RunTimeOkImgDi
r=D:\VisOKImage
\
Condition=OR
LongFileName=0
Classification
Item and Default
Value
Description
Remarks
13-35
Software
13.2. PM Manager
The PM Manager is a management menu that is used for the maintenance of the machine
in the MMI (Man-Machine Interface), an application program for machine operation. The
items to be inspected as well as check periods can be checked through the PM Manager,
and the machine can be managed more efficiently through the schedule check function.
(CP45, CP63, SM Series Machines)
13.2.1. Execution of PM Manager

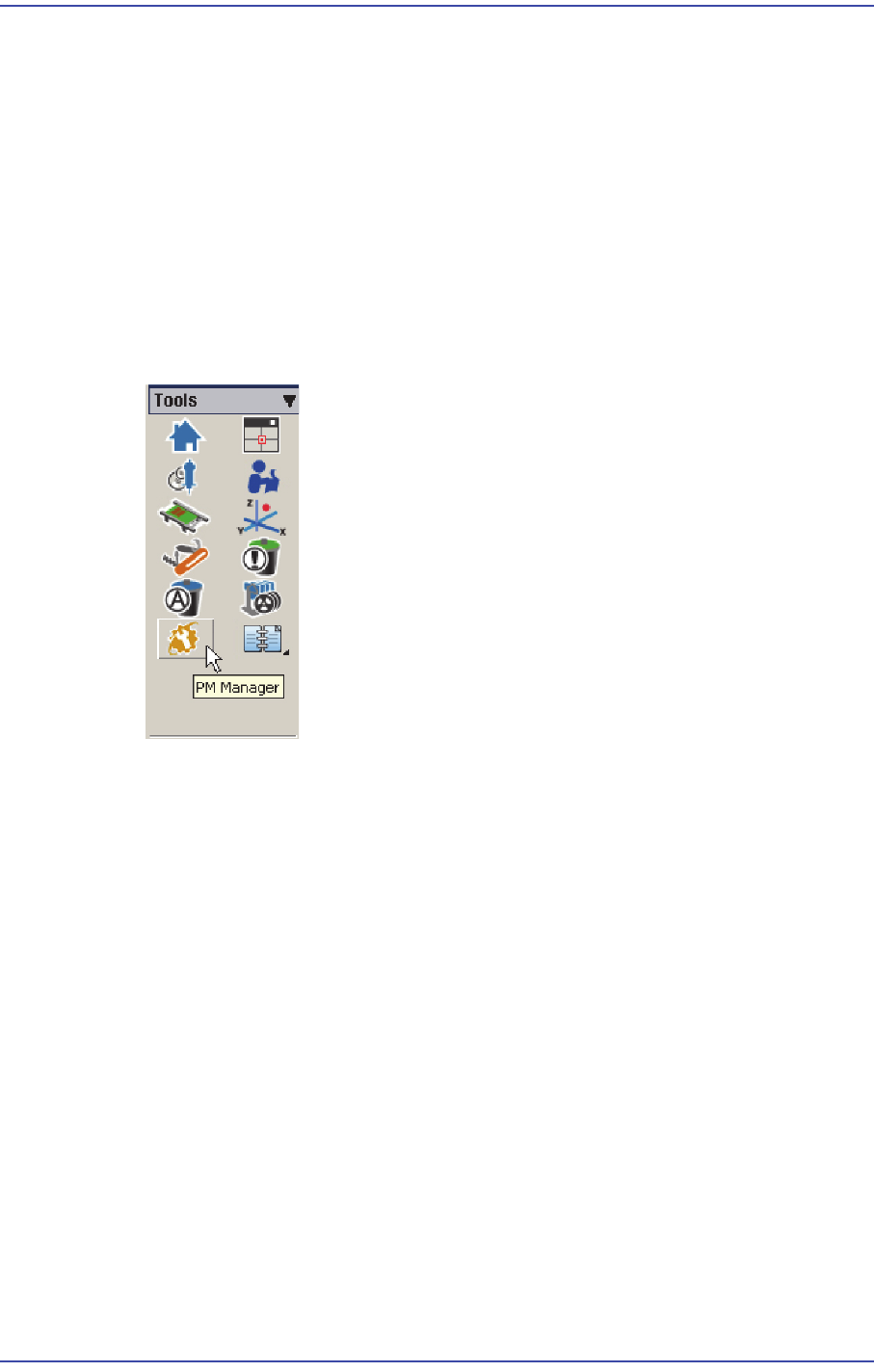

The method to execute the PM Manager in the MMI is as follows:
For SM Series Machines
13.2.2. Screen Configuration
The PM Manager consists of Main Screen, Setup Screen and History Screen. Once the PM
Manager is executed initially, the Main Screen appears by default.
Main Screen
13-36
Fast & Flexible Chip Shooter DECAN F2 Service Manual
Setup Screen
History Screen
