16-8 Fast & Flexible Chip Shooter DECAN F2 Service Manual 6) Go to the DOS Command and enter the following to format the CF card. A:>format c: 7) Once the format is finished, enter the follo wing to copy the vxsy …
16-7
Recovery

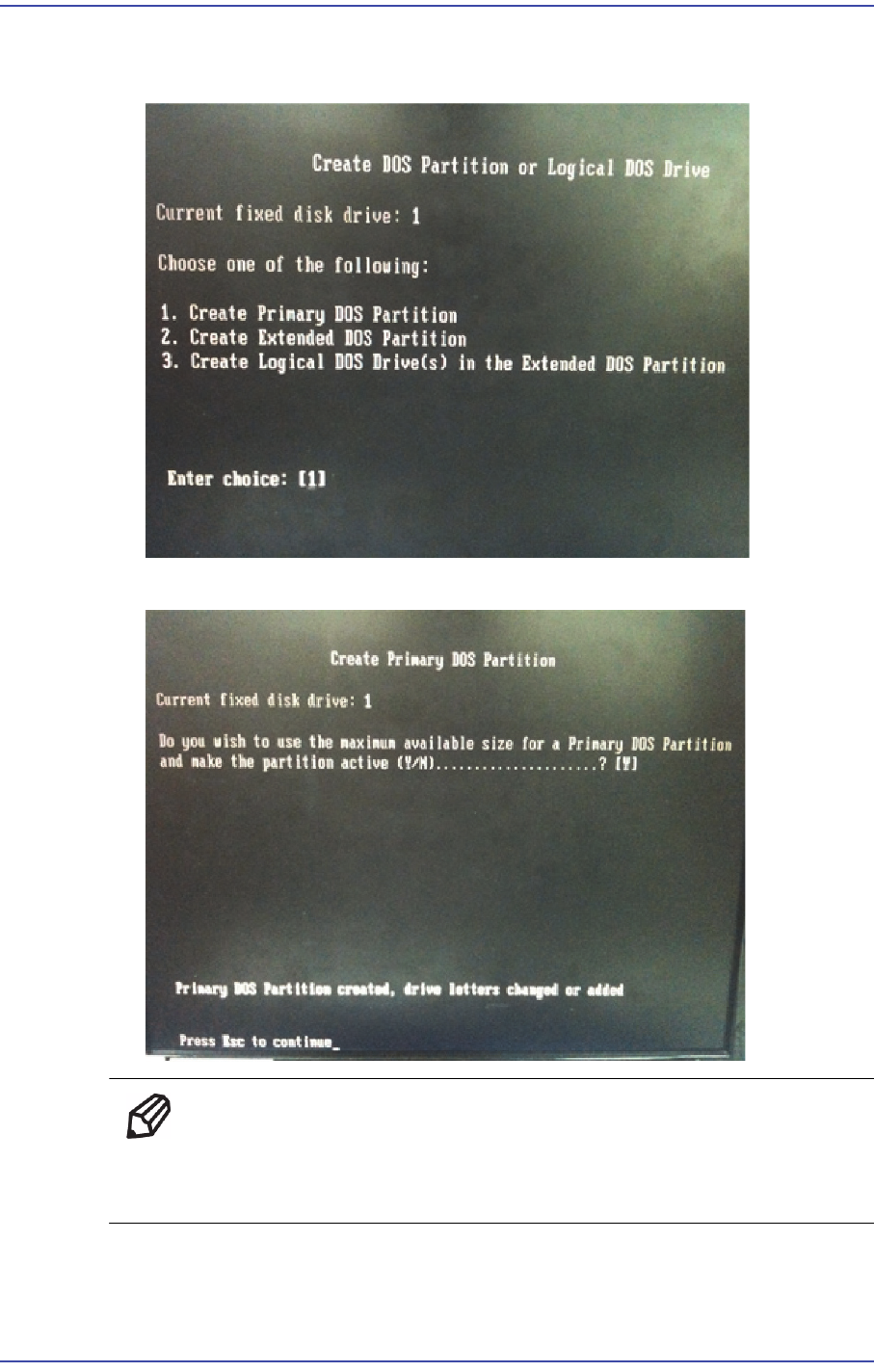

4) Select No. 1 ‘Create Primary DOS partition’ in the ‘Create DOS partition or Logical
DOS Drive’ menu.
5) Enter ‘Y’ to create Primary DOS Partition.
ReferenceIf the Primary DOS Partition is not created, delete the partition
already created and create one. (Use main menu ‘3. Delete partition or
Logical DOS Drive’.)
16-8
Fast & Flexible Chip Shooter DECAN F2 Service Manual
6) Go to the DOS Command and enter the following to format the CF card.
A:>format c:
7) Once the format is finished, enter the following to copy the vxsys.com to the CF card.
A:>copy vxsys.com c:
8) Once the copy is finished, go to C: and enter the following.
A:>c:
C:>lock c:
9) Enter the following to install the boot sector.
C:>vxsys c:
10) Enter the following to create the VXLD.bin.
C:>vxsys /f c:
11) Go to a: and copy the bootrom.bin file as follows (pay attention to the extension name)
C:>a:
A:>copy bootrom.bin c:\bootrom.sys
12) Remove the FDD drive and reboot the ROM drive and check whether the Boot ROM
is booted properly.
Ref Executing the file in the following path of the MMI PC while the
ROM drive can be booted will copy the RT OS related system file
(RT image file) to the RT PC automatically:
C: \SmartCM\Bin\RtUpgrade\SmartUpgrade.exe
16-9
Recovery
16.3. Recovery CD Installation
16.3.1. Required Tools
External CD-ROM
Recovery CD
16.3.2. How to Use Recovery CD
Caution Before using the Recovery CD, the ‘PartDB’ folder, ‘System’
folder and ‘PCB’ folder in the MMI Installation Folder must
be backed up. (Because all existing data contained in the
HDD are deleted).
After executing the Recovery CD, install the MMI and
overwrite the backed up folder. Then the machine can be
operated.
1) After inserting the Recovery CD in the CD-ROM, execute the computer again with
priority give to the CD-ROM in the BIOS, the PC is booted to the Restoration CD
automatically and the following selection menu is displayed. Here, select ‘Image File
to Disk’.
