Machine Calibration
1:Calibration Tool position
The following is the process that performs teaching of the calibration tool placed on
the top surface of the ANC by using the fiducial camera.

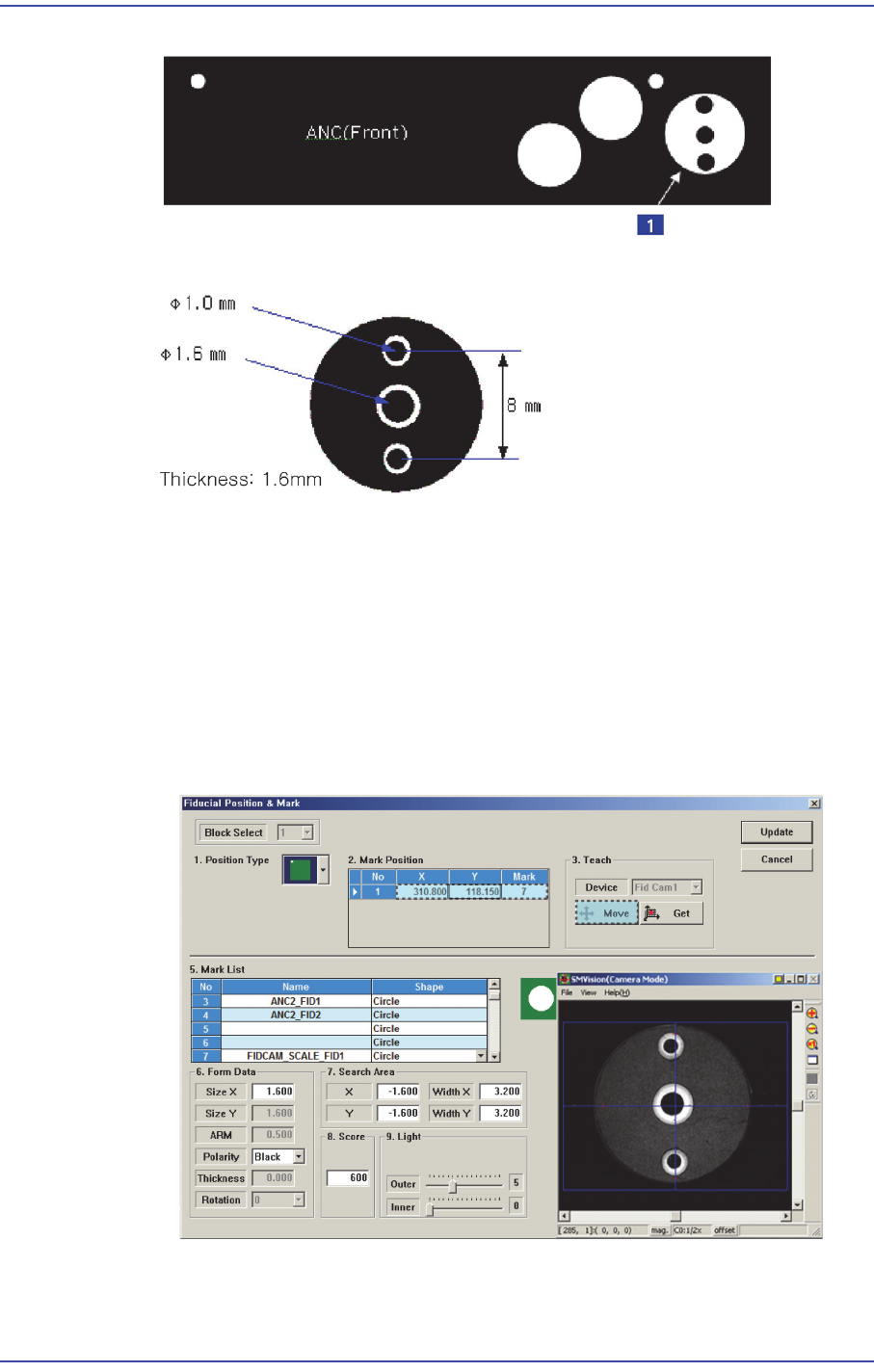

1. When performing the mark setup, select the gantry and click the <1. Fid. Scale
Mark Position> button. If the following screen appears, click the <Move> button
in the <Teach> group.
Then the fiducial camera moves to the corresponding position. The mark ID of
Gantry 1 is fixed as No. "7", and No. "8" for Gantry 2.
2. If the corresponding fiducial mark cannot be recognized correctly, teach the
position of the fiducial mark at the center of the calibration tool placed on the top
18-22
Fast & Flexible Chip Shooter DECAN F2 Service Manual
surface of the ANC. The size of the fiducial mark of the calibration tool is 1.6 mm.
3. If the fiducial mark position teaching is performed accurately, click the <Update>
button to apply the changed value.
4. Perform calibration for Gantry 2 in the same manner.
<2. Ref. Fid. Camera Scale(3. Other Fid. Camera Scale)> button
There is no calibration required to be done in advance in order to calibrate the scale
(um/pixel) and rotation (deg) of the fiducial camera.
The following shows how to calibrate the fiducial camera scale manually. If the
<Automatic Next> check box has been selected, the next step is performed
automatically.
1.Click the <2. Ref. Fid. Camera Scale> button in the <Calibration Menu> group.

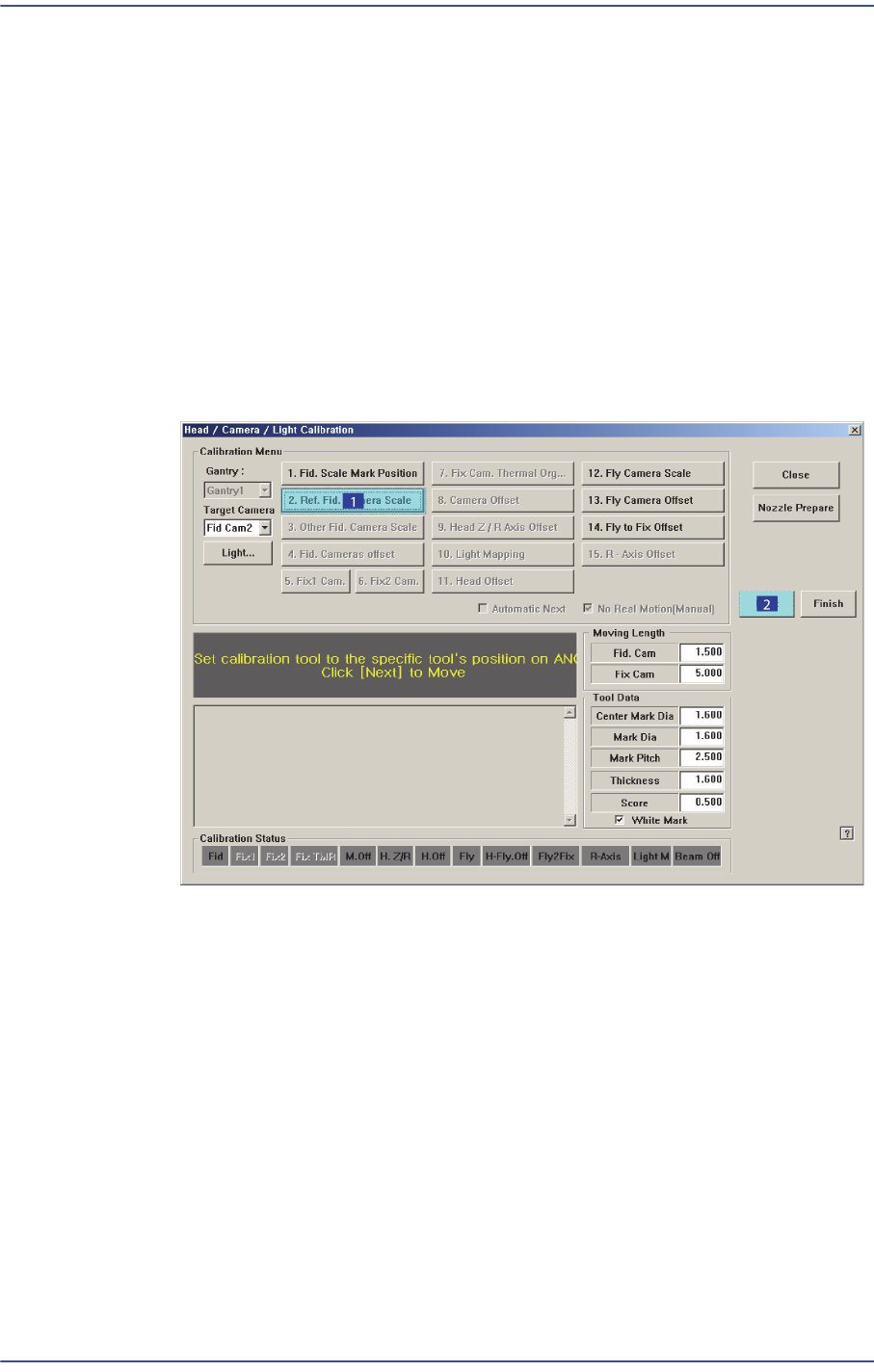

2.If the <2. Ref. Fid. Camera Scale> button is clicked, a message “Set calibration tool
to the specific tool’s position on ANC. Click [Next] to Move.” appears in the
message box. Next place the calibration tool at the position for the front ANC
calibration tool and click the <Next> button to move the fiducial camera to this
position.

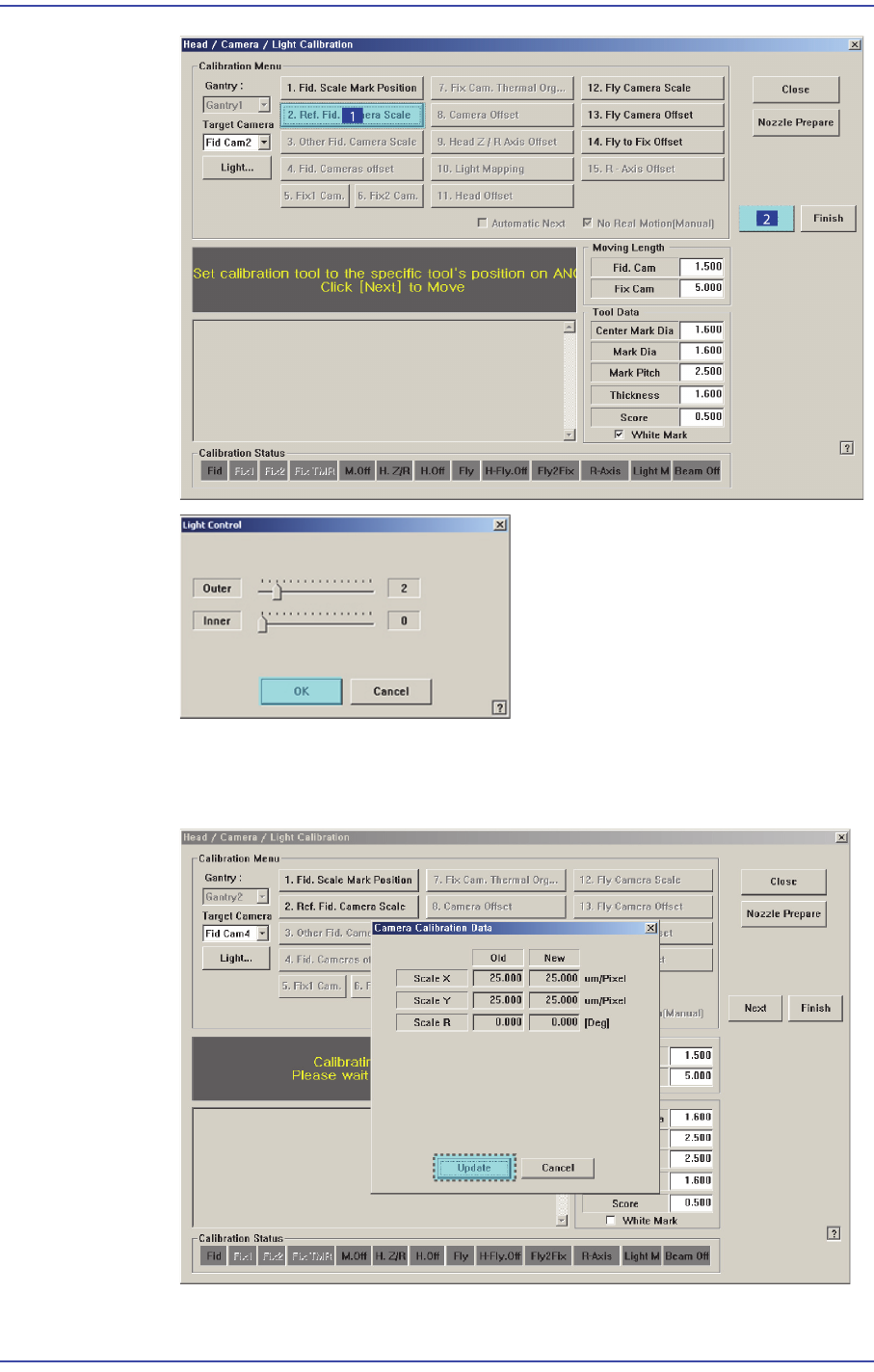

3.The message “Calibration is Prepared. To Calibrate, Click [Next]” appears. At this
time, click the <Light…> button and adjust the brightness of the light in the ‘Light
Control’ dialog box so that the fiducial mark that is seen in the ‘SMVision’
window can be seen clearly. Then click the <Next> button.
18-23
Machine Calibration
4.The calibration is performed automatically. If it is completed, the calibration result is
displayed as shown in the following figure. Click the <Update> button to apply
the new calibration value.
5. When using two fiducial cameras per gantry, press <3. Other Fid. Camera
