14-6 Fast & Flexible Chip Shooter DECAN F2 Service Manual 14.1.4. Note at the time of assembly 1) Check the PSDN short-circu it state an d check whet her the backplane pin i s deformed or missing (when connecting the…

14-5

Board

6) CD05-000042(MOTHERBOARD,CPU-CPCI-6625-i7;CPCI,HM65)

7) CD05-000050(MODULE,MEMORY-MZ-7TD120Z;SSD,540BPS)

8) EP10-001330(MEMORY-DDR3 10600)

14-6

Fast & Flexible Chip Shooter DECAN F2 Service Manual

14.1.4. Note at the time of assembly

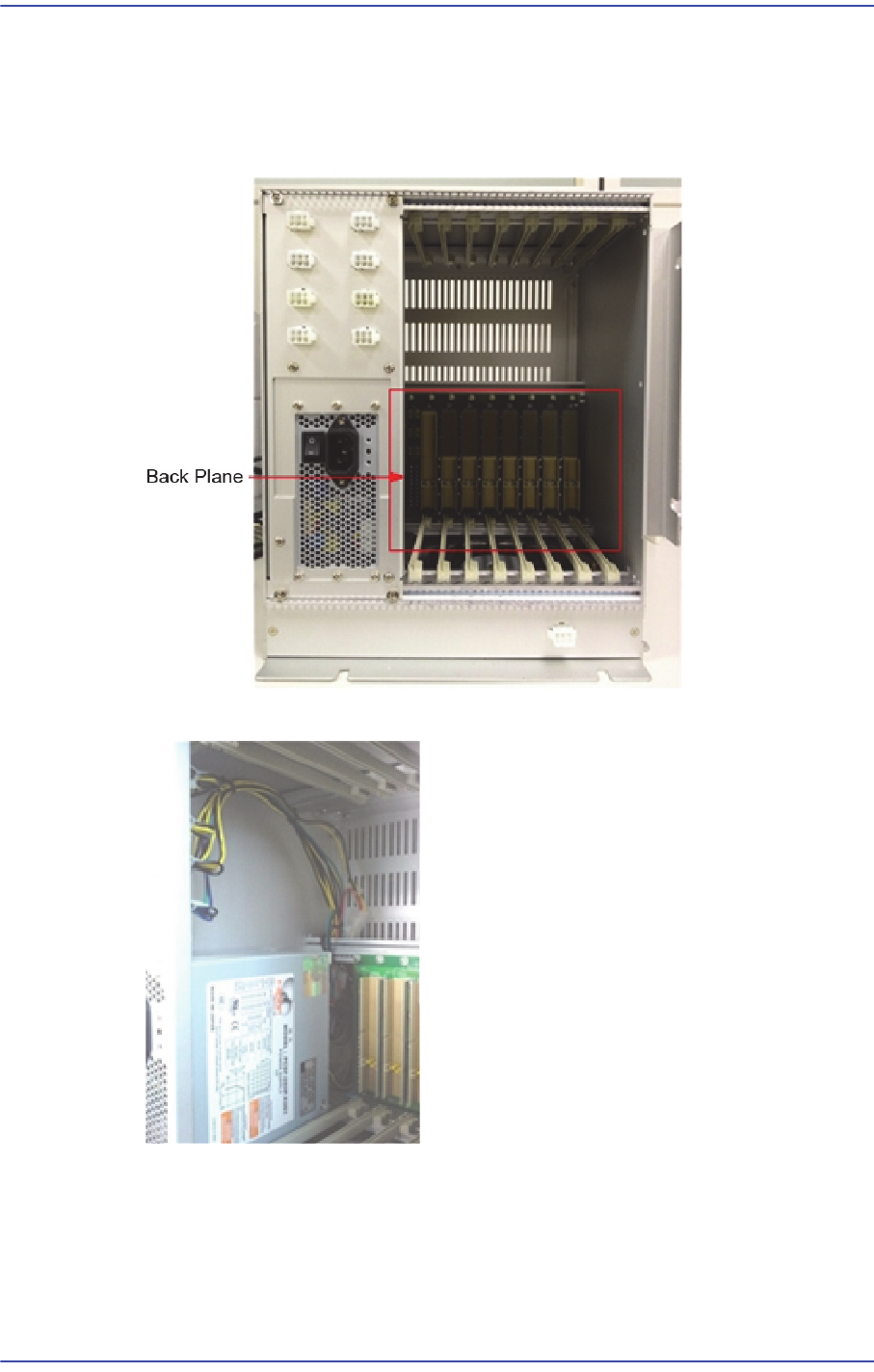

1) Check the PSDN short-circuit state and check whether the backplane pin is deformed

or missing (when connecting the backplane, do not use a plastic washer but use a

spring washer)

2) Cable arrangemen

3) Pay attention to the fan assembling direction (Assemble the fan so that its log can be

seen)

14-7

Board

4) View of major boards whose assembling is completed
