X Frame

6) Remove the fixing screws(4-M5*18) that secure the X-axis motor on the Bracket-X

and replace the motor.

Ref The part number of the new Motor is EP08-000185.

7) The assembling is performed in the reverse order of disassembling.

8) Perform the following calibrations.

Axis Home Calibration

Common X-Y (1'st)

Thermal Mapping

Gantry Mapping

ANC, Position Teaching

Total Time: 0.8Hour

Ref For a standard conveyor option, remove the machine from the in-line

before replacing the motor.

4-4

Fast & Flexible Chip Shooter DECAN F2 Service Manual

4.2. Ball Screw

4.2.1. Required Tools

 T wrench (other tools supplied) or hex wrench

 Gear wrench or torque wrench

4.2.2. Position of Ball Screw

4.2.3. Ball Screw Replacement Procedure

1) Manipulate the teaching box to move the X Frame to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Unscrew the fixing bolts(8-M3*5) securing the Ball Screw Cover and remove Ball

Screw Cover.

4-5

X Frame

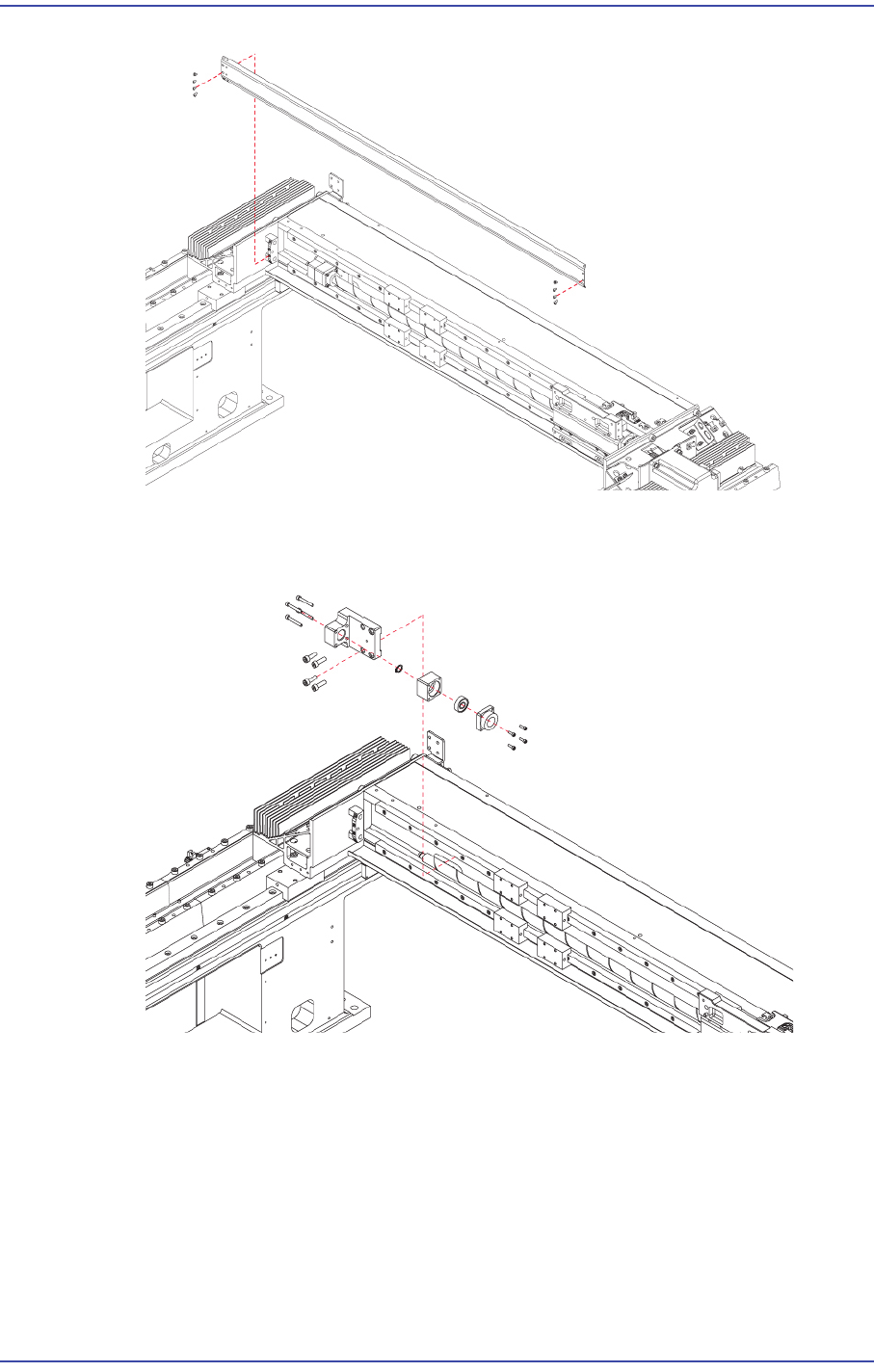

4) In order to remove the cushion, unscrew the fixing screws and remove the snap ring

assembled to the ball screw using snap ring pliers.

5) Remove the set screws (No1) of the coupling that connects the Coupling and ball

screw.
