6 Supply unit 6.3 Settings 116 Service Manual SIPLACE Wafer System (SWS) 11/2018 6.3 Settings 6.3.1 Setting the compressed air monitor Fig.127: Setting the compressed air monitor After replacement, you need to check the…

6 Supply unit

6.2 Replacing spare parts

Service Manual SIPLACE Wafer System (SWS) 11/2018 115

Configuring the Galil motor card

●

Amplifier module 4 axes => type AMP-19540

●

Amplifier module 2 axes => type AMP-19520

Connector designations

●

(1) Connector for axis 1-4 => type AMP-19540 (left card)

●

(2) Connector for axis 5-8 => type AMP-19540 (right card)

●

Connector for axis 6-6 => type AMP-19520 (right card only).

If the Die attach option is present, the right card will be an AMP 19520. If not, there will always be

two cards of type AMP 19540.

6.2.5 Replacing the mains transformer

Fig.125: Replacing the mains transformer

► Remove the four fastening screws(1).

Fig.126: Mains transformer - disconnecting input voltage (primary side)

► Disconnect the cable (1) and (2) for the input voltage on the primary side. See also the circuit

diagrams supplied.

6 Supply unit

6.3 Settings

116 Service Manual SIPLACE Wafer System (SWS) 11/2018

6.3 Settings

6.3.1 Setting the compressed air monitor

Fig.127: Setting the compressed air monitor

After replacement, you need to check the setting on the compressed air monitor.

► Depressurize the valve by pressing the monitor once.

► Supply pressure of 5 bar to the valve by pressing one more time.

► Turn the manometer down to 2.5 bar (average value) and check whether the LED turns off.

► Check whether the value was correctly saved.

6.3.2 Creating connection voltages at the mains transformer

Fig.128: Supply voltage at mains transformer

The various mains voltages are input here at the mains transformer terminals. See also the circuit

diagrams ([00195960-04]-DC-SWS-EN.pdf Page (SWS Line-Power Power-Input SWS-No.1-4) for

the machine.

► Dismantle and remove the SWS from the machine (see 4.1 "Removing the SWS" [}59]).

6 Supply unit

6.3 Settings

Service Manual SIPLACE Wafer System (SWS) 11/2018 117

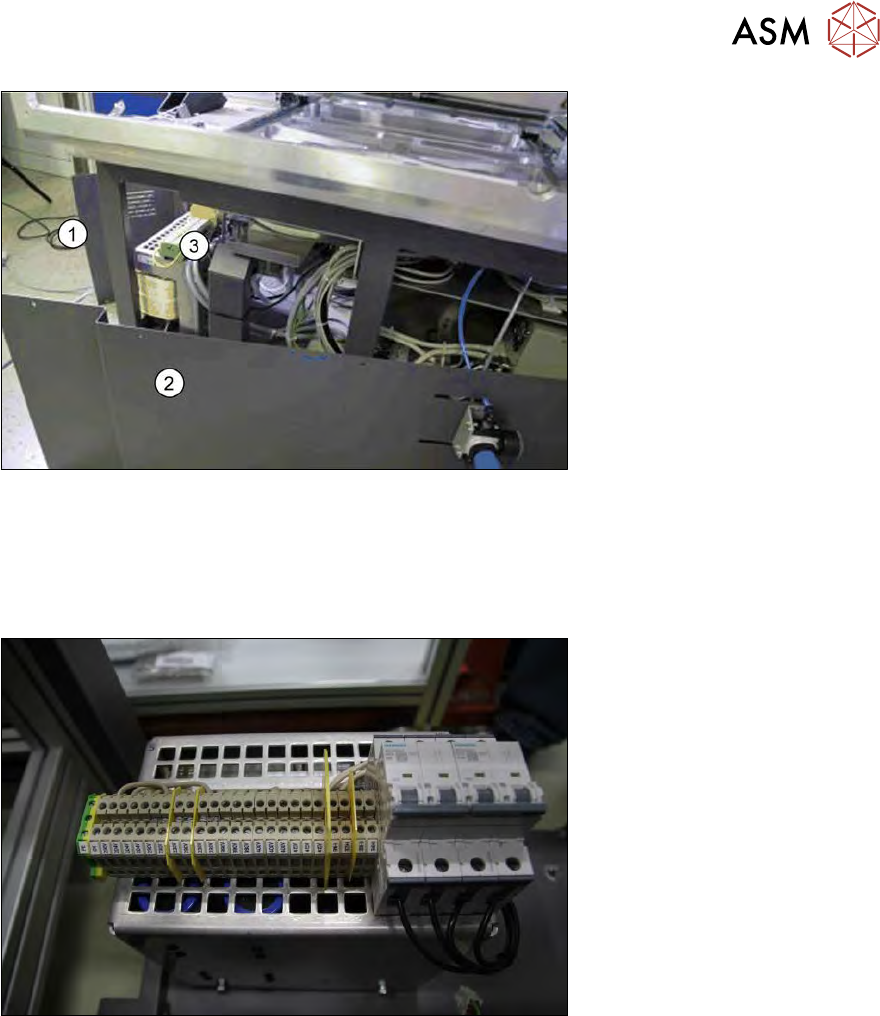

Fig.129:

1. Front cover

2. Side cover (unplug air connections from manometer → observe assignment)

3. Terminal block input voltage for transformer

► Remove the side and front covers

Fig.130: Terminal block input voltage for transformer viewed from the front

► Wire the incoming lines at the terminal block input voltage for the transformer in accordance

with the input voltage specifications (observe the correct wiring assignment L1-L2-L3 → see

circuit diagram).
