16 Software 16.2 Installation of operating system 458 Service Manual SIPLACE Wafer System (SWS) 11/2018 16.2.3.4 Restoring the process data via the GUI ► Insert the USB stick on which the process data are saved into the …
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 457

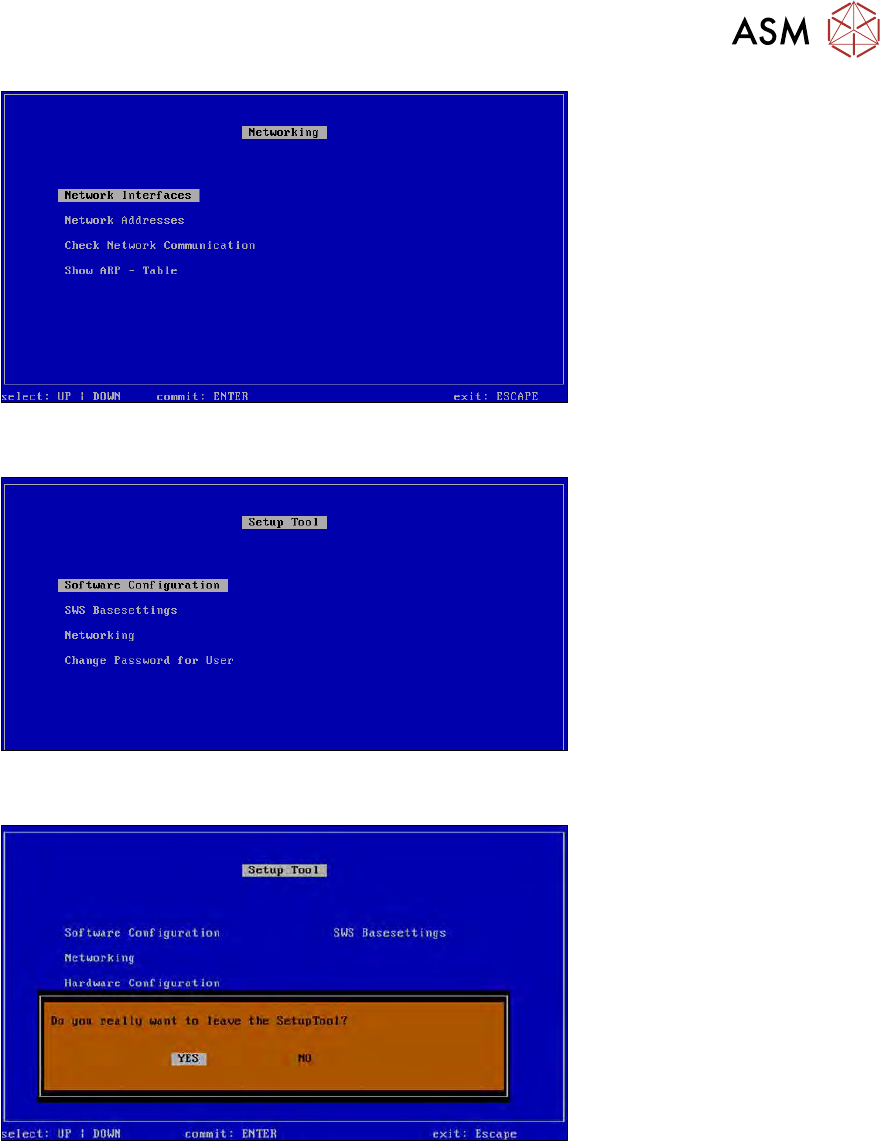

Fig.703: Networking menu
► Press ESC.
Fig.704: Setup tool menu
► Press ESC.
Fig.705: Message: exiting the setup tool
► Confirm YES with Enter.
► Restart the application.
16 Software
16.2 Installation of operating system
458 Service Manual SIPLACE Wafer System (SWS) 11/2018
16.2.3.4 Restoring the process data via the GUI
► Insert the USB stick on which the process data are saved into the USB port behind the SWS
keyboard.
Fig.706:
► To restore the process data i.e. all products created on the SWS, switch over to the service
menu and click on the "Restore product data" button.
Fig.707:
► Select "USB flash drive" and then select the folder in which the data is stored (see below).
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 459
Fig.708:
► In the folder, select the product data to be restored and confirm with "Accept".
Fig.709:
The following window will then open.
Fig.710:
► Click on the "Start" button, to start the data restore process.
NOTICE
In contrast to the calibration data, you can also load product data which were not generated
on the current SWS. Note that if there is a difference in the configuration of the original
SWS, you will need to modify the product data (e.g. in the case of differing wafer table con-
figurations 8"/12"). The frame and magazine sizes would need to be adjusted in that case.
