4.2 Installing the SWS
64 Service Manual SIPLACE Wafer System (SWS) 11/2018
For installation, you need the following screws which you removed before:
●
3x M8
●
2x M6
●
4x M6 for bracket (2 on location, 2 on wafer table)
●
1 x fitting screw
NOTICE
Observe the specified order
During final installation, always observe the following order of screws.
► Loosely fasten the back clamping claw (6) with an M8 screw.
► Insert the remaining screws and loosely tighten these.
NOTICE
Correct positioning of the SWS
The correct position of the SWS is set by the fitting screw and the contact rails on the
placement machine.
► Tighten the M6 screws (4 and 5) one after the other with a torque of 10Nm.
► Tighten the M8 screws (1, 2 and 6) one after the other with a torque of 18Nm.
► Tighten the fitting screw (3) with a torque of 13‑14Nm.
► Tighten M6 screws (7) and (8) fastening the fixture bracket for the wafer table.
► Tighten the two M6 screws fastening the fixture bracket for the wafer table.
► Remove the fork lift/pallet jack.
► After final adjustments, connect the SWS to the power supply.
4 SWS installation and removal for SIPLACE CA machines
4.3 Swinging up the magazine lift
Service Manual SIPLACE Wafer System (SWS) 11/2018 65
4.3 Swinging up the magazine lift
When performing service work to the parts which can not be accessed from above, you need to
make the inside of the SWS accessible from the front.
CAUTION
Risk of magazine lift tilting
► Make sure that the SWS support foot is folded out to the side before you swing the
magazine lift up. Otherwise, there is a risk that the magazine lift may tilt over.

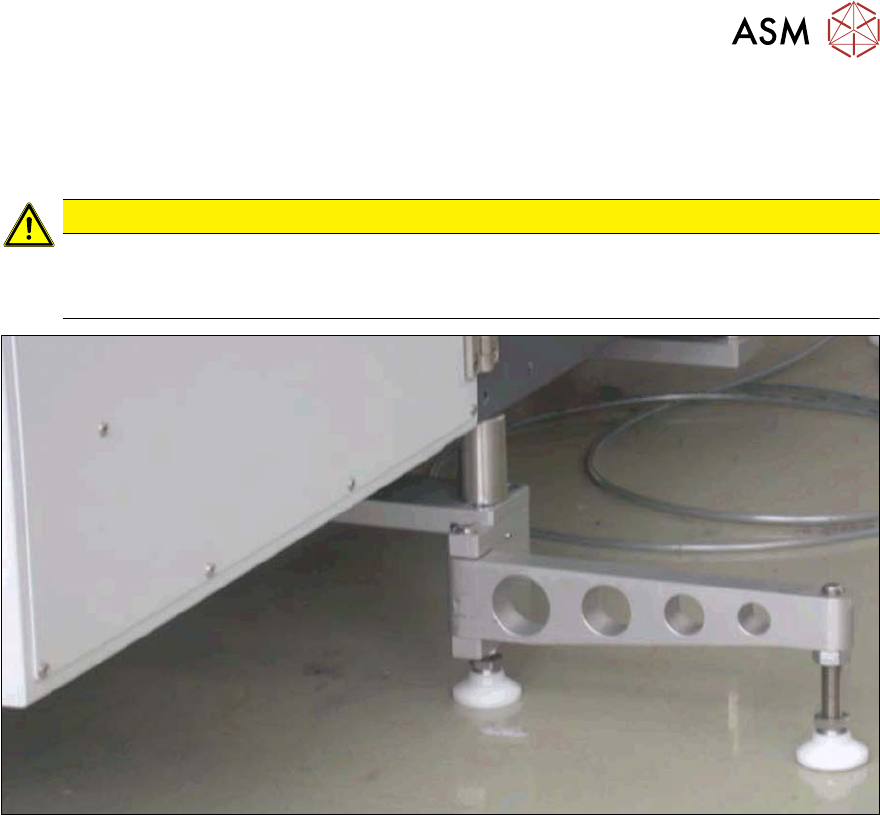

Fig.43: Support leg when folded open
► Fold the SWS support foot out to the side.
4 SWS installation and removal for SIPLACE CA machines
4.3 Swinging up the magazine lift
66 Service Manual SIPLACE Wafer System (SWS) 11/2018
