16 Software
16.2 Installation of operating system
420 Service Manual SIPLACE Wafer System (SWS) 11/2018

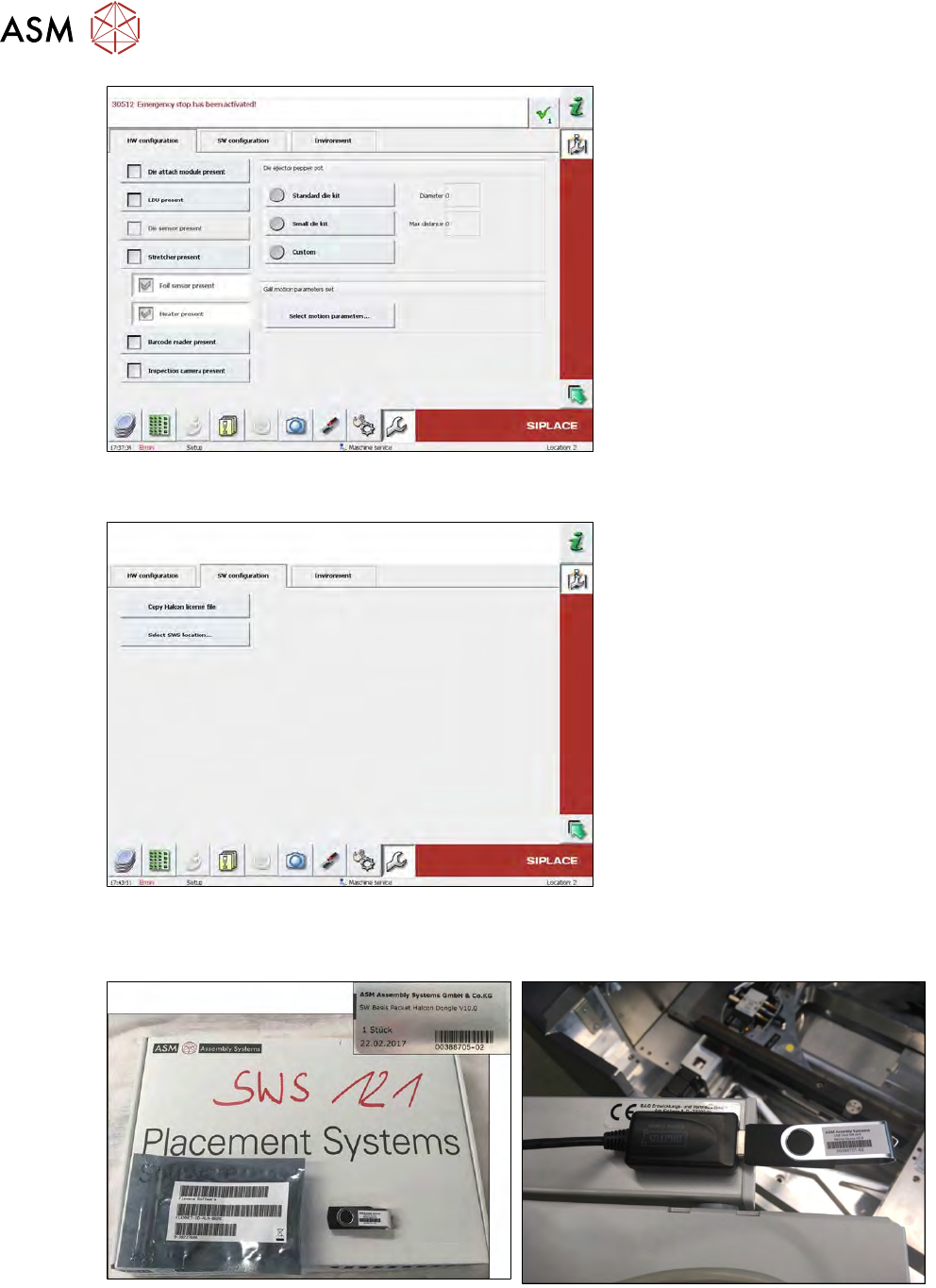

Fig.620:
► Select the SW configuration tab.
Fig.621:
► Take the USB stick shown in the diagram from the SW package delivered with the SWS and
select Copy Halcon license file.
Fig.622: Halcon dongle SW package and Halcon dongle
► Make sure that, when you replace the SWS PC, the green Halcon dongle (see photo) has
been unplugged from the old BoxPC and connected to the new one.
The SWS Vision system will not work without the dongle!
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 421
16.2.1.5 Backup of installed SWS software via Linux console
► Connect a USB stick to the port provided on the computer.

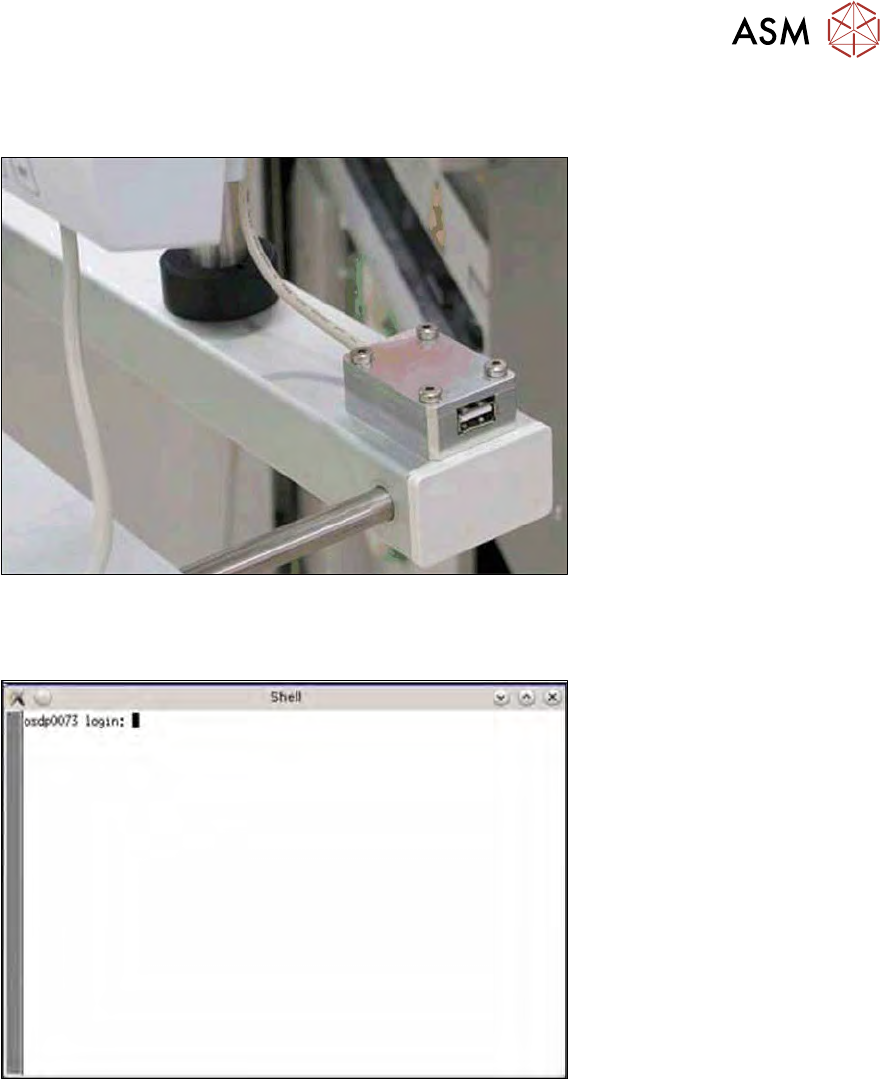

Fig.623: USB port on the SWS monitor
► To create the required effect, confirm each entry with Enter.
► Open the terminal with CTRL + ALT + X.
Fig.624: Open terminal
► Enter the following in the terminal: launch.
► Enter your password: launch.
16 Software
16.2 Installation of operating system
422 Service Manual SIPLACE Wafer System (SWS) 11/2018

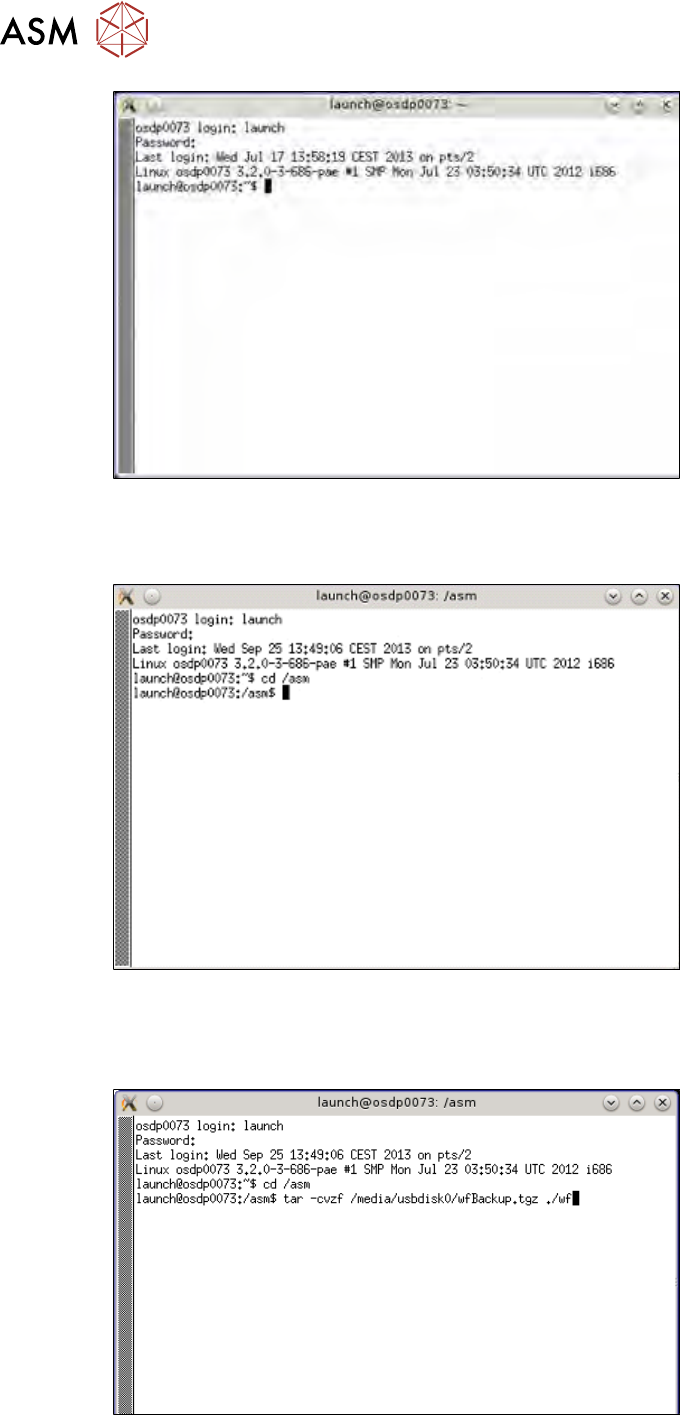

Fig.625: Entry of launch and password (launch)
► Enter cd /asm to switch over to the system folder of the SWS software.
► Enter the following: ls /media/usbdisk0
Fig.626: Entry of cd/ asm and ls /media/usbdisk0
► The contents of the USB stick will be shown. To save the wafer feeder SW packages on the
USB stick, enter the following:
tar -cvzf /media/usbdisk0/wfBackup.tgz ./wf
Fig.627: Entry of tar -cvzf /media/usbdisk0/wfBackup.tgz ./wf
After the process has been completed, the following will appear on your screen:
