16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 451
Applying the settings

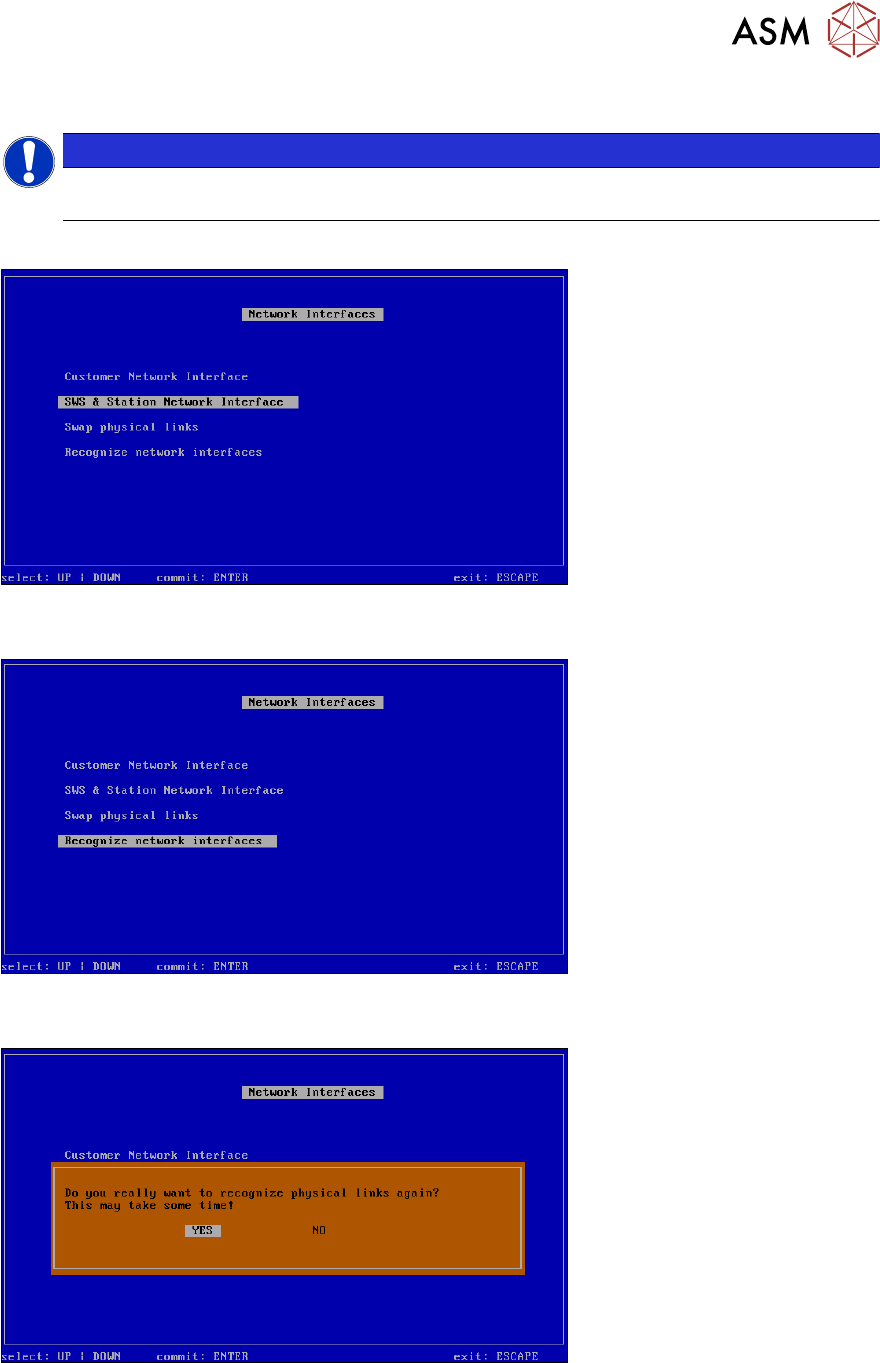

NOTICE
The settings are applied in a later step at Recognize Network Interfaces or after a reboot
of the computer.
► Press ESC.
Fig.687: Network interfaces menu
► Select Recognize network interfaces and confirm with Enter.
Fig.688: Recognize network interfaces menu
► ConfirmRecognize network interfaces with Enter.
Fig.689: Recognize network interfaces - message menu
► Select YES and confirm with Enter.
16 Software
16.2 Installation of operating system
452 Service Manual SIPLACE Wafer System (SWS) 11/2018

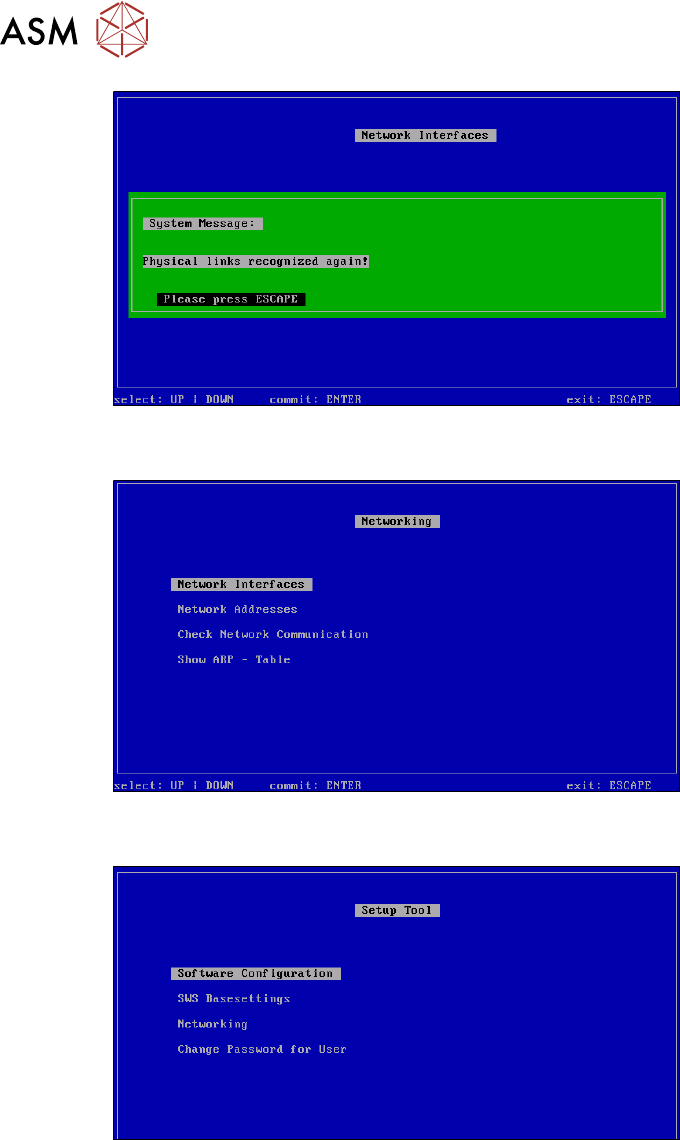

Fig.690: Recognize network interfaces - confirmation menu
► Press ESC.
Fig.691: Networking menu
► Press ESC.
Fig.692: Setup tool menu
► Press ESC.
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 453

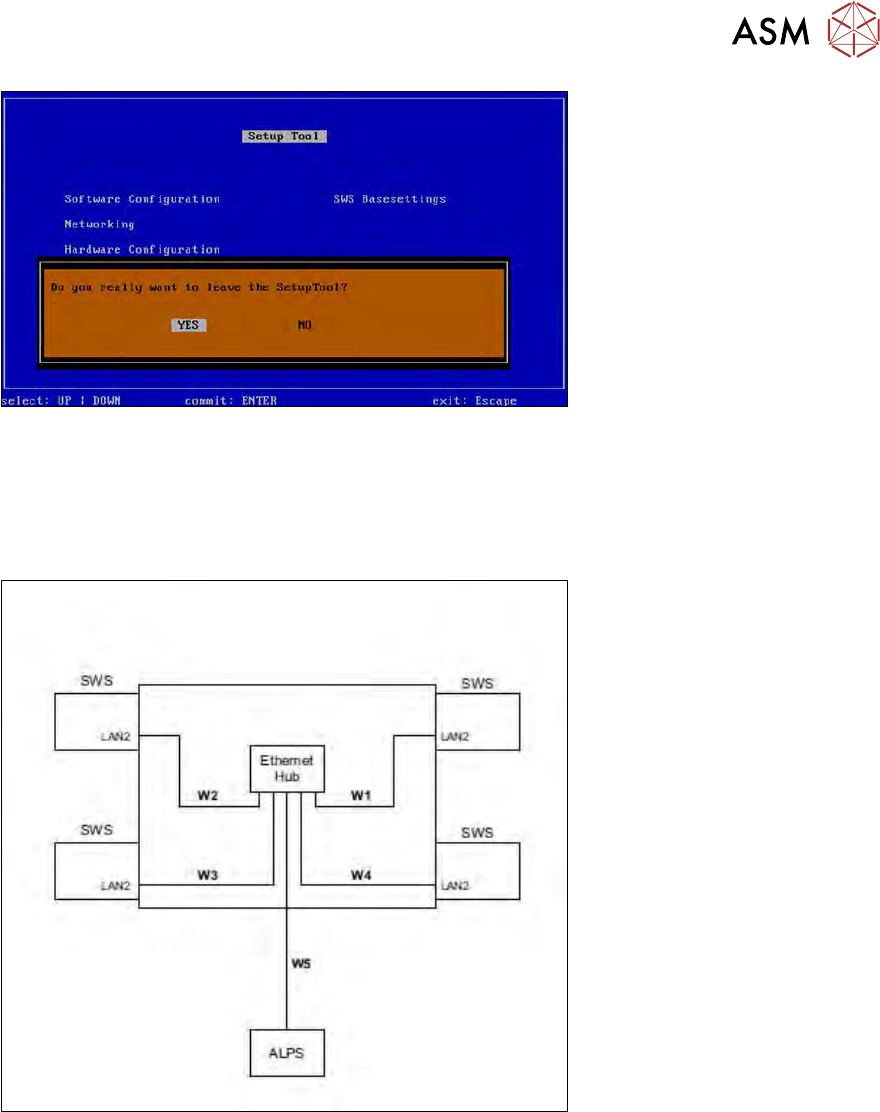

Fig.693: Message: exiting the setup tool
► Confirm YES with Enter.
► Restart the application.
Setting the network addresses for the eth0 interface (connection SWS-wafer map
server)
Fig.694: Network overview SWS to wafer map server
The networks SWS => wafer map server and SWS =>station each have their own ethernet hub.
The LAN2 port can be found at the bottom.
