13 BoxPC, GALIL cards and axis control

13.3 Replacing the servo amplifier for the axes

Service Manual SIPLACE Wafer System (SWS) 11/2018 347

13.3.1 Removing the servo amplifier AMP-19540 from the SWS frame

Removal of the AMP-19520 servo amplifier from the wafer lift base is not described separately. The

procedure is the same.

The description shows removal of the AMP-19540 for AXIS1-4. This card is the most difficult to

access.

► Dismantle and remove the SWS from the machine (see 4.1 "Removing the SWS" [}59]).

► Fold the wafer lift out to one side (see 4.3 "Swinging up the magazine lift" [}65]).

Fig.496:

► Remove the two Allen screws on the base plate (where the BoxPC is fitted).

Fig.497:

► Remove the right side panel.

13 BoxPC, GALIL cards and axis control

13.3 Replacing the servo amplifier for the axes

348 Service Manual SIPLACE Wafer System (SWS) 11/2018

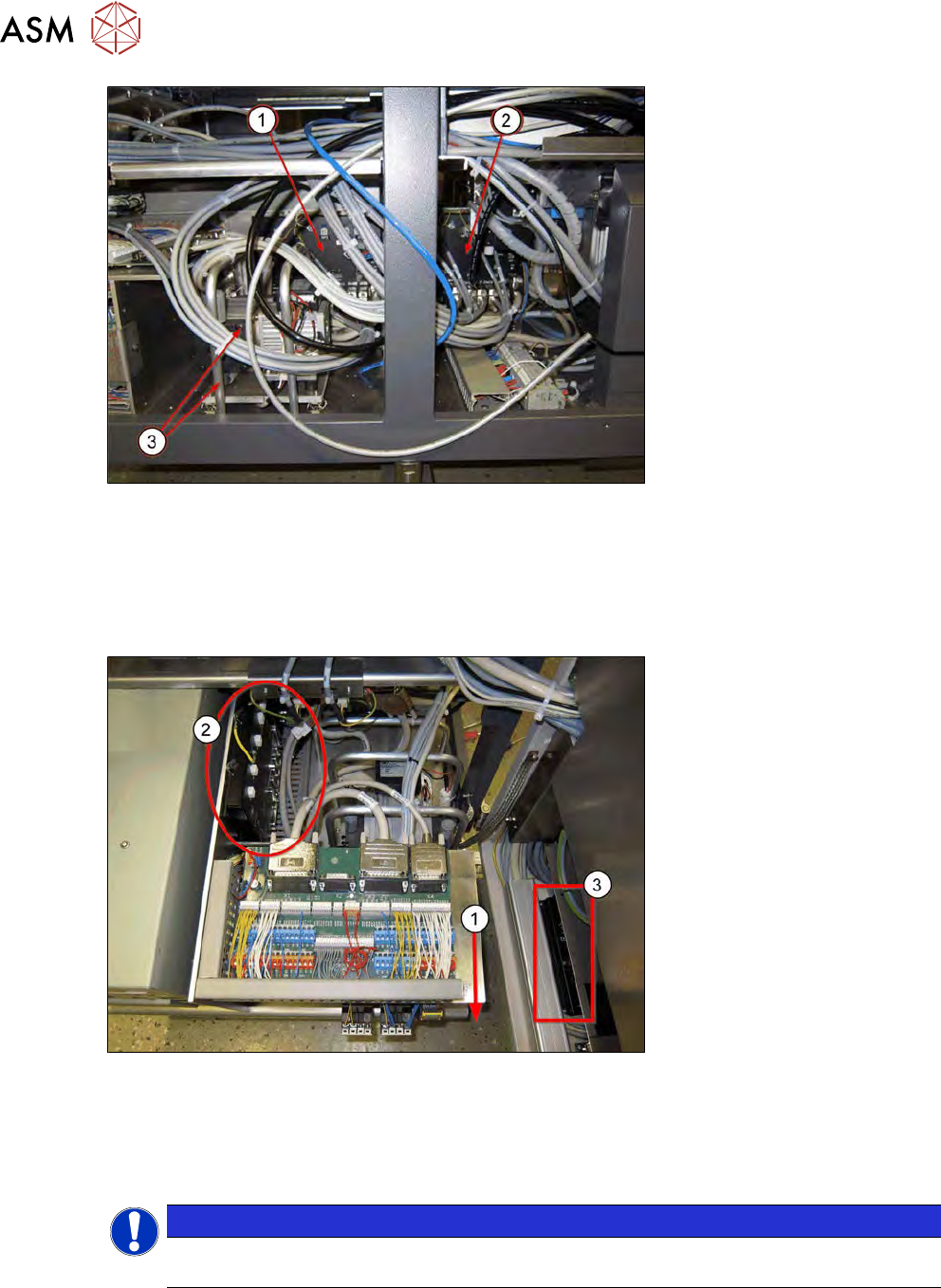

Fig.498:

► Access to the GALIL cards AMP-19540 AXIS1-4 (1) and AMP-19540 AXIS5-8 is obstructed

and therefore difficult to achieve.

TIP: to make removal of the AMP-19540 AXIS1-4 GALIL card easier (1), you can also remove the

vacuum pump and protective bracket(3).

The removal without dismantling the vacuum pump is described below.

Fig.499:

► Pull the base plate towards the front (1).

Make sure that it does not tilt too much and that the back cable of the unit is not tensioned ex-

cessively.

► Remove all cables from the AMP-19540 AXIS1-4 GALIL card (2).

NOTICE

In the diagram you can see the AMP-19520 GALIL card for the wafer lift and wafer changer

axes in the tower (3).

13 BoxPC, GALIL cards and axis control

13.3 Replacing the servo amplifier for the axes

Service Manual SIPLACE Wafer System (SWS) 11/2018 349

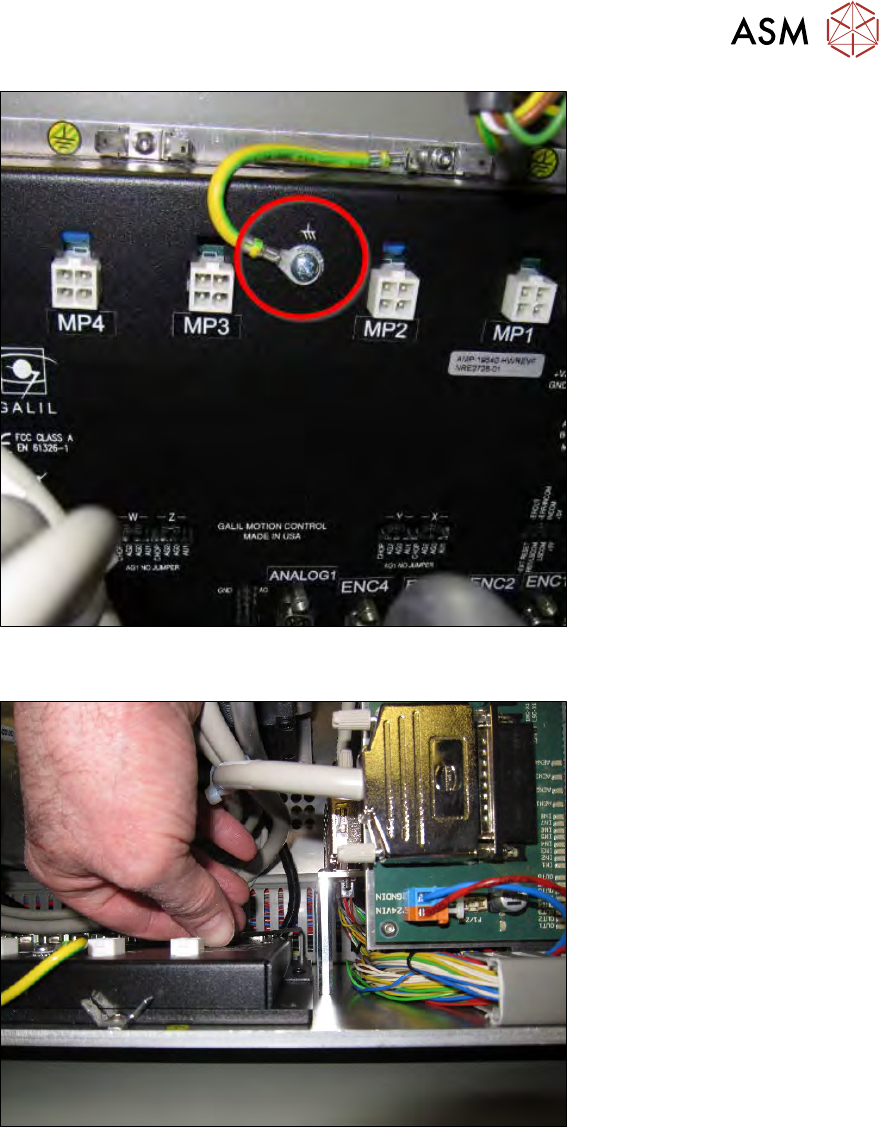

Fig.500:

► Unscrew the ground connection for the GALIL card.

Fig.501:

► Remove the four screws fastening the GALIL card to the base frame.
