16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 427

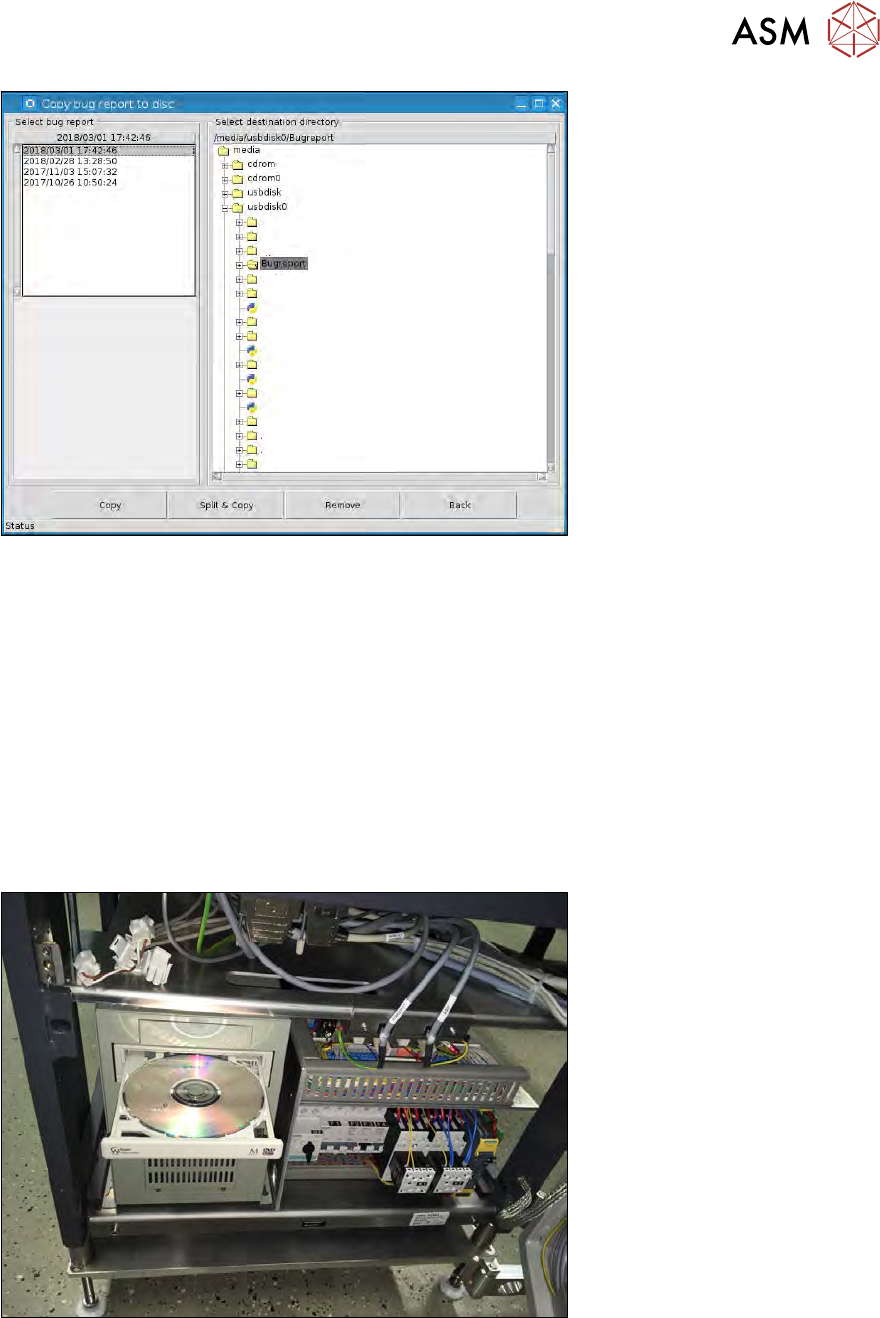

Fig.634:
► After copying has been competed, use the Back button to return to the previous view.
► Select Exit if you want to leave the bug reporter.
The bug reports generated stay saved on the SWS unless they are manually deleted ( Remove
button).
16.2.1.7 Creating a recovery DVD for restoring the system
We highly recommend that you create a recovery DVD before installing the operating system, so
that you can restore the current software status of your PC in the event of any problems occurring.
The procedure for this is described below:
► Open the bottom lift door and swing the entire lift to the side.
► Place an empty DVD into the BoxPC of the SWS.
Fig.635:
► Select Ctr+Alt+Q to switch over to the SetupTool start menu. The following menu will be
shown.
16 Software
16.2 Installation of operating system
428 Service Manual SIPLACE Wafer System (SWS) 11/2018

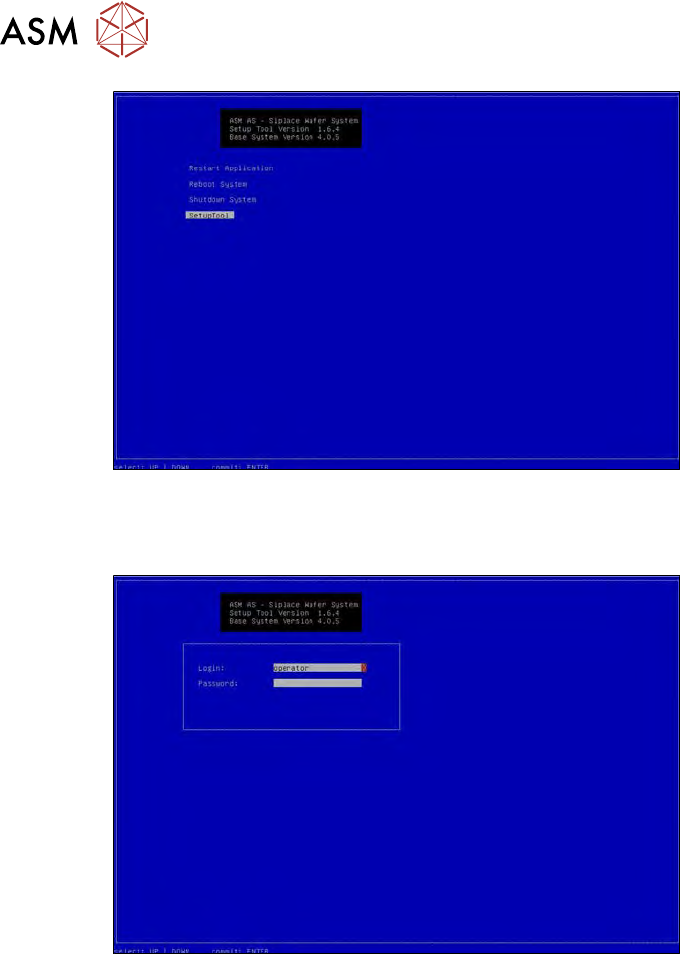

Fig.636:
► Use the cursor keys to select Setup Tool and then press Enter.
ð The following login box will appear.
Fig.637:
► To log in as administrator, press and hold the Ctrl+Shift keys and enter the character string
capwd (stands for CA password).
► Use the cursor keys to select the password line and enter the following character string as
password: wafer4GOD
ð The login line should now look like this:
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 429

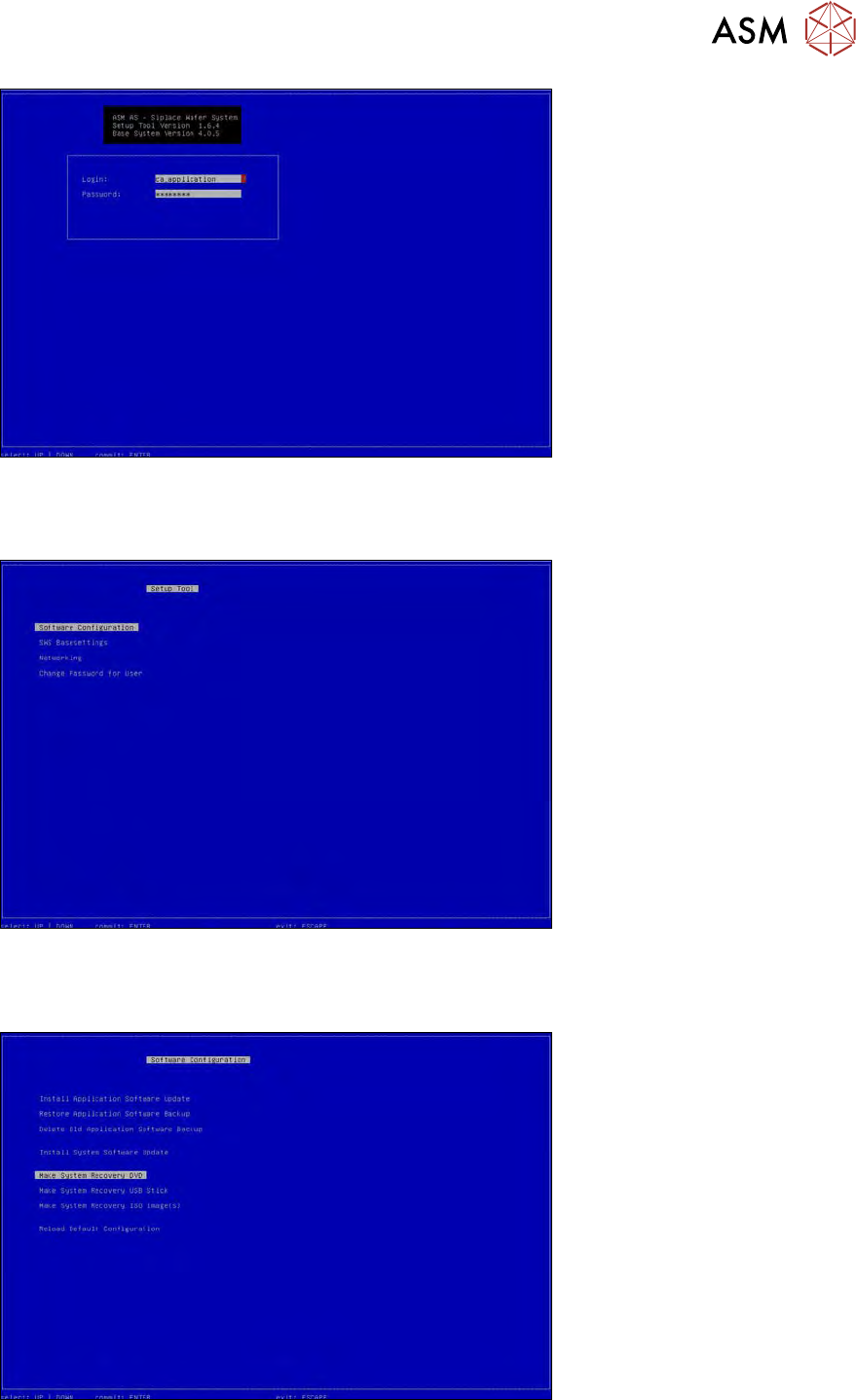

Fig.638:
► Press Enter.
ð The setup tool start window will be shown.
Fig.639:
► Select Software Configuration and press Enter.
► Use the cursor keys to select the function Make System Recovery DVD and press Enter.
Fig.640:
The following window will open. Make sure that there is an empty DVD in the SWS PC.
