16 Software
16.2 Installation of operating system
454 Service Manual SIPLACE Wafer System (SWS) 11/2018
The customer interface is needed, for example, for connecting to a wafer map
server (Kynesis ALPS).
To restore the addresses which were reset during installation of the operating system, proceed as
follows:
► Select "Networking".

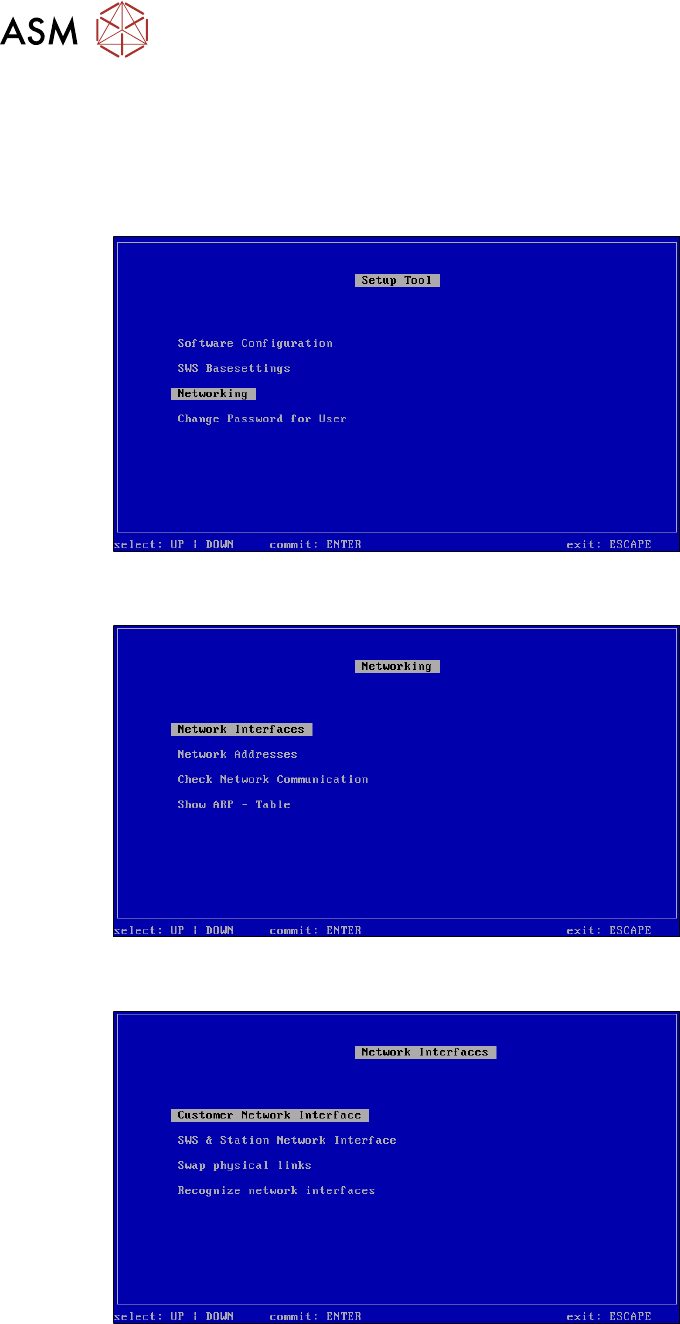

Fig.695: Setup tool menu
► Confirm Networking with Enter.
Fig.696: Networking menu
► Confirm Network Interfaces with Enter.
Fig.697: Customer network interface menu
► Confirm Customer Network Interface with Enter.
Enter the addresses you noted before installation of the operating system or ask your admin-
istrator for these.
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 455

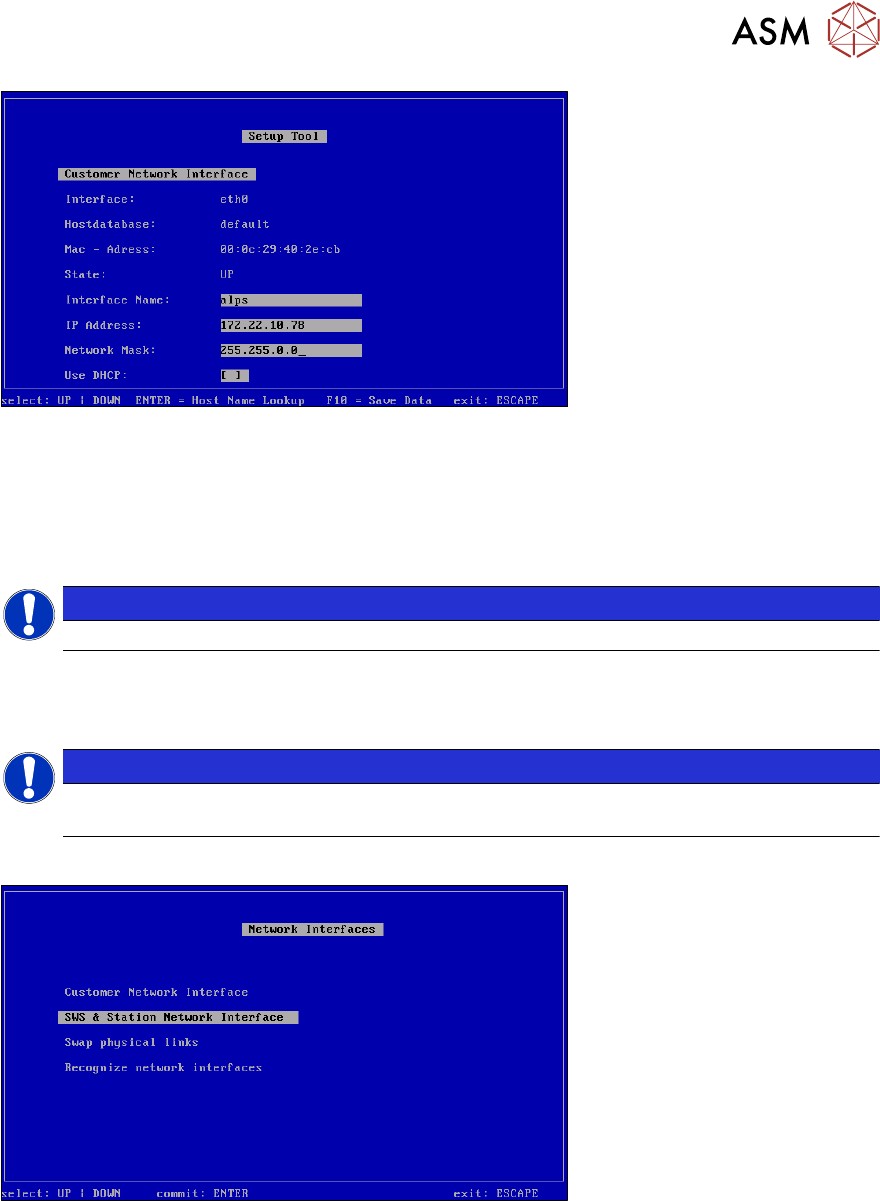

Fig.698: Customer network interface
► Define the settings for the connection to the wafer map server.
Ask your administrator for the wafer map settings.
► Save your entries with F10.
Applying the settings
NOTICE
The settings will be applied in a later step, at Recognize Network Interfaces .
► Press ESC.
Applying the settings
NOTICE
The settings are applied in a later step at Recognize Network Interfaces or after a reboot
of the computer.
► Press ESC.
Fig.699: Network interfaces menu
► Select Recognize network interfaces and confirm with Enter.
16 Software
16.2 Installation of operating system
456 Service Manual SIPLACE Wafer System (SWS) 11/2018

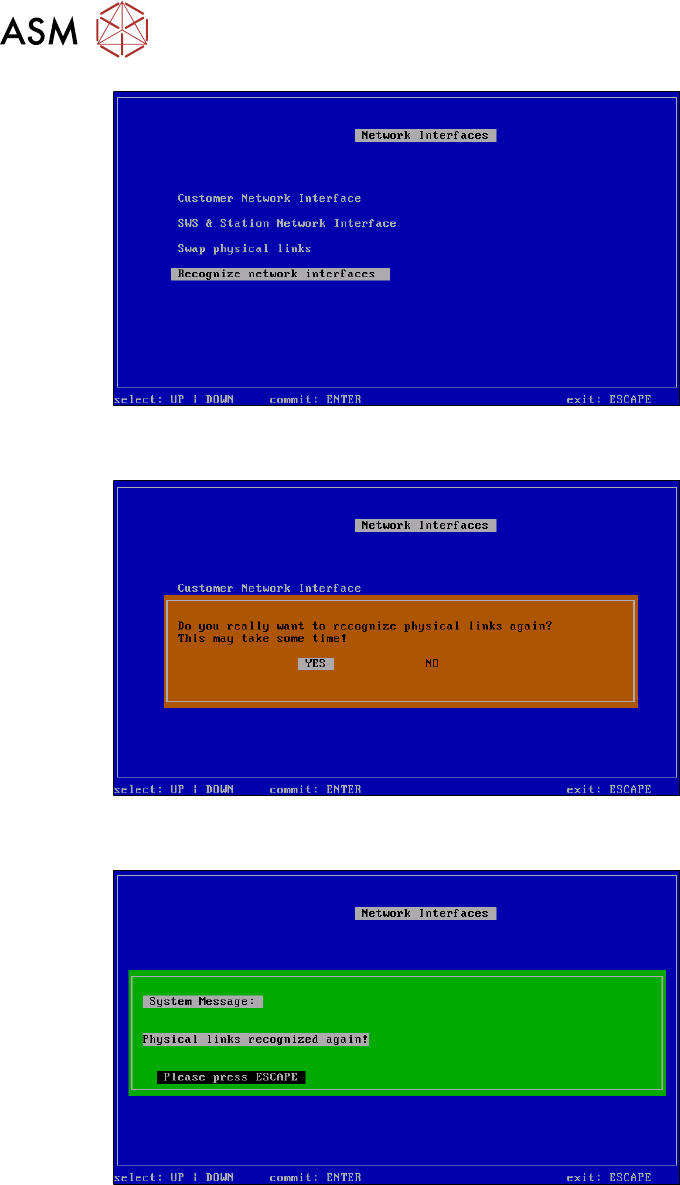

Fig.700: Recognize network interfaces menu
► ConfirmRecognize network interfaces with Enter.
Fig.701: Recognize network interfaces - message menu
► Select YES and confirm with Enter.
Fig.702: Recognize network interfaces - confirmation menu
► Press ESC.
