12 Wafer stretcher 12.4 Removing the wafer stretcher 290 Service Manual SIPLACE Wafer System (SWS) 11/2018 Fig.407: Dismantle the presence sensor 8"/12" (5) as follows: ► Make a note of the direction in which …

12 Wafer stretcher

12.4 Removing the wafer stretcher

Service Manual SIPLACE Wafer System (SWS) 11/2018 289

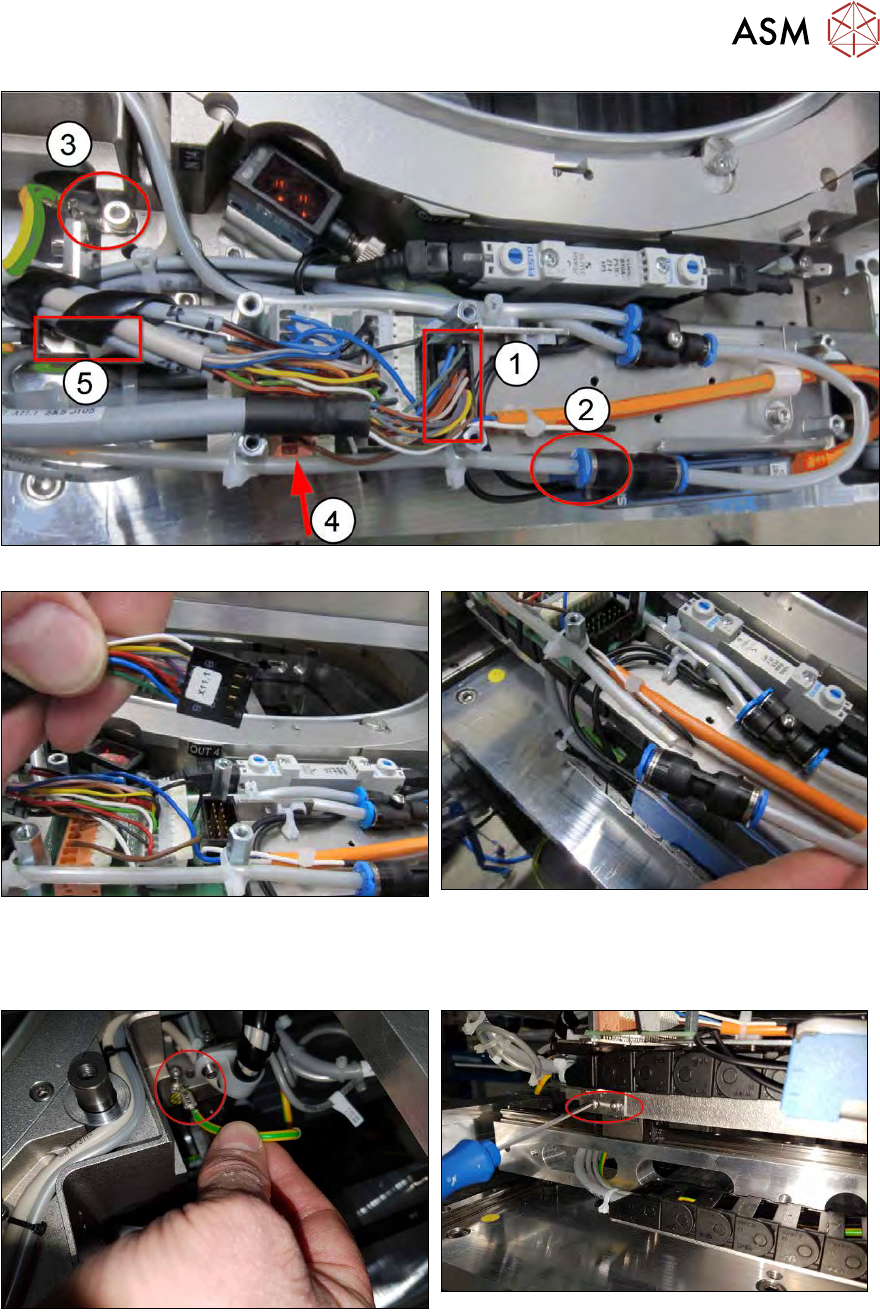

Fig.404:

Fig.405:

► Unplug the X11 connector (1).

► Unplug the compressed air cable (2).

Fig.406:

► Unscrew the ground connection (3).

► Dismantle the power chain (4) → concealed.

► There may be a number of cable ties to open in order to unplug the connections properly.

12 Wafer stretcher

12.4 Removing the wafer stretcher

290 Service Manual SIPLACE Wafer System (SWS) 11/2018

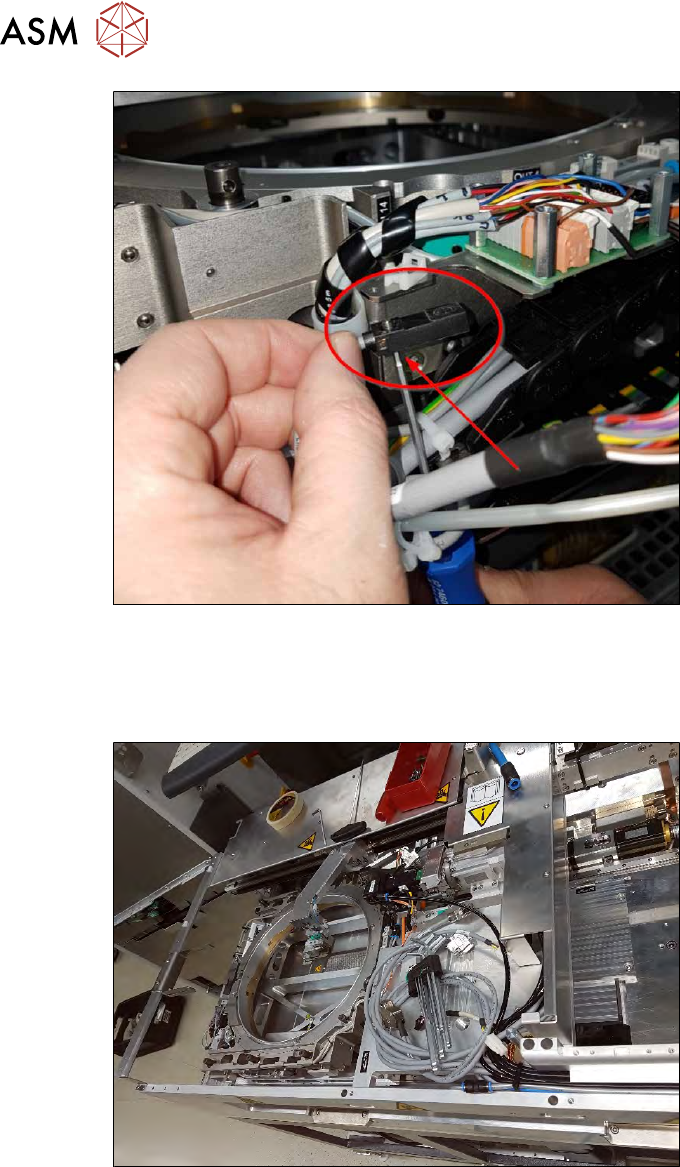

Fig.407:

Dismantle the presence sensor 8"/12" (5) as follows:

► Make a note of the direction in which the sensor is fitted!

► Remove the screw (accessible from below).

Fig.408:

► Carefully pull the wafer stretcher back to the wafer tower side.

Make sure that the previously removed cable does not get caught anywhere.

12 Wafer stretcher

12.4 Removing the wafer stretcher

Service Manual SIPLACE Wafer System (SWS) 11/2018 291

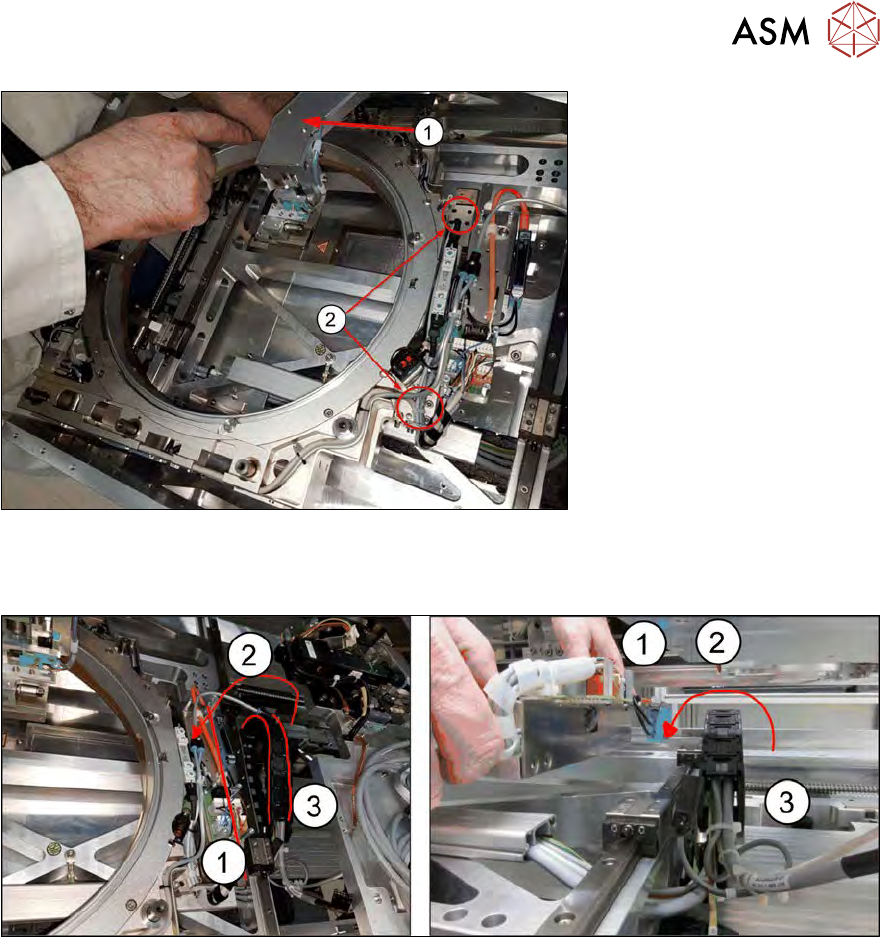

Fig.409:

► Pull the wafer changer to the middle of the wafer stretcher (1).

► Remove the four fastening screws (2) from the guide trolleys beneath.

Fig.410:

► Now carefully lift the wafer stretcher, with the metal edge and blue valve (1), over the power

chain (3)!

Take care that the wafer stretcher does not hit the upper assemblies (2) when it is lifted out.

Tip: roll out the power chain so you do not need to lift the wafer stretcher so high.
