9 Wafer change system
9.2 Gripper
214 Service Manual SIPLACE Wafer System (SWS) 11/2018
9.2.10 Replace the wafer changer completely

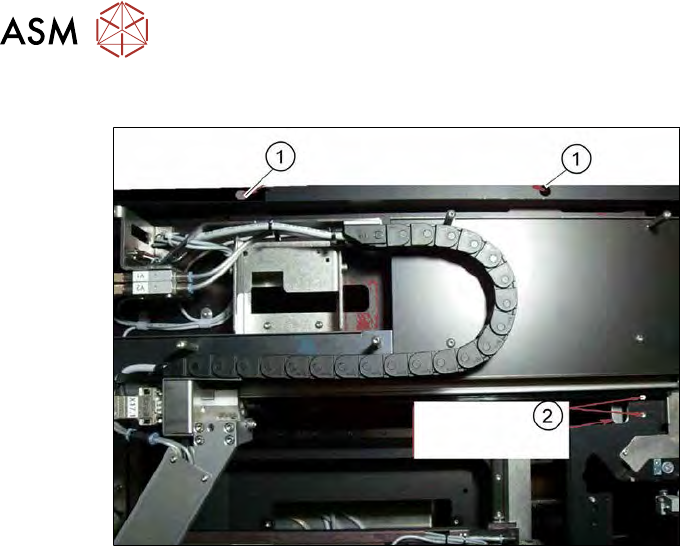

Fig.278: Replace the wafer changer completely
► Remove the cover plates.
► Remove the two fastening screws (1).
► Remove the screws (2) on the fixing plate (holder between flip unit and wafer changer, ac-
cessible from below).
► Disconnect the electrical connection cable.
► Disconnect the pneumatic connections.
► Replace the complete wafer changer unit.
► Define the following settings:
– 9.2.9.1 "Aligning the height of the toothed belt axis on the lift" [}213]
– 9.2.9.2 "Aligning the height of the toothed belt axis at the changer" [}213]
10 Option Die Attach Unit SWS
10.1 Installing the Option Die Attach Unit SWS
Service Manual SIPLACE Wafer System (SWS) 11/2018 215
10 Option Die Attach Unit SWS
10.1 Installing the Option Die Attach Unit SWS
10.1.1 Description of the Die Attach Unit SWS
The Die Attach Unit SWS is delivered as a module assembly.
Item number module assembly [00384741-xx] Die Attach Unit SWS
Retrofit kit [00519728-xx] Die Attach Unit SWS
Fig.279:
The Die Attach Unit SWS is delivered as an assembly with the following mounted single parts:
Item Item no. Designation
1 00385866-xx Crank lifting unit
2 00385955-xx Cyber motor brushless
3 Storing location for the crank filling piece
4 03068603-xx Solenoid valve
5 00385749-xx Board AD-DA Rev.0 → Wired with sensors
6 00379104-xx Board AD-MOT2 Rev.0 → Wired with motors
7 03042562-xx M5x16 fastening screw
8 03042562-xx M5x16 fastening screw
9 03042562-xx M5x16 fastening screw (under the solenoid valve [03068603‑xx] → turn
away!)
10 00385562-xx Reject box right complete
The two boards [00385749-xx] (5) and [00379104-xx] (6) are already wired with the sensors and
motors.
When installing the Die Attach Unit SWS all you have to do is to connect the boards to the SWS.
The cables lie prepared at the installation position.
10 Option Die Attach Unit SWS
10.1 Installing the Option Die Attach Unit SWS
216 Service Manual SIPLACE Wafer System (SWS) 11/2018
10.1.2 Initial situation
Fig.280:
Item Item no. Designation
1 00386236-xx Cable motor current MOT-1 for Rotate Die Attach Connector 2x2
2 00386234-xx Cable signals ENCH1 for Rotate Die Attach Connector RS232
3 00386235-xx Cable signals ENCH2 for Flip Tool X Connector RS232
4 00386237-xx Cable motor current MOT-2 for Flip Tool X Connector 2x2
5 00386918-xx Cable → NOT USED
6 00386020-xx Cable Control IN/OUT at ST1-12 Connector 2x6
7 Connection hose vacuum
8 Grounding cable for Die Attach Unit SWS
