4 SWS installation and removal for SIPLACE CA machines 4.1 Removing the SWS Service Manual SIPLACE Wafer System (SWS) 11/2018 59 4 SWS installation and removal for SIPLACE CA machines 4.1 Removing the SWS The SWS needs t…
3 SIPLACE wafer system (SWS) function
3.3 Pick and transfer process in detail
58 Service Manual SIPLACE Wafer System (SWS) 11/2018
Fig.38: Positions flip head/die attach segment
●
Flip head transfer position
●
Acceptance or reject position
●
Transfer position of die attach segment on placement head
4 SWS installation and removal for SIPLACE CA machines
4.1 Removing the SWS
Service Manual SIPLACE Wafer System (SWS) 11/2018 59
4 SWS installation and removal for SIPLACE CA
machines
4.1 Removing the SWS
The SWS needs to be removed from the SIPLACE CA in order to perform maintenance tasks on
components which are not accessible from above or from the front.
► Disconnect the SWS from the power supply.
DANGER
Do not damage the placement head
Make sure that the gantries are not over the relevant SWS. When removing the fastening
screws, the SWS might move upwards and could damage the placement head if it is above
it!
DANGER
Only SIPLACE engineers or qualified persons
Only SIPLACE engineers or qualified people are permitted to set up and commission the
SWS.
► Observe the applicable accident prevention regulations.
► Do not lie underneath the SWS when installing it. All assemblies and parts can be fit-
ted from above. If you nevertheless have to carry out assembly work underneath, then
you must secure the SWS by suitable means. The fork lift must not be used as the
only support!
► Make sure that the gantries are positioned over the PCB conveyor, so that the head
space is not limited during assembly. This helps prevent the risk of injury.
► Two people are needed to install the SWS:
– one person performs the required installation tasks,
– the other person observes the positional stability of the raised SWS during installa-
tion.
► Wear special safety boots to protect your feet.
Positioning the fork lift
WARNING
Lifting the SWS
Please note the following points before you raise the SWS in order to avoid irreversible
damage to the SWS:
► Make sure that the forks are evenly loaded when you lift the SWS. A firm support
between the forks and SWS will prevent the SWS tilting when it is raised.
► We recommend that a second person watch the SWS as it is raised, and make sure
that it does not tip to one side when lifted with the fork lift.
Tools and equipment
The following tools and equipment are required for installing and removing the SWS:
●
Standard tools
●
Torque wrench
●
Fork lift/pallet jack, possibly wooden timbers for support
●
Screwed feet
4 SWS installation and removal for SIPLACE CA machines
4.1 Removing the SWS
60 Service Manual SIPLACE Wafer System (SWS) 11/2018
Procedure
► Carefully push the fork lift/pallet jack under the SWS.
► Open the forks until the SWS contact surfaces sit evenly on the forks.
The SWS 12 is fixed into place in the placement machine with the following screws:
●
3x M8
●
2x M6
●
4x M6 for bracket (2 on location, 2 on wafer table)
●
1 x fitting screw
NOTICE
Observe the specified order
When removing the screws, always observe the following order.

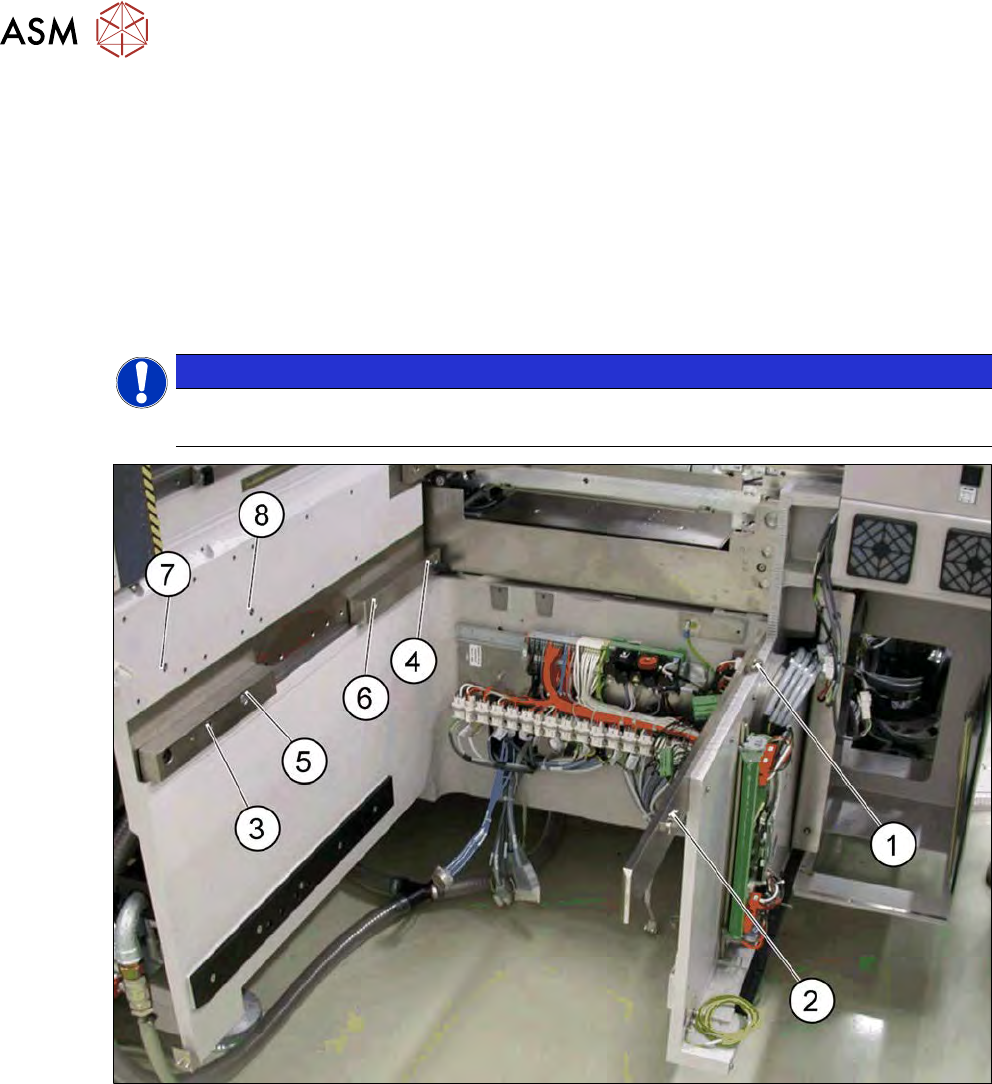

Fig.39: Positions of screws for SWS 12 on SIPLACE CA location
1 M8 2 M8
3 Fitting screw 4 M6 (with clamping claw)
5 M6 6 M8 for clamping claw
7 M6 for bracket 8 M6 for bracket
► Remove the two M6 screws, which fasten the fixture bracket, from the wafer table.
► Remove the two M6 screws (7) and (8), which fasten the bracket for fixing the wafer table into
place.
► Remove the relevant rails and covers.
► Remove the fitting screw (3).
► Remove the M8 screws (1, 2 and 6) one after the other.
► Remove the M6 screws (4) and (5) one after the other.
