16 Software
16.2 Installation of operating system
442 Service Manual SIPLACE Wafer System (SWS) 11/2018

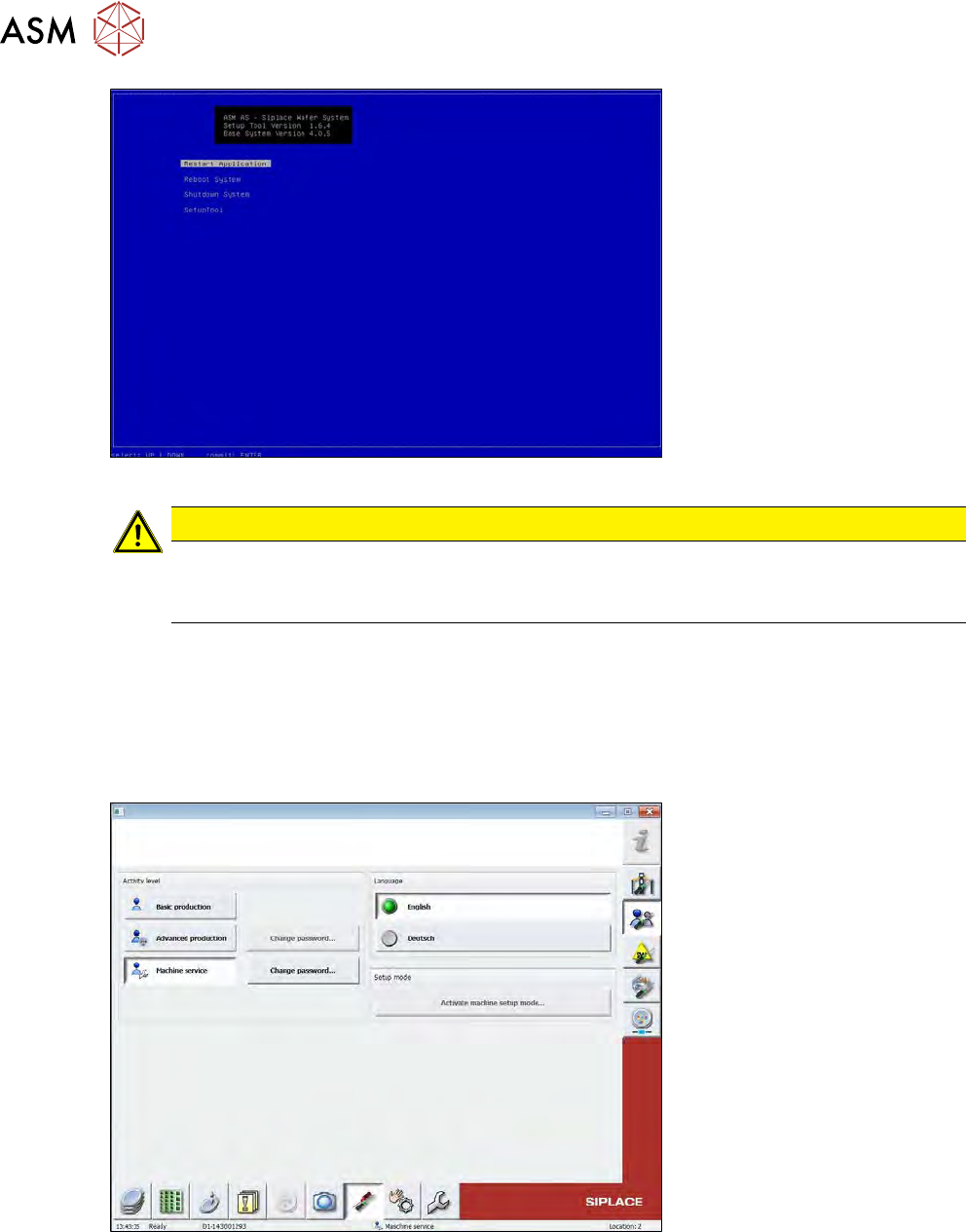

Fig.666:
CAUTION
► Press the emergency STOP button on the SWS or at the station, to prevent initializa-
tion of the SWS.
► The calibration data must always be imported before initializing the SWS.
16.2.3 Restoring the data
16.2.3.1 Restoring the Halcon license
► Switch over to the page "Settings -> User Settings" and select the activity level "Machine
service".
The password is: service1
Fig.667:

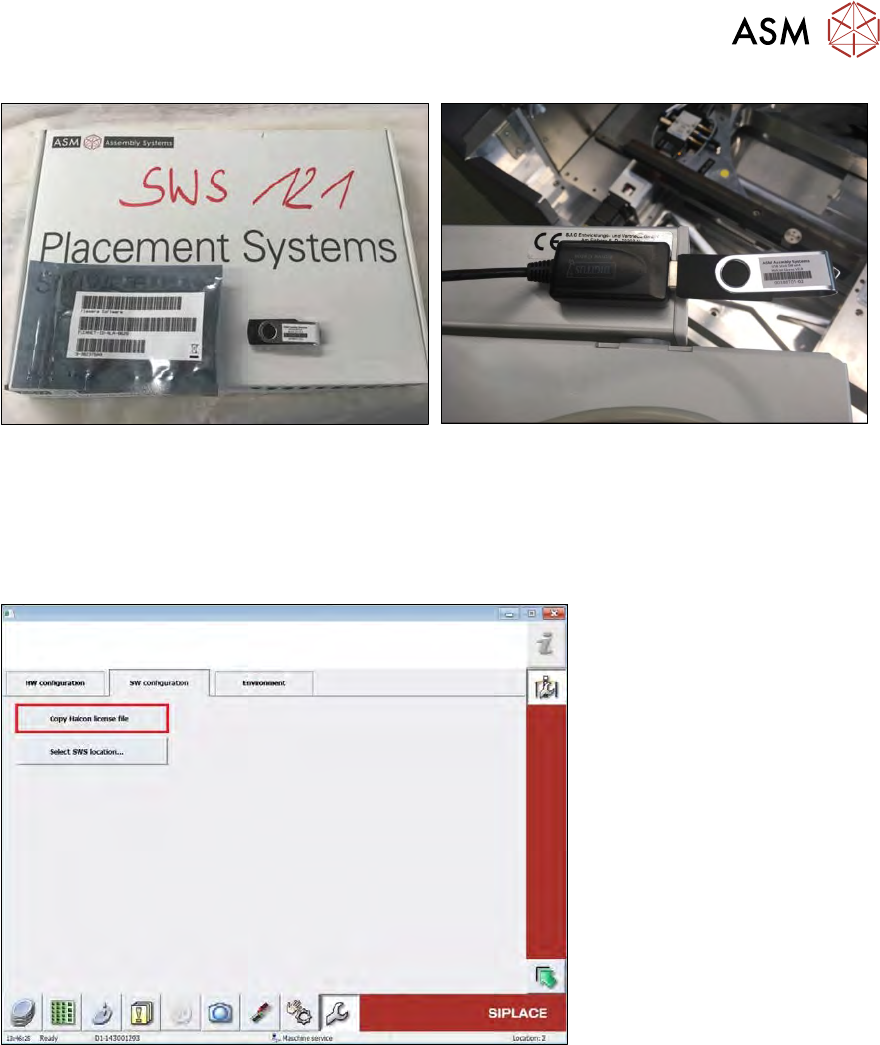

► If available, insert the USB stick with the Halcon license from the SWS software package into
the USB port behind the SWS keyboard (see below).
16 Software
16.2 Installation of operating system
Service Manual SIPLACE Wafer System (SWS) 11/2018 443
Fig.668:
► If you have saved the Halcon file on a USB stick because the software package was not yet
available, insert this USB stick into the USB port behind the SWS keyboard (see above).
It does not matter in which folder on the USB stick the license was saved.
► Switch over to the page Service -> Machine configuration -> SW configuration and select
"Copy Halcon license".
Fig.669:
The license will now be searched for in all folders on the inserted USB stick and then automatically
copied into the license folder on the SWS BoxPC.
► Restart the SWS, to activate the Halcon license and use the Vision system.
16 Software
16.2 Installation of operating system
444 Service Manual SIPLACE Wafer System (SWS) 11/2018
16.2.3.2 Selecting the SWS location
The SWS location can be selected in the GUI in more recent GUI versions (>3.02.x).
If the location was correctly selected during the GUI installation, there is no more need for action.
► To select the location, switch over to the page "Service -> Machine configuration -> SW
configuration" and click on "Select SWS location".

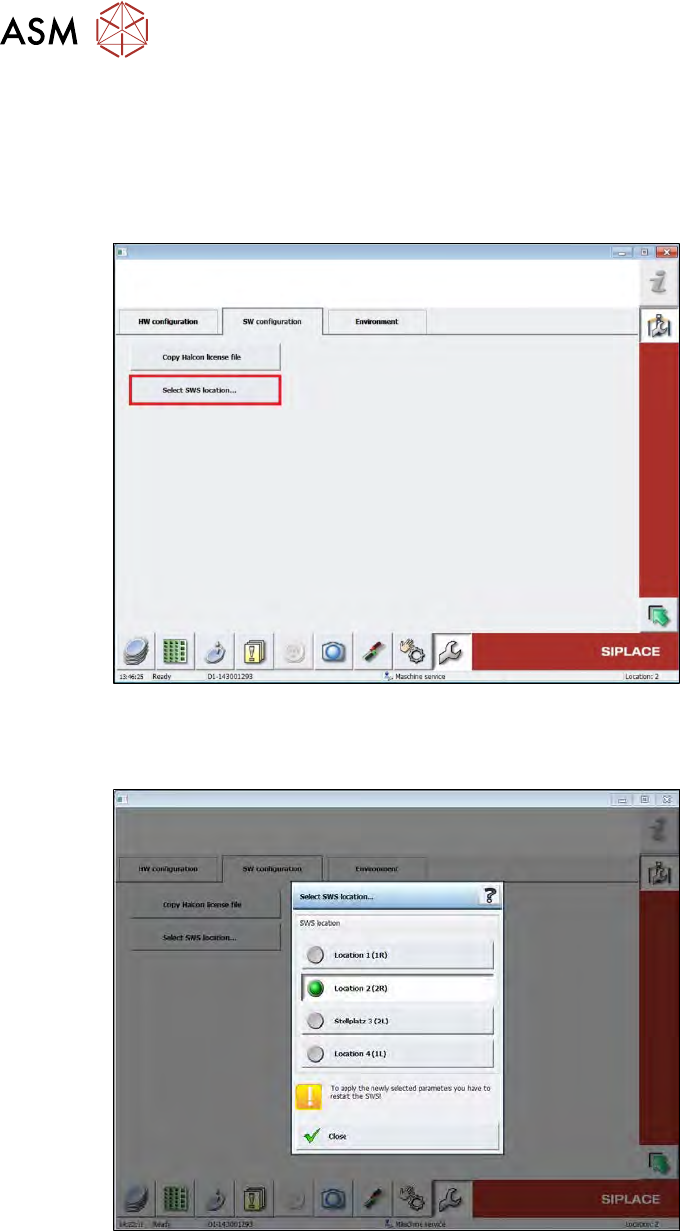

Fig.670:
The location can then be selected in the window shown below.
► To apply the change in location, you need to restart the SWS.
Fig.671:
► If this function is not available in older GUI versions, you will need to set the location using the
Setup Tool.
