7 Die ejector
7.5 Mechanical adjustment of the die ejector unit in the Z direction (focus)
Service Manual SIPLACE Wafer System (SWS) 11/2018 165
7.5.2 Replacing the vacuum on the die ejector
Switching on and off
The solenoid valve switches the vacuum for suction and ejection of the foil on the die ejector on
and off.
► Approach the solenoid valve.
► In the toolbar, select the button Manual Settings
.
► Go to the Manual Settings view and select the button Manual Subsystems
and then
select IOs (see 14.2 "Manual settings" [}358]).
► Select the Die ejectortab .
●
Vacuum ejection unit switches the vacuum on and off.
Replacing the solenoid valve
► Unplug the pneumatic and electrical connections on the solenoid valve (OUT10).
► Remove the fastening screws and then remove the solenoid valve.
► Fit the solenoid valve and restore the pneumatic and electrical connections.
► Check the solenoid valve for functionality and air-tightness:
– Switching on and off
– Check needle unit for air-tightness.
7.5.3 Solenoid valve for moving the Z axis up and down
Switching on and off
The solenoid valve switches the lifting cylinder for moving the Z axis up and down.
► Approach the solenoid valve.
► In the toolbar, select the button Manual Settings
.
► Go to the Manual Settings view and select the button Manual Subsystems
and then
select IOs (see 14.2 "Manual settings" [}358]).
► Select the Die ejectortab .
●
DO07 Ejector unit upmoves the Z axis up.
●
DO08 Ejector unit downmoves the Z axis down.
Two proximity switches monitor the two end positions at the Z axis top and bottom.
► Check the input signals for the proximity switch:
– DI05 Ejection unit down
– DI06 Ejection unit up
Replacing the solenoid valve
► Unplug the pneumatic and electrical connections on the solenoid valves OUT7 and OUT 8.
► Remove the fastening screws and then remove the solenoid valve.
► Fit the solenoid valve and restore the pneumatic and electrical connections.
► Check the solenoid valve for functionality.
– Switching on and off
7 Die ejector
7.5 Mechanical adjustment of the die ejector unit in the Z direction (focus)
166 Service Manual SIPLACE Wafer System (SWS) 11/2018
7.5.3.1 Replacing the proximity switch

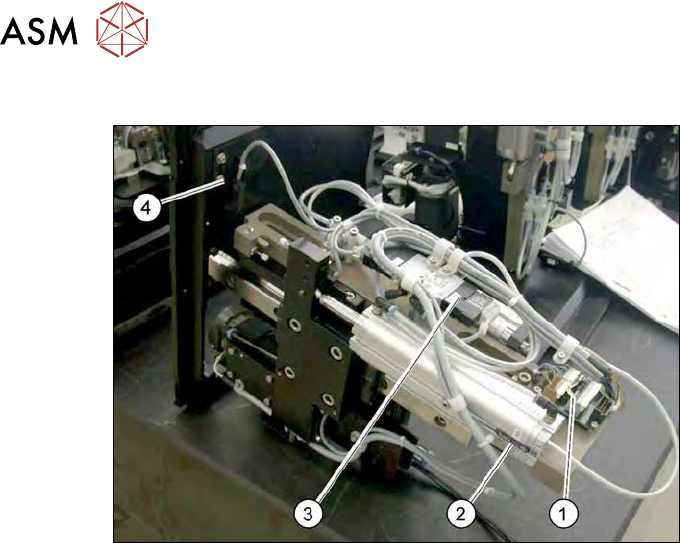

Fig.214: Proximity switch and AD board on the die ejector
1. AD board
2. Proximity switch for the bottom position
3. Solenoid valve
4. Proximity switch for the top position
The proximity switch (2) for the bottom Z axis position is located on the cylinder.
The proximity switch (4) for the top Z axis position is located on the die ejector base plate.
► Mark the original installation position of the proximity switch with a pen.
► Remove the screw on the relevant proximity switch.
► Unthread the connection cable as far as the AD board (1).
► If there is no marking present: use the circuit diagram folder for help and mark the cables con-
nected.
► Unplug all connections from the terminal strip.
► Fit the new proximity switch to the marked position.
► Fit the new proximity switch.
► Run the connection cable to the AD board (1).
► Connect the connection cable to the relevant terminal strip.
► Make sure that the cables do not rub against any part or get trapped. Fix and gather the
cables together with cable ties, where necessary.
► Check the input signals for the proximity switch.
7 Die ejector
7.5 Mechanical adjustment of the die ejector unit in the Z direction (focus)
Service Manual SIPLACE Wafer System (SWS) 11/2018 167
7.5.4 Replacing the fork light barrier on the ejection system

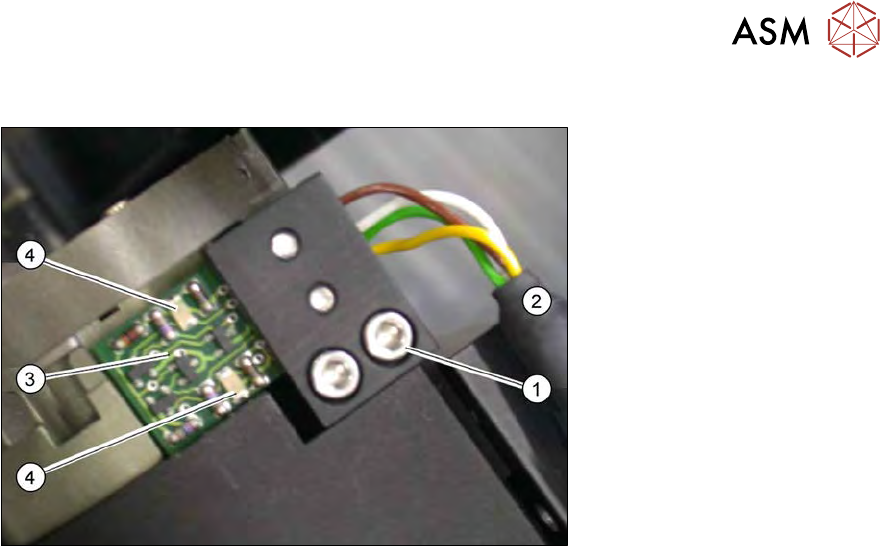

Fig.215: Fork light barrier on the ejection system (detailed view)
The fork light barrier on the ejection system monitors whether the needles are moved in or out. Two
LEDs(4) shine red on the board if the needles are moved out. When the fork light barrier is in its
neutral position, the LEDs will not shine.
► Remove the two fastening screws (1) and then remove the board (3) together with the black
bracket.
► Unplug the connection cable (2) from the board.
► Remove the two screwsfastening the board.
► Fit the new board onto the black bracket. The board must be fitted flush on the motor base
unit.
► Plug in the connection cable and screw the board with the black bracket back into place on
the ejection system.
► Check the input signals.
► Go to the toolbar and select the button Service Settings → Motor settings (see 14.1 "SWS
GUI - service settings" [}357]).
► Select the button GallilMotion_axis2 and then the tab Axis status.
ð The displays shine:
– Forward Limit active
– Reverse Limit active
► Select Initialize axis.
ð The Reverse Limit active view will shine briefly. → All OK.
