Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-120
12.16.5 Operation Options
12.16.5.1 <Action> button of the “Production” tab

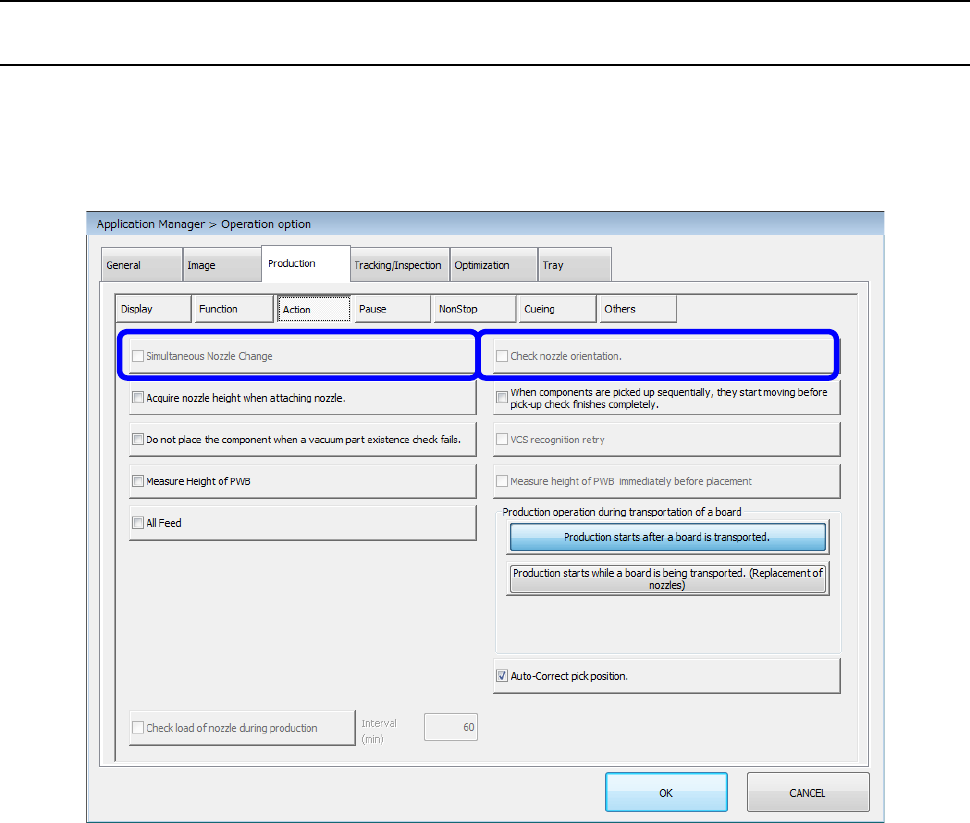

When you press the <Action> button, the “Production action option setting screen” appears. When
you select [Device enable] – [Head], and then enable the “Manual nozzle” check box, the
“Production action option setting” screen is displayed as shown below. You can set neither the
“Simultaneous Nozzle Change” check box nor “Check nozzle orientation” check box.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-121
12.16.5.2 <Others> button of the “Production” tab

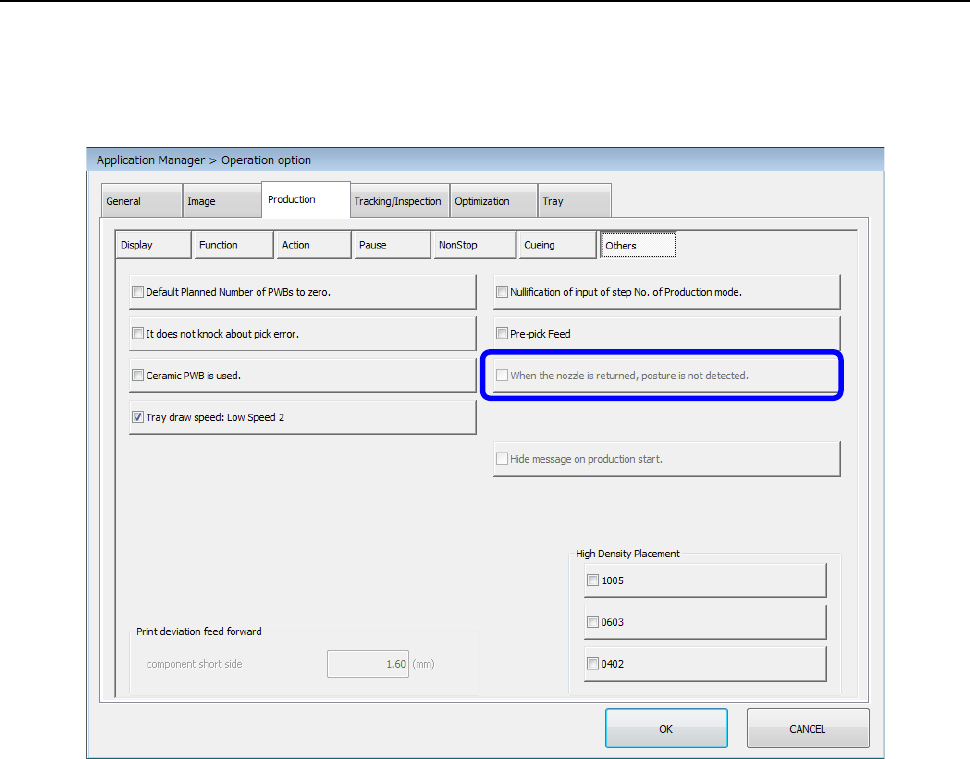

When you press the <Others> button, the “Production other options setting screen” appears.
When you select [Device enable] – [Head], and then enable the “Manual nozzle” check box, the
“Production other options setting screen” is displayed as shown below. You cannot set the “When
the nozzle is returned, posture is not detected” check box.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-122
12.16.6 Manual Control
12.16.6.1 ATC control

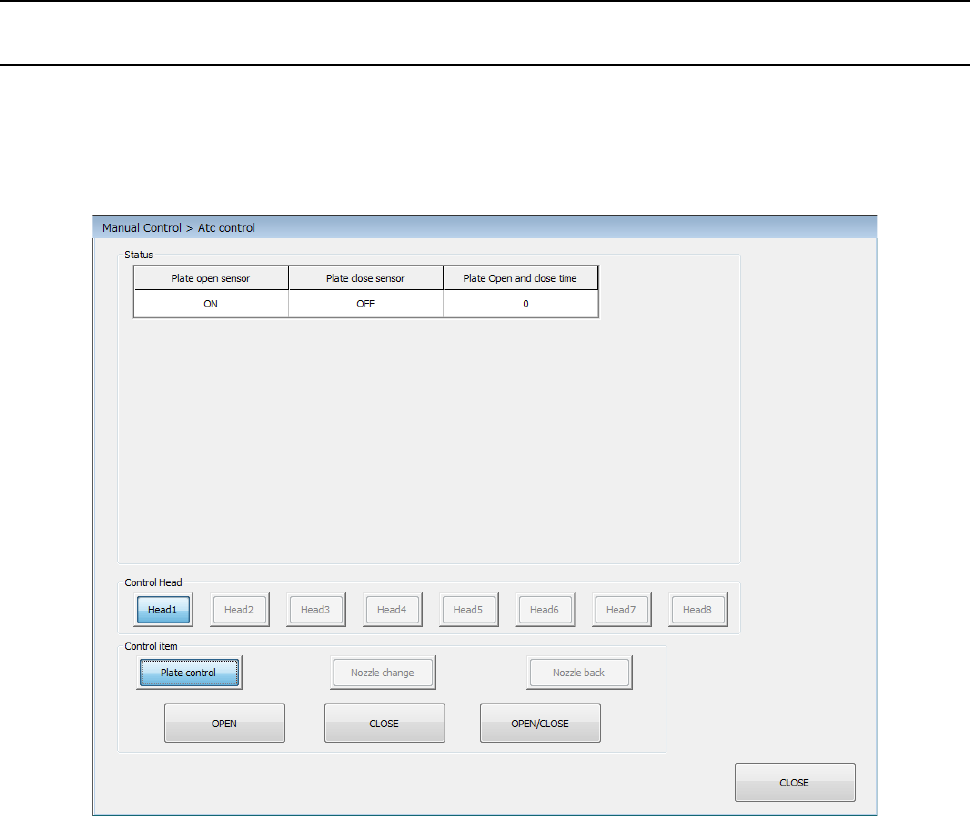

When you select [Others] – [ATC control] from the “Manual Control” screen, the “ATC control”
screen appears. When you select [Device enable] – [Head], and then enable the “Manual nozzle”
check box, the “ATC control” screen is displayed as shown below.
You can control the <Place control> button only.
