Part 1 Basic Operation Chapter 4 Creating a Production Program

4-26

4.3.3.4 Circuit Layout

Specify the circuit position and angle on this screen. Only when you select the “Non-matrix circuit”

radio button in the “PWB configuration” column of the “Dimension setup” tab, you can select these

items.

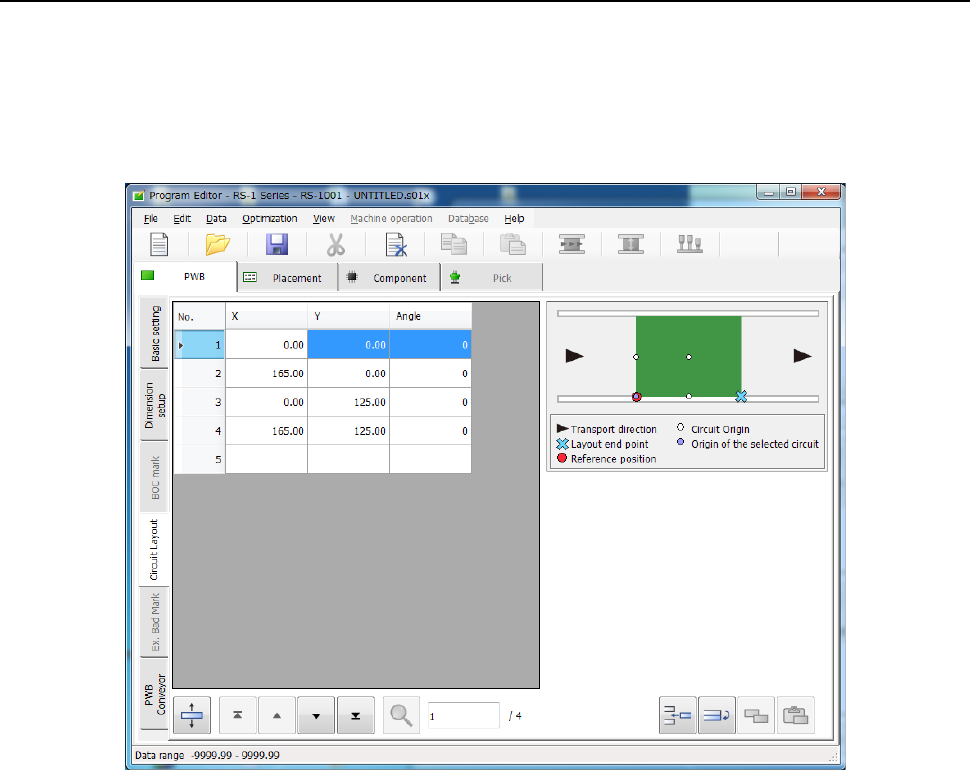

When you select the “Circuit Layout” tab located on the lower left corner of the “Dimension setup”

screen, the following screen appears.

(1) XY

Enter the position of the circuit origin viewed from the board origin.

(2) Angle

Enter the angle of a circuit.

(3) Skip

When you select to skip, the system does not place any component at all placement

positions of the corresponding circuit.

This item is displayed only when you select the <Used> button for the menu item “Circuit to

Be Placed” on the “Basic setting” screen.

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-27

When you select the <Batch change of circuits to be skipped> button, you can specify circuits to

be skipped at a time by specifying the area of circuits to be skipped.

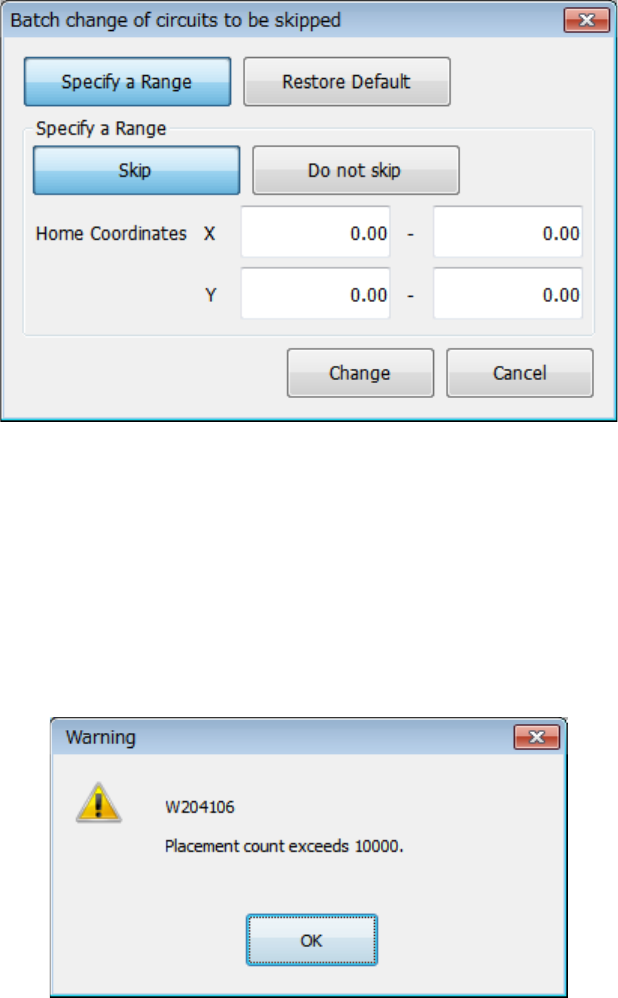

When you press the <Batch change of circuits to be skipped> button, the following screen

appears.

(1) Specify a Range

Specify whether to skip circuits whose origins are located in the area specified with the X

and Y coordinates set in the “Specify a Range” column.

(2) Restore Default

This button changes the skip settings of all circuits to the default settings.

When the total number of placement points exceeds 10,000 even though the number of

circuits is less than the regulated value, the following message appears on the screen.

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-28

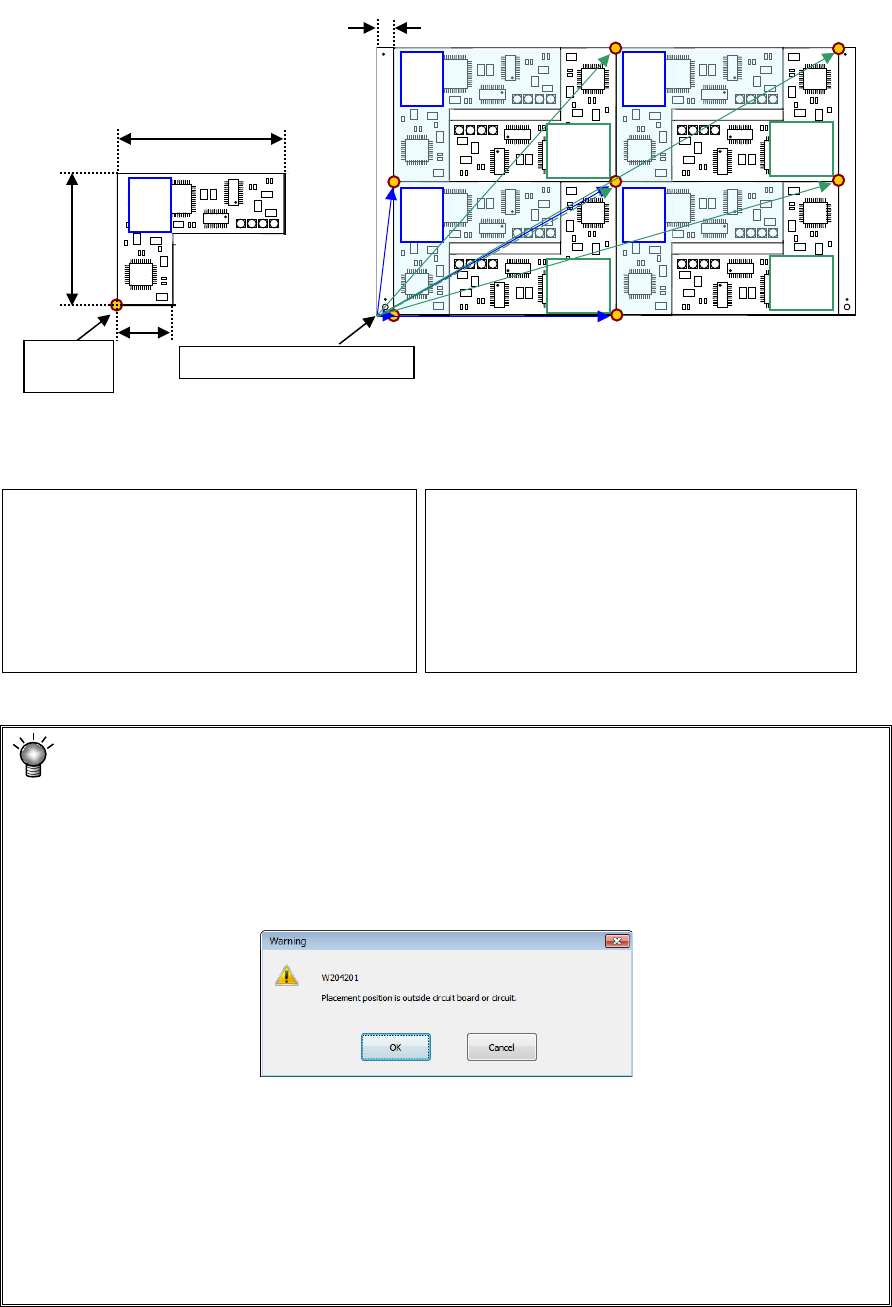

Example: Data entry example for a multi-plane non-matrix PWB

On the assumption that the lower left corner is the PWB position reference and the lower left

circuit is the reference circuit, an example of “circuit arrangement” is shown below.

* This varies depending on the transport direction and reference (front and rear).

The setting method is the same as that for "multi-plane matrix board."

Area check

When you input the data screen (for example, when you select the “Placement data”

screen), the system performs an area check, that is, it checks that the entered

coordinates of the BOC mark and those of the bad mark are on a PWB (or a circuit), or

all circuits are located within a PWB.

If the system detects an error, the following warning message appears on the screen.

• When you click the <OK> button, the system resumes switching the screen to the

selected one.

• When you click the <Cancel> button, the system stops switching the screen

* If the warning message shown above appears on the screen, review each value

entered on the PWB data.

(Check the settings of “PWB layout offset,” “First circuit position,” “Circuit layout

offset” and each coordinate entered on the “Circuit layout” screen especially.)

PWB dimensions X=330 Y=200

PWB layout offset* X=330 Y=0

Circuit dimension X=150 Y=100

Circuit. Layout offset X=0 Y=0

Circuit No.1 X=15 Y=0 θ=0

Circuit No.2 X=165 Y=100 θ=180

Circuit No.3 X=165 Y=0 θ=0

Circuit No.4 X=315 Y=100 θ=180

Circuit No.5 X=15 Y=100 θ=0

Circuit No.6 X=165 Y=200 θ=180

Circuit No.7 X=165 Y=100 θ=0

Circuit No.8 X=315 Y=200 θ=180

0°

180°

Circuit

origin

Board reference position

0°

120

100

Circuit 1 Circuit 2 Circuit 3 Circuit 4

Circuit 5 Circuit 6 Circuit 7 Circuit 8
