Part 1 Basic Operation Chapter 2 Production
2-113

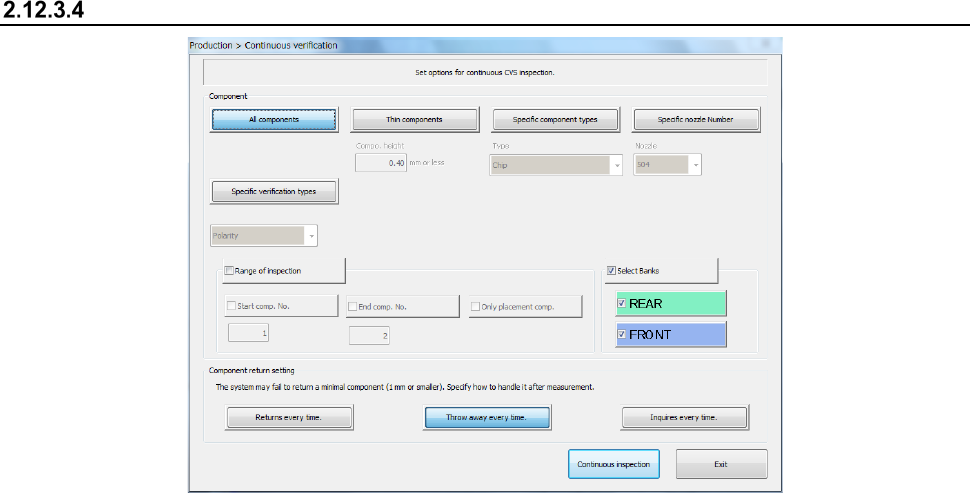

Verify All check
(1) Component
Specify whether to check only components that satisfy a certain requirement(s) among
components whose data is stored in Component data.
1) All components
When you check this radio button, the system checks all components whose data is
specified in Component data.
2) Thin components
This button instructs the system to check only components whose height is specified in
the edit box or lower.
3) Specific component types
This button instructs the system to check only components that use a nozzle selected in
the combo box.
4) Specific nozzle Number
This button instructs the system to inspect only components that use the nozzle
selected in the combo box.
5) Specific verification types
This button instructs the system to inspect only components whose verify type (resistor,
capacitor, or polarity) is selected.
(2) Range of inspection
Check this check box if you want to check the components whose numbers are specified here
among the components that satisfy the requirement(s) specified at the “Inspection type”
column.
When you check this check box, you can specify the following items.
1) Start comp. No.
Enter the number of the first component to be checked here.
The system performs a verify check and changes the value in the “Start comp. No.”
(start component number) edit box.
2) End comp. No.
Enter the number of the last component to be checked here.
The system performs a verify check and changes the value in the “End comp. No.” (end
component number) edit box.
3) Only placement comp.
Check this check box if you want to check only components whose data is stored in
Placement data also.
Part 1 Basic Operation Chapter 2 Production
2-114
(3) Select Banks
This button allows the system to check components on the specified bank under the
requirements selected for the component.
(4) Component return setting
Select how to handle a minimal component after inspecting it.
1) Returns every time
The system discards a component according to the setting of the “Comp. reject to” field.
2) Throw away every time
The system returns a component to its original position.
3) Inquires every time
The system displays the “Question” dialog box every time it finishes checking a
component.
(5) <Continuous inspection> button
When you press this button, the system starts continuous check.
(6) <Exit> button
When you press this button, the previous screen is displayed.
CAUTION
Immediately after you press the <Continuous inspection> button, the
head starts moving and the system starts inspection.
To avoid injuries, do not put your hands inside the machine or keep
your face or head away from the machine.
Before pressing the < Continuous inspection> button, check to see if
there is no one who is working the internal parts of the machine.
Before pressing the < Continuous inspection > button, check to see if
there is no one who is near the machine and may be injured.
Before pressing the < Continuous inspection > button, check to see if
there is no obstacle such as an adjustment tool that is located or
attached inside the machine and may prevent the machine from
operating normally.
Part 1 Basic Operation Chapter 2 Production
2-115
Progress of the check
While the check is continuously performed, data on a component being checked appears on the
screen, and the progress of the check and the corresponding check result are displayed on the
screen sequentially.
Aborting
To stop the inspection forcibly, press the <STOP> switch. The following message appears on the
screen.
To finish the current inspection, select the <Yes> button.
