Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-13

3) Insert the tray holder, separate the side plate and the lock holder in the place where the side

plate is in contact with the POSITIONING_PLATE, and lock it with the lock holder.

Note) Check to see if the tray holder is locked with the lock holder.

4) Detach it with the reverse procedures of the above.

Lock holder

Side plate

POSITIONING_PLATE

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-14

12.3 Installing the Matrix Tray Server (MTS)

This is a device to allow direct pickup by the main unit head and multiple-feed. (Rear bank

installation)

SR-1 can be used TR8SR, TR5SNX and TR5DNX.

Refer to the MTS Instruction Manual for details on handling and setting.

To avoid any accident caused by sudden activation of the machine, turn

off the power.

12.3.1 Setting up RS-1/1R (When a TR8SR is selected)

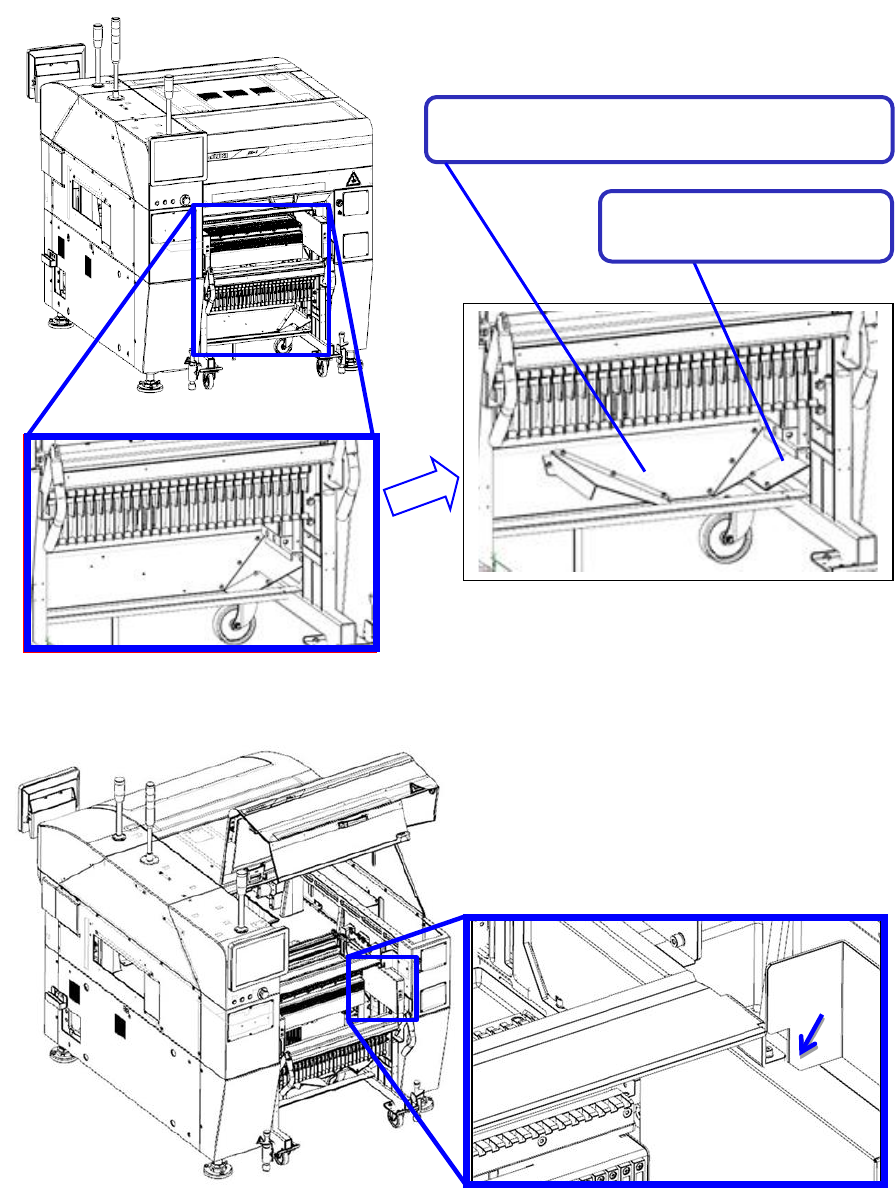

1) Removal of reel holder B. In the case of the fixed bank specification, it is placed on the floor

and removed as it is.)

CAUTION

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-15

2) Assembling the exhaust duct

3) Remove REGULATION_BAR_RS (M4 x 8 4 pcs)

TR8SR Assemble attached items M4×8

Reversed 180 degrees and

installed.
