Part 1 Basic Operation Chapter 4 Creating a Production Program
4-119

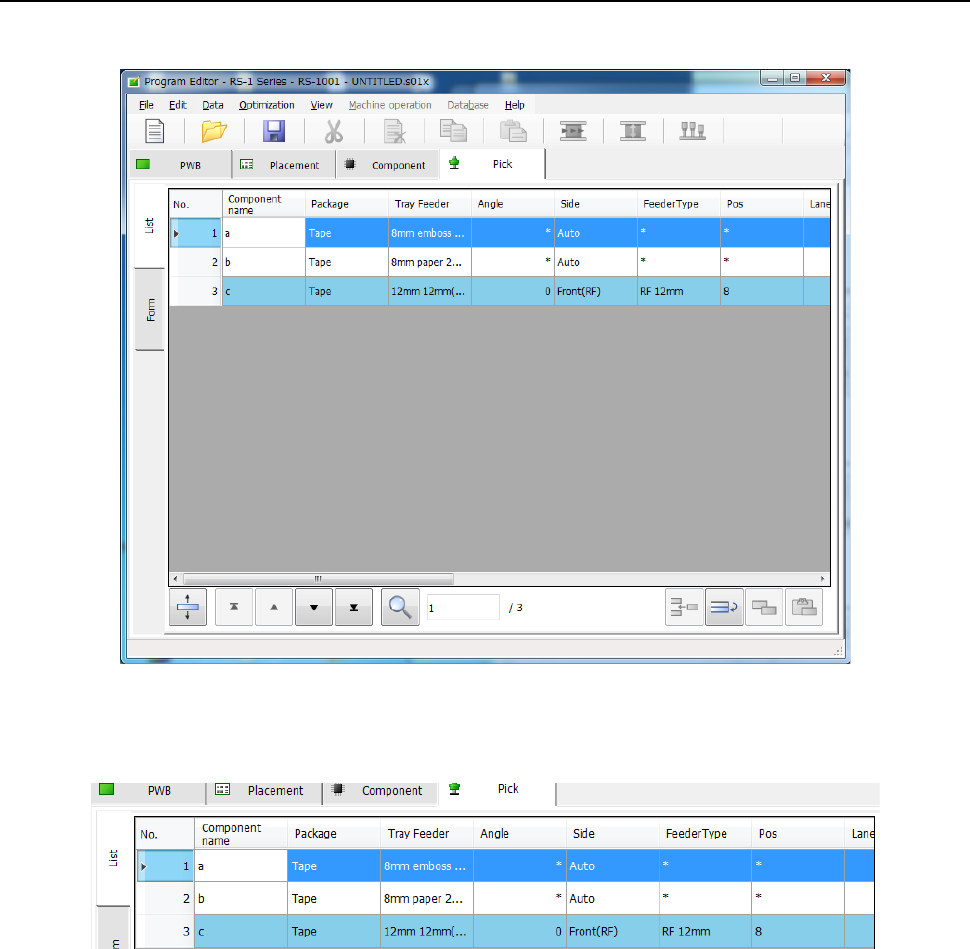

4.3.6.1 “Pick” data screen display
When you display the “Pick” data, the “List” screen opens at first.
When a feeder type is an electric feeder, an electric stick or an electric tray holder, their columns
are displayed in light blue on the “List” screen.
For Pick data that is to be taught automatically, you can check whether it has been already taught
automatically or not in the menu item “Auto teaching.”
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-120
When you select the “Form” tab on the “List” screen or when you double-touch the “List” screen,
the “Form” screen opens showing the corresponding data about the line where the focus is
located.
Values you entered on the “Placement” and “Component” data screens are displayed in the fields
of “Component name,” “Package” and “Tray Feeder” respectively.
You can edit the eight items, “Angle,” “Side,” “Position,” “Lane,” “Feeder Type,” “Status,” “Pick
position,” and “Remain” on the “Form” screen.
Editable or not
Menu item
Not editable
Component name
Package
Tray Feeder
Editable
Angle
Side
Position
Lane
Feeder Type
Status
Pick position
Remain
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-121
The range of slots of a feeder bank to be occupied varies depending on the tape widths and the
tape feeder models.
* To attach an EF series electric feeder on the machine, you have to install the RF-ETF
attachment on it.
Tape
width
Number of feeders
that can be
attached on the RF
bank
Number of feeders
that can be attached
on the RF/EF bank
Maximum number of
feeders that can be
attached on the bank
Number of
occupied slots
RF
EF
RF
EF
RF
EF
RF
EF
4 mm
56
－
56
－
112
－
1
－
8 mm
56
－
56
28
112
56
1
2
12 mm
28
－
28
28
56
56
2
2
16 mm
28
－
28
18
56
36
2
3
24 mm
18
－
18
18
36
36
3
3
32 mm
14
－
14
14
28
28
4
4
44 mm
11
－
11
11
22
22
5
5
56 mm
9
－
9
9
18
18
6
6
72 mm
6
－
6
－
12
－
9
－
88 mm
5
－
5
－
10
－
10
－
