Part 2 Detailed Description of Each Function Chapter 13 Supplementary Information for
Creating a Production Program
13-13

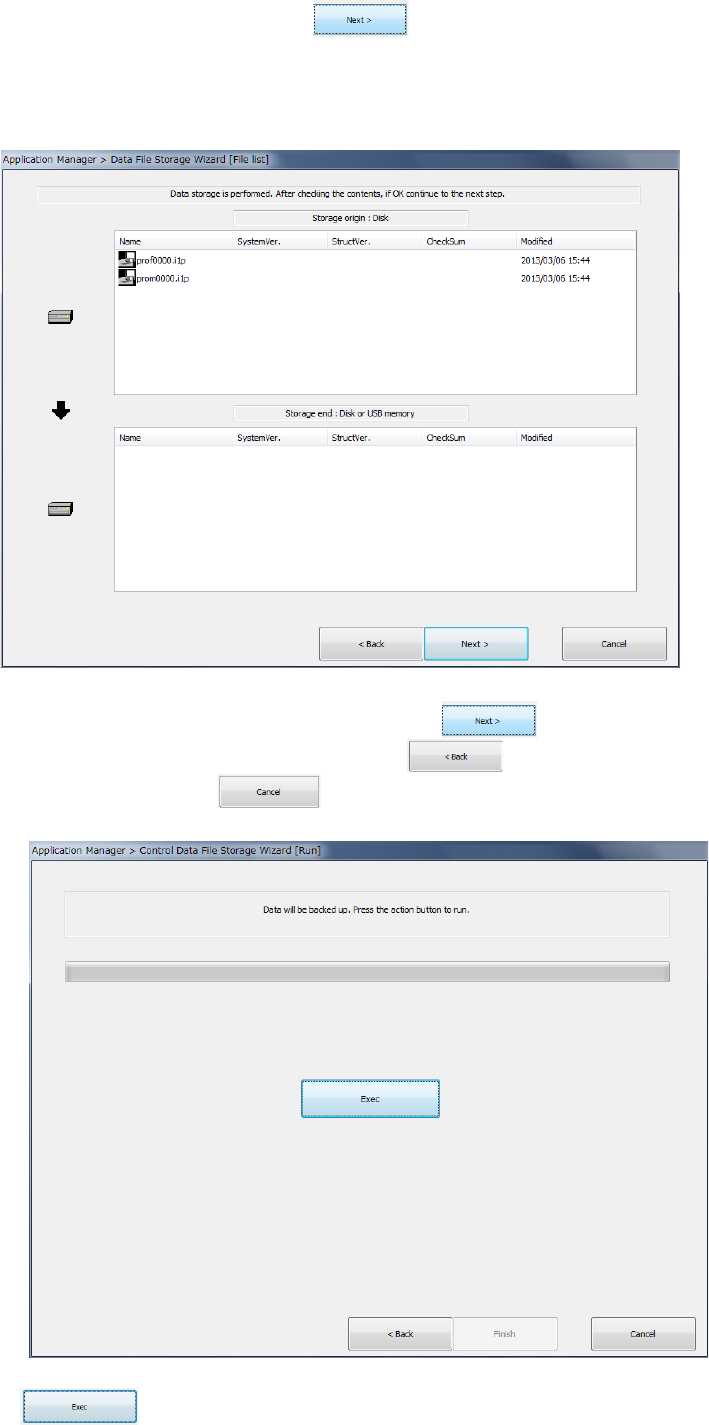

After specifying the destination, click the button. The following dialog box appears
on the screen.
(The screen shown below as an example indicates that control data will be saved on the hard
disk.)
After checking the data contents to be saved, click the button.
To change the operation to be performed, click the button.
To quit the operation, click the button.
Click the button to save the control data.
Part 2 Detailed Description of Each Function Chapter 13 Supplementary Information for
Creating a Production Program
13-14

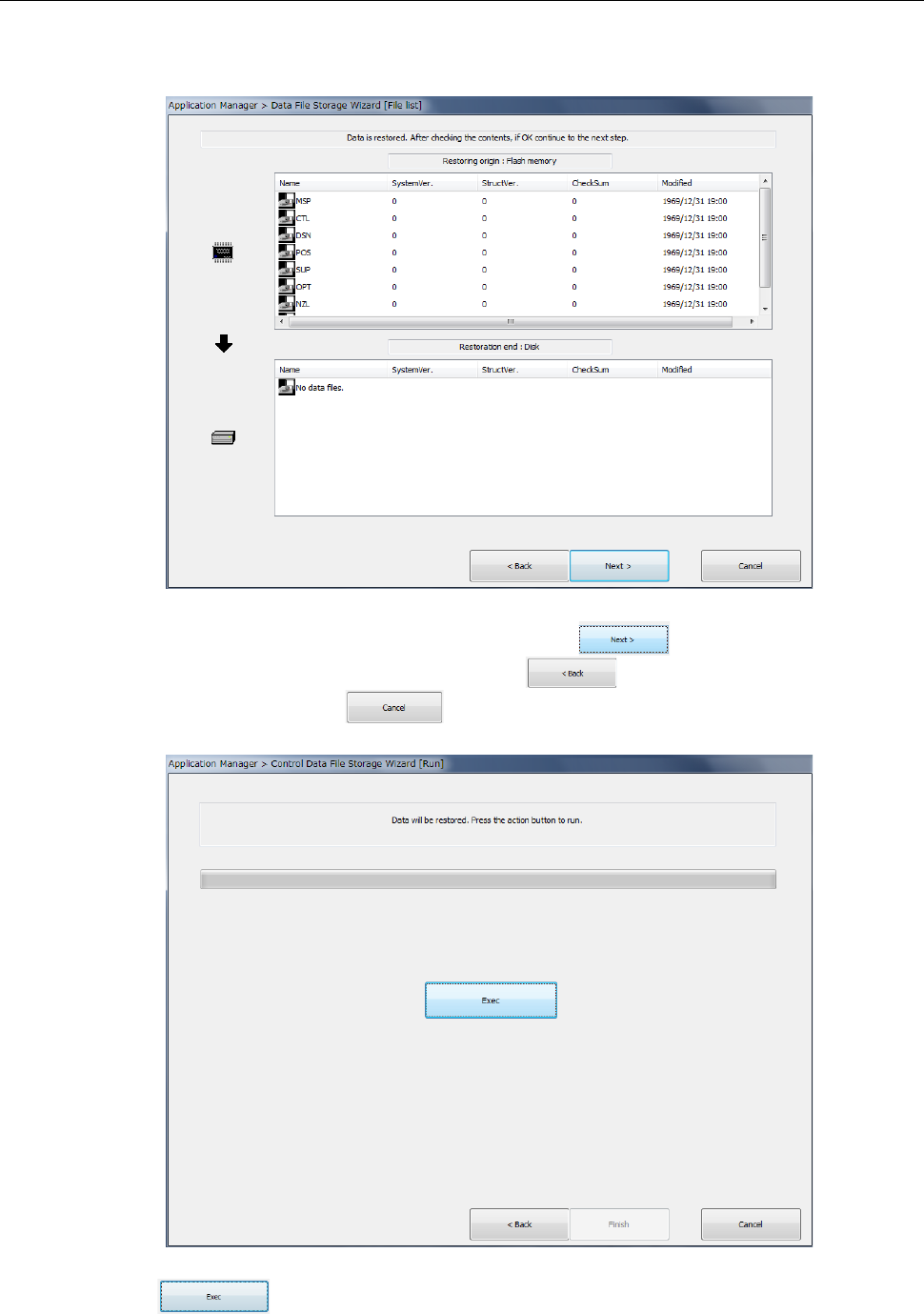

Restoring control data from the flash memory 13.2.3
When you select <3.Flash ===> SSD (serviceman only)> (restoration from the flash memory of
the main unit), the following dialog appears.
After checking the data contents to be restored, click the button.
To change the operation to be performed, click the button.
To quit the operation, click the button.
Click the button to restore the control data.
Part 2 Detailed Description of Each Function Chapter 13 Supplementary Information for
Creating a Production Program
13-15
Process for restoring a control data file form the USB memory or other media 13.2.4
When you select <4.SSD ===> SSD or USB (serviceman only)> (restoration from the USB
memory or the specified folder on the hard disk), the following dialog appears.
Press the file browsing button ( ) to specify which file to be restored.
To change the operation to be performed, click the button.
To quit the operation, click the button.
