Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-98

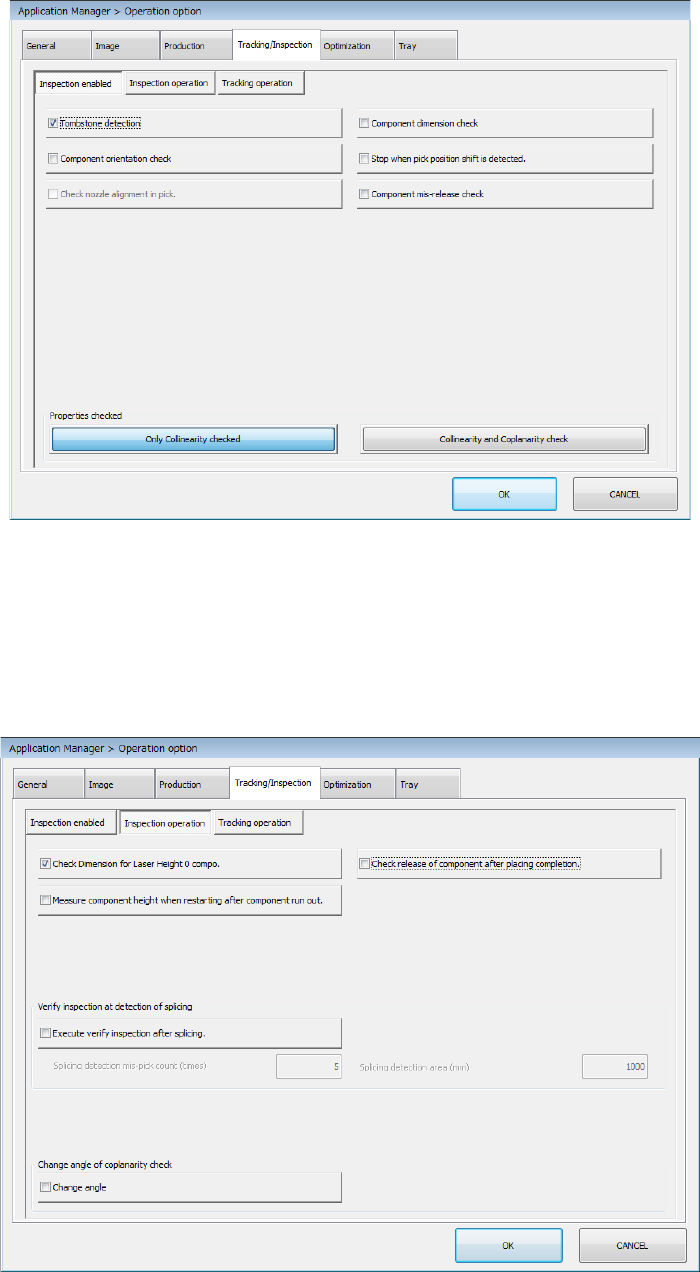

Select the “Machine Setup” icon from the menu, and then the [Operation option] command to open
the “Operation option” screen. Next, select the “Tracking/Inspection” tab, and then the “Inspection
enabled” tab.
Make a setting of each item.
* See Section 7.5.1 “Inspection enabled” for details.
Select the “Machine Setup” icon from the menu, and then the [Operation option] command to open
the “Operation option” screen. Next, select the “Tracking/Inspection” tab, and then the “Inspection
operation” tab.
Make a setting of each item.
* See Section 7.5.2 “Inspection operation” for details.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-99
12.14.6 Data editing

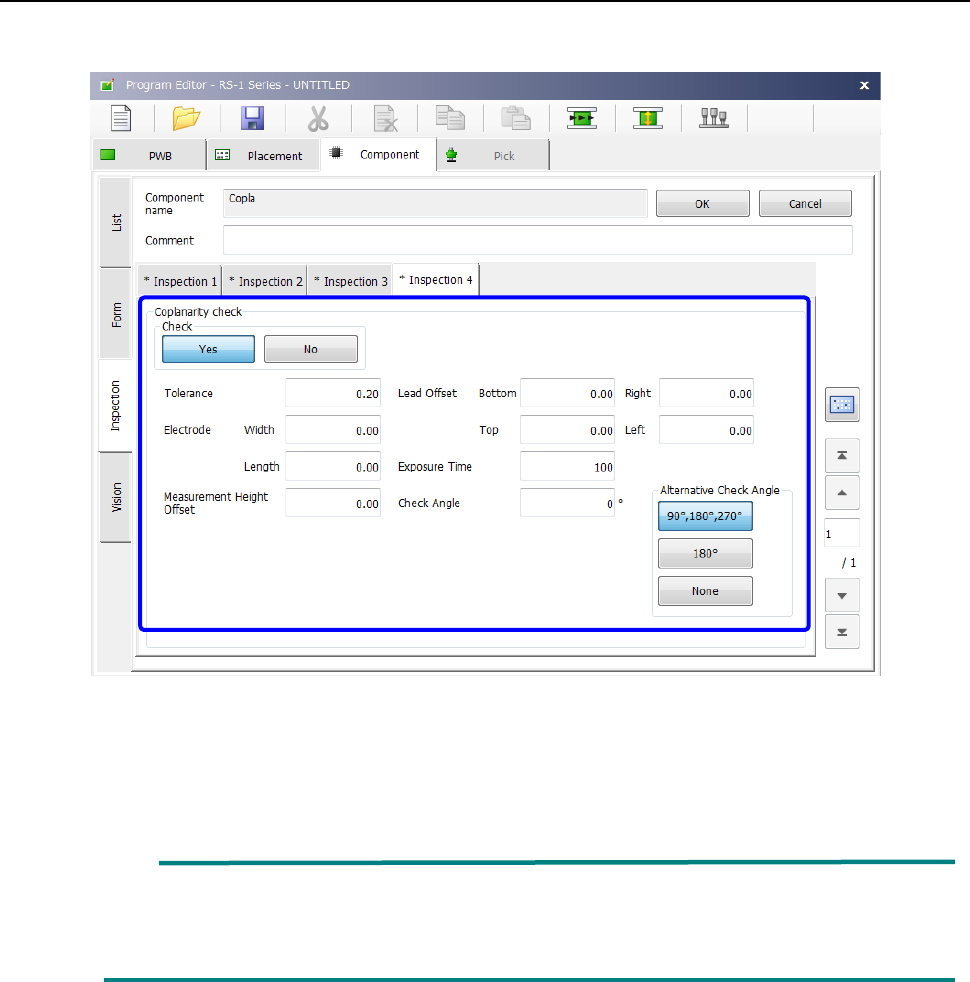

Start up the Program Editor, and then select the “Inspection 4” tab on the “Component” data screen.
Set the menu items displayed on the “Coplanarity check” column.
* See Section 4.3.5.2 (10) “Inspection 4” of Chapter 4 “Creating a Production Program” for
details of inspection.
When the lead width is less than 0.3 mm, enter the correct lead width and the correct
electrode size on the “Component” data screen. Or, the machine may not be able to
detect a terminal correctly. Be sure to enter the correct values.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-100
12.14.7 Editing sub-functions

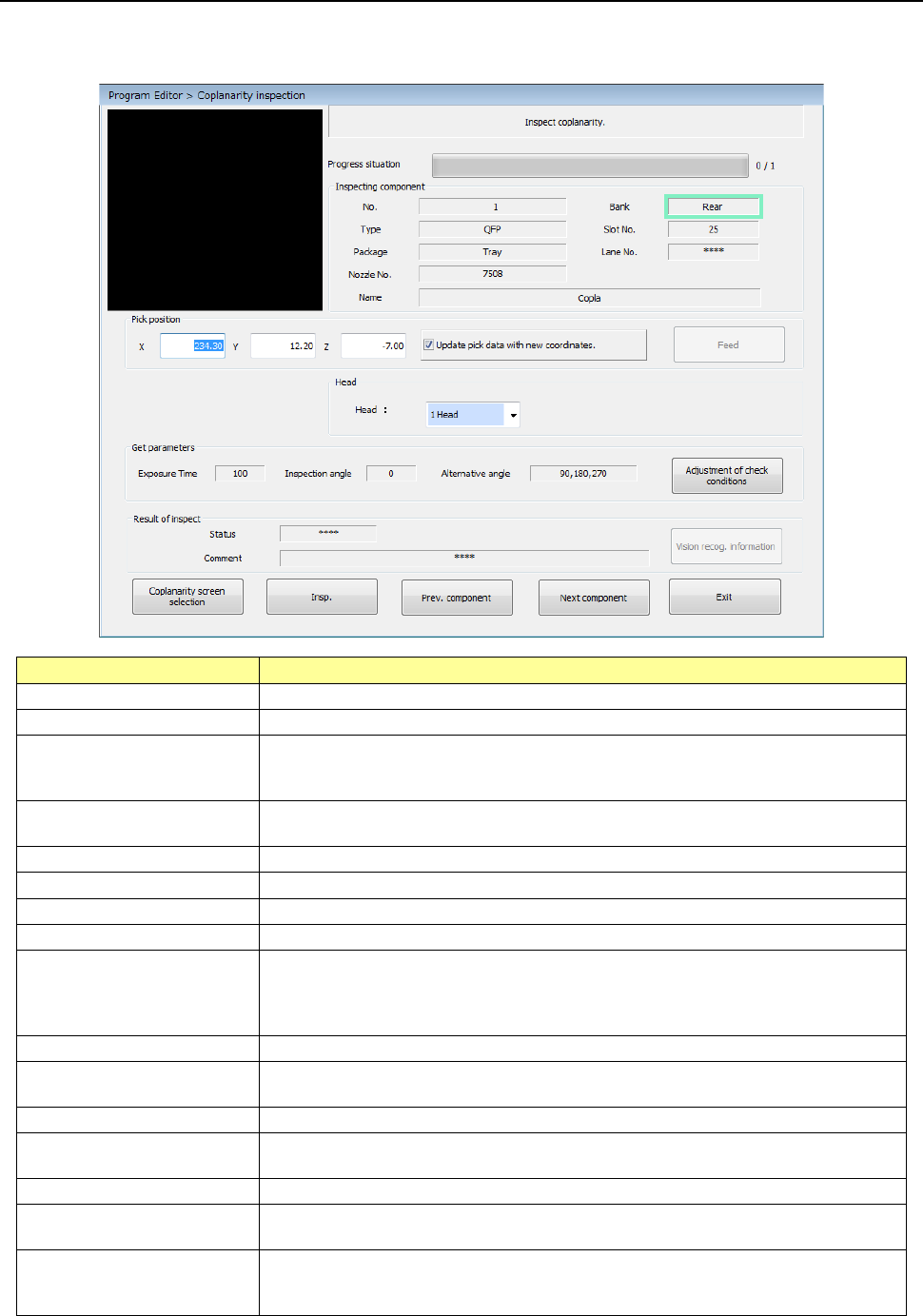

Start up the Program Editor, and then select the “Component” data screen. Next, select the
[Meas/Insp] command, and then the [Coplanarity inspection] command.
Item
Description
Component being inspected
Displays data on a component whose coplanarity is to be checked.
Pick position
Displays data on a position from a component is picked up.
Update pick data with new
coordinates.
Select whether to update Pick data with the taught results.
When you do not place a checkmark in this check box, the coordinates are applied
to Pick data this time only.
<Feed> button
Knocks a feeder once to feed components (except for components supplied with a
32-mm paper tape).
Head
You can select a head used to run a coplanarity check.
Exposure Time
Displays the exposure time of the camera built into the coplanarity sensor.
Inspection angle
Displays the coplanarity check angle.
Alternative angle
Displays the coplanarity alternative check angle.
Status
Displays the result of a coplanarity check.
OK: No error
NG: Error
****: A coplanarity check has not been run yet.
Comment
Displays the cause of an error if it occurs as a result of a coplanarity check.
<Vision recog. information>
button
Displays the recognition information obtained when a component is recognized with
a VCS.
<Insp.> button
Runs a coplanarity check.
<Prev. component> button
Changes the component pick-up position to that of the previous alternative
component.
<Next component> button
Changes the component pick-up position to that of the next alternative component.
<Exit> button
Quits a coplanarity check, and then switches the current screen to the previous
screen.
<Adjustment of check
conditions> button
If the machine does not run a coplanarity check stably, this button automatically
adjusts the inspection angle and the exposure time to obtain parameters that make
the machine measure a component stably.
