Part 2 Detailed Description of Each Function Chapter 9 Manual Control

9-31

(4) Control button

Control is executed by the control button. The control button display varies depending on

the control item.

1) Plate control

The open/close operation of the ATC slide plate is controlled.

Control the open/close operation by pressing the <OPEN> button, <CLOSE> button, or

<OPEN/CLOSE> button when the control item “Slide plate control” is selected.

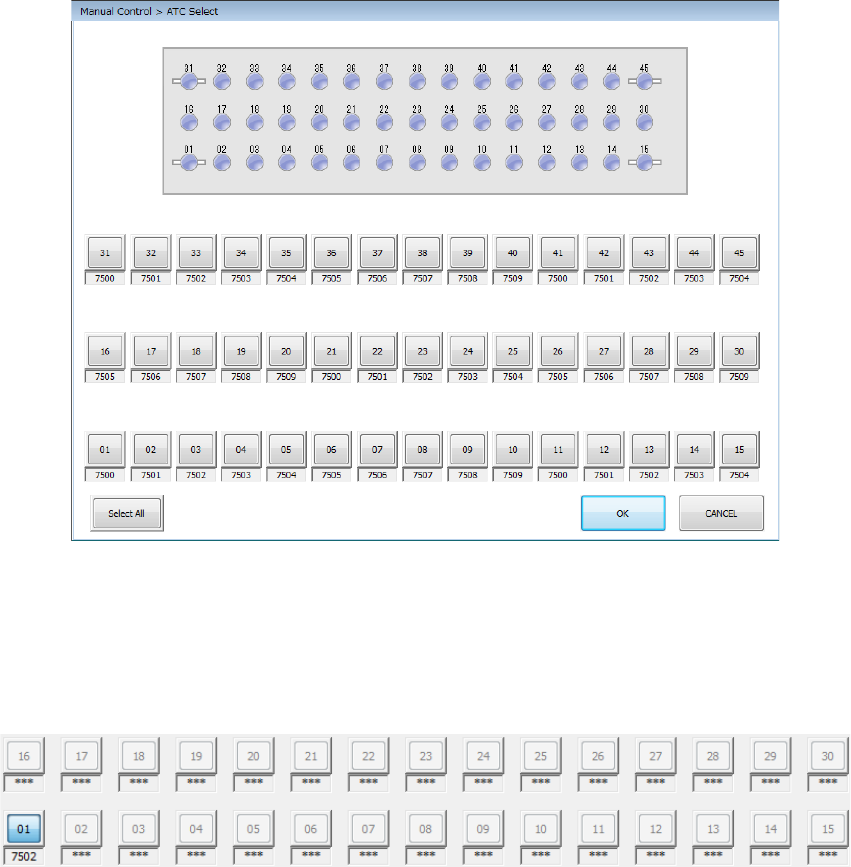

2) Nozzle change

The nozzle is changed.

This change is controlled by pressing the <EXEC>button when the control item “Nozzle

change” is selected.

When you press the <Select All> button, all the selectable ATC numbers are selected.

When you press the <OK> button, the nozzle is taken out from the selected ATC.

If a nozzle is already provided in the specified head, the nozzle is returned to the ATC.

After the nozzle is normally installed, the corresponding ATC cell is displayed in color by the

head unit.

3) Nozzle back

The nozzle is returned to the ATC. Select the control item “Nozzle back” and press the

<EXEC> button for control.

Part 2 Detailed Description of Each Function Chapter 9 Manual Control

9-32

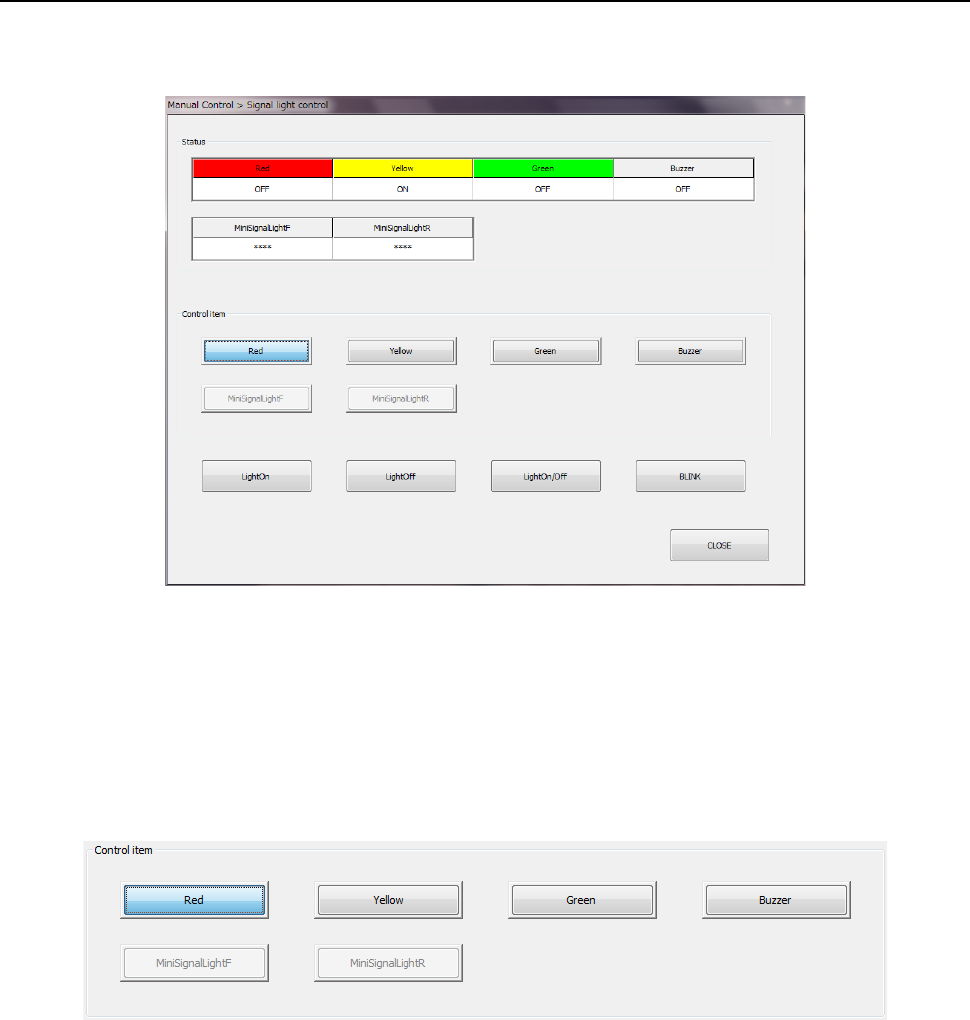

9.6.2 Signal light control

When you select [Other] – [Signal light control] in the menu, the “Signal light control” dialog

appears.

(1) Status

The status of each unit is displayed at completion of control.

(2) Control item

Select a control item by radio button. “Mini signal light” cannot be selected unless it is

checked off in the option settings of the MS parameters.

This has no effect on the setting in “Device enable” in Machine setup.

1) Red/Yellow/Green

The light ON/Light Off/BLINK of each color of the signal light is controlled.

Select <Light On> button, <Light Off> button, <Light On/Off> button, or <BLINK> button

for control.

2) Buzzer

The ON/OFF operation of the buzzer is controlled.

Press the <ON> button, <OFF> button, or <ON/OFF> button for control.

3) Mini signal light (front/rear)

The light ON/light OFF operation of each mini signal light is controlled.

Select <Light On> button, <Light Off> button, or <Light On/Off> button for control.

Part 2 Detailed Description of Each Function Chapter 9 Manual Control

9-33

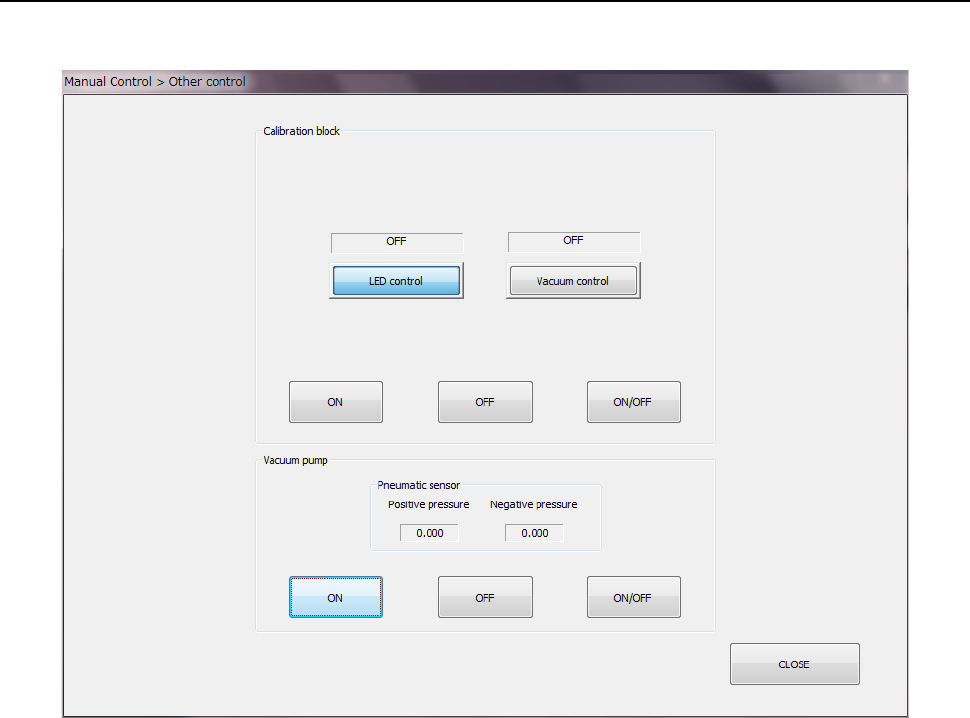

9.6.3 Other control

When you select [Other] – [Other control] in the menu, the other control dialog appears.

(1) Calibration block

Select a control item by radio button and press the <ON> button, <OFF> button, or

<ON/OFF> button on the “Calibration block” side for control.

1) LED control

The LED ON/OFF operation is controlled.

2) Vacuum control

The vacuum ON/OFF operation is controlled.

(2) Vacuum pump

Press the <ON> button, <OFF> button, or <ON/OFF> button on the “Vacuum pump”

“Ejector” side for control.
