Part 1 Basic Operat ion Chapter3 D aily maintenance 3- 30 Lubrication it em Ball screws and Spline shaft Lubrication fr equency : two months T ool to be used: Brus h Grease to b e used: C G2 1) Apply a lig ht coating o f…
Part 1 Basic Operation Chapter3 Daily maintenance
3-29
Lubrication item
Transport screw shaft
Lubrication frequency:
Every month
Tool to be used: Brush Grease to be used: 6459 Grease N
1) Screw shaft 1 on each side, right and left
Apply grease to the entire surface of ①.
Lubrication item
Transport guide shaft
Lubrication frequency:
Every month
Tool to be used: Brush Grease to be used: 6459 Grease N
1) Guide shaft: Two pieces on each of the left side and the right side (four pieces in total)
Apply grease to the entire surface of ①.
1) Two drive shafts both on the left and right sides: total four
Apply grease to the entire surface of ①.
Lubrication item
Drive shaft
(Single-lane conveyor specifications)
Lubrication frequency:
Every month
Tool to be used: Brush
Grease to be used: 6459 Grease N
①
*
①
①
Part 1 Basic Operation Chapter3 Daily maintenance
3-30

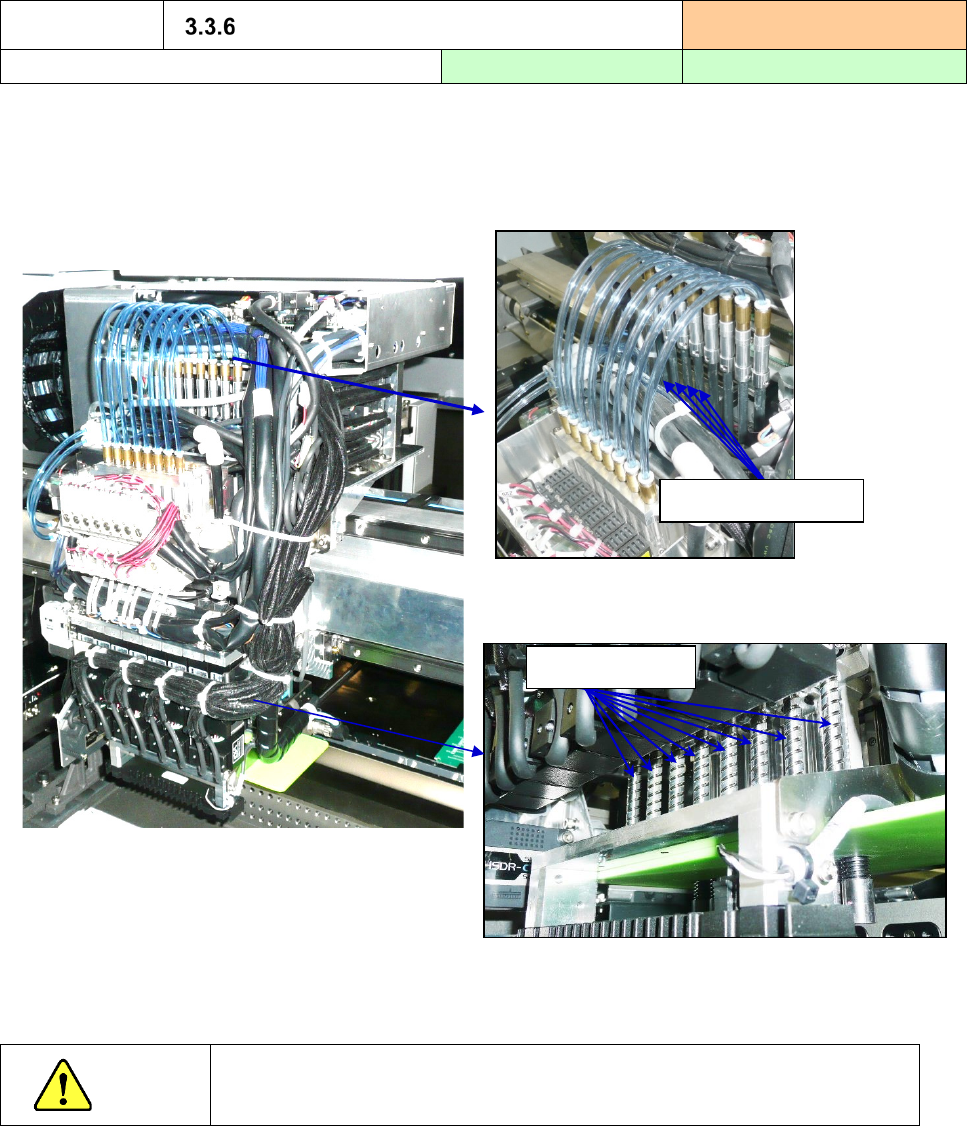

Lubrication item
Ball screws and Spline shaft
Lubrication frequency:
two months
Tool to be used: Brush Grease to be used: CG2
1) Apply a light coating of grease (CG2 grease) to the ball screws ① rails.
Apply a light coating of grease (CG2 grease) to the spline shaft axis ②.
After fitting grease to the spline shaft axis sufficiently with moving the Z axis up and down, remove
extra grease with cloth or similar matter so that it cannot be splattered.
CAUTION
Never apply any grease other than CG2 grease to the parts above.
When grease (CG2 grease) is mixed with another type of grease, it may
be separated from the screw, rails or shaft and run down.
Spline shafts
②
Figure of the head viewed from the top
Figure of the head viewed from the bottom
8-nozzle head
Ball screws
①
Part 1 Basic Operation Chapter3 Daily maintenance
3-31

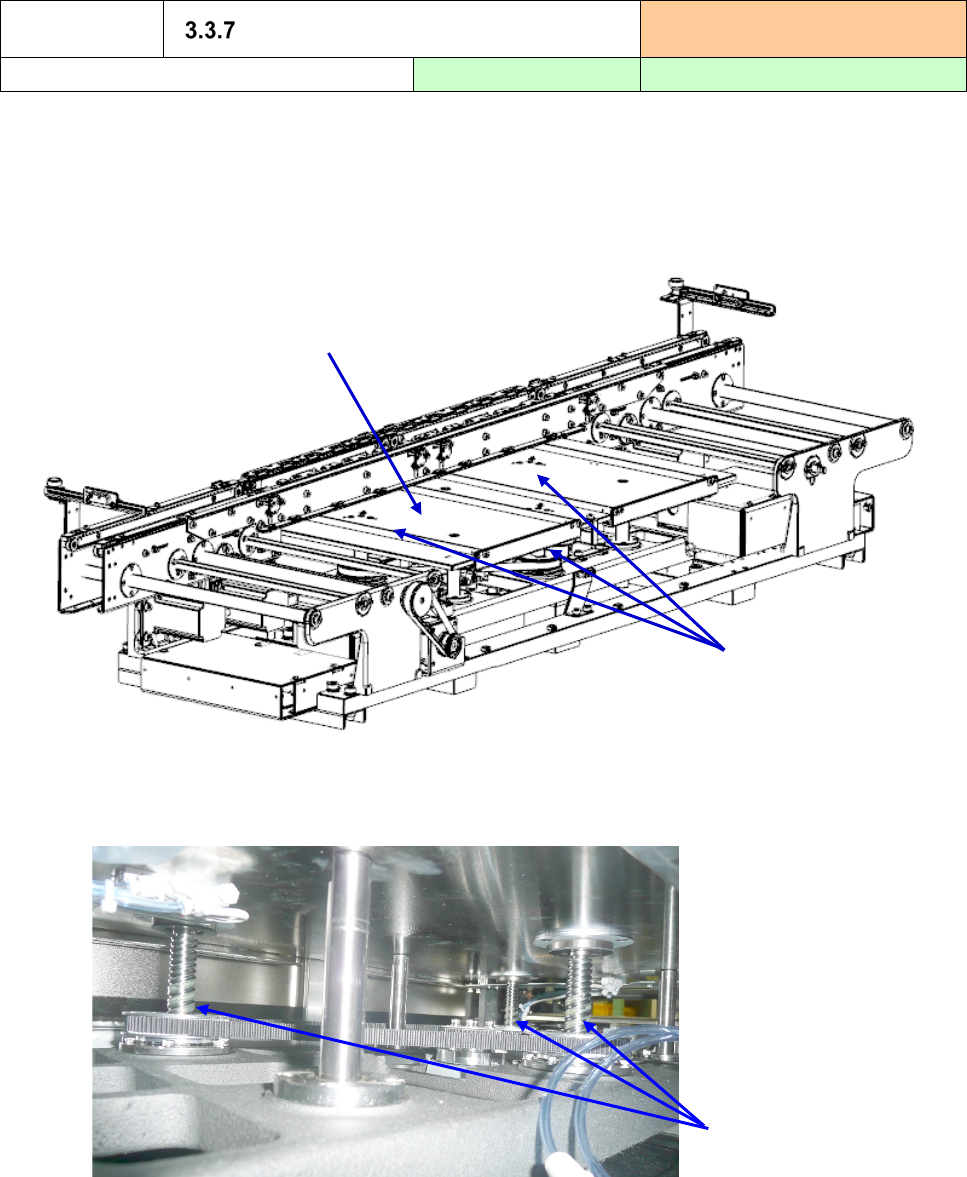

Lubrication item
Support table
Lubrication frequency: two months
Tool to be used: Brush Grease to be used: 6459 Grease N
1) Move up the support table with the “Manual Control” application, and then apply grease to the entire
surface of the threaded shafts of three ball screws from both sides. There are four ball screws in
case of a machine for an extra-large board.
Ball screws
Support tables
Ball screws
