Part 2 Detailed Description of Each Function Chapter 13 Supplementary Information for
Creating a Production Program
13-10
Saving control data onto the flush memory 13.2.1

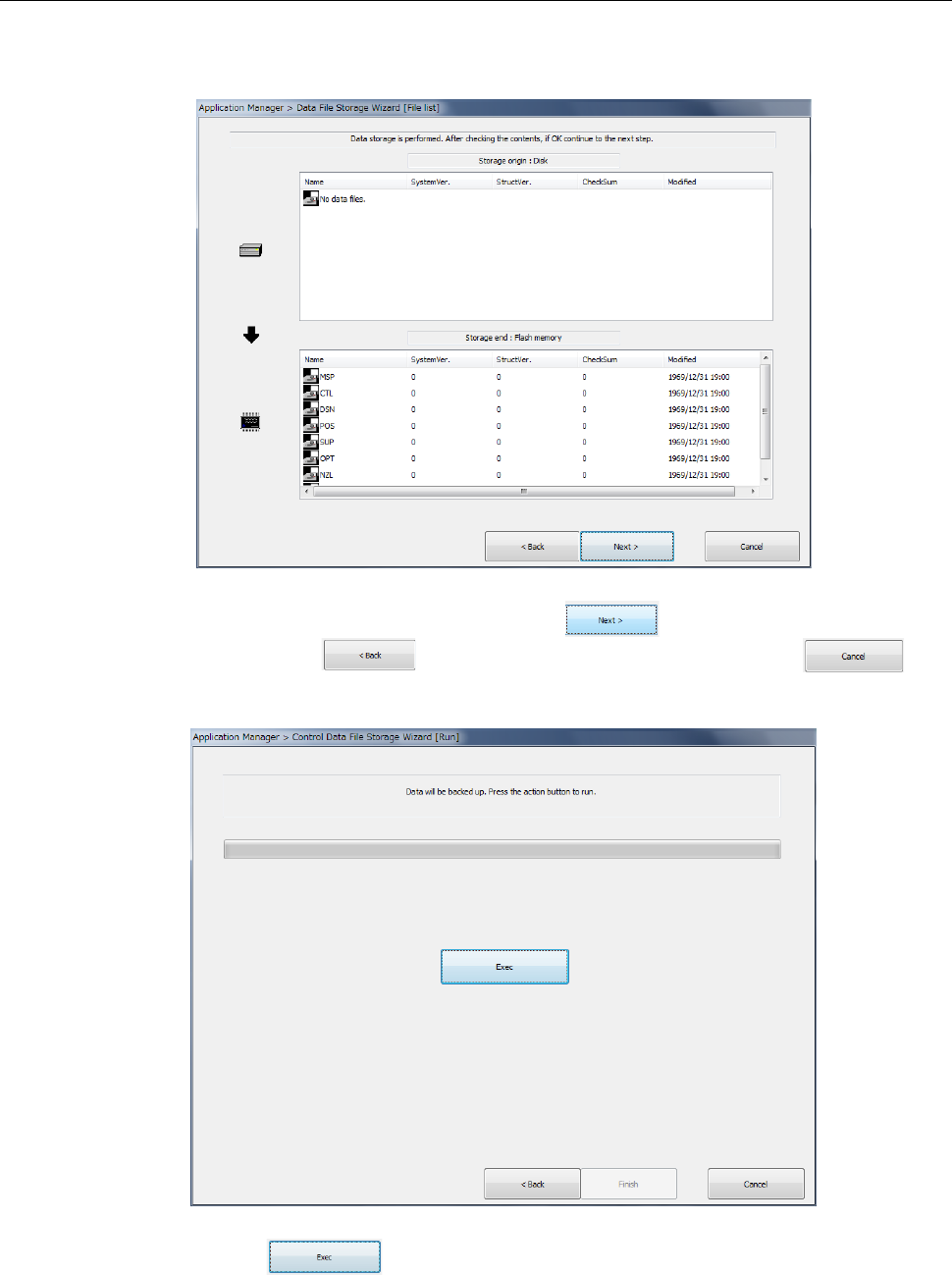

When you select <1.SSD ===> Flash> (saving into the flash memory of the main unit), the
following dialog appears.
After checking the control data to be saved, press the button. To change the control
data to be saved, click the button. To quit the operation, press the
button.
When you press the button, the system starts storing control data onto the flash
memory.
Part 2 Detailed Description of Each Function Chapter 13 Supplementary Information for
Creating a Production Program
13-11

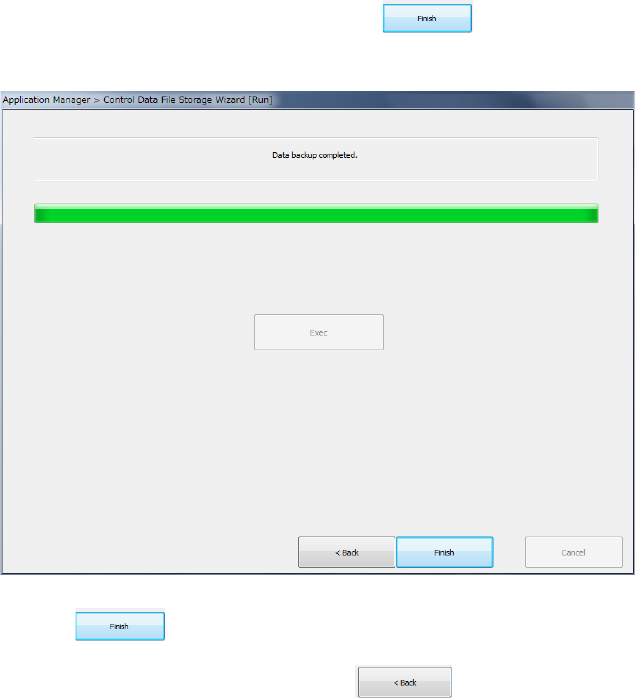

When the system finishes saving the control data, the button located on the bottom of
the dialog box is enabled on the screen.
When you press the button at this point, the system finishes storing the control data
completely.
To change the operation to be performed, click the button.
Part 2 Detailed Description of Each Function Chapter 13 Supplementary Information for
Creating a Production Program
13-12
Process for saving a control data file onto the USB memory or other media 13.2.2

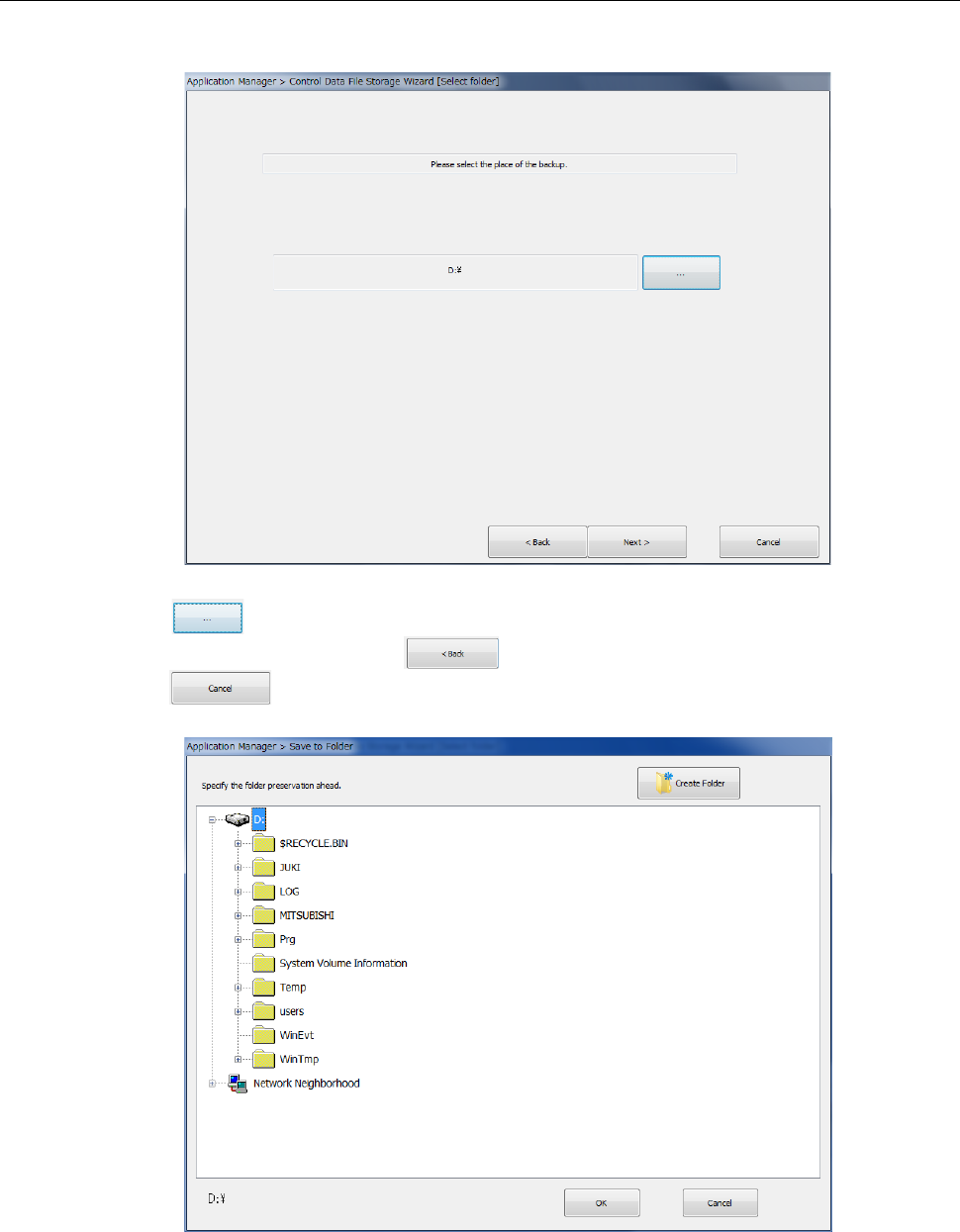

When you select <2.SSD ===> SSD or USB> (saving into the USB memory or the specified
folder on the hard disk), the following dialog appears.
Press the button to specify a folder under which you want to store the control data.
To change the operation, press the button. To abort the operation at this point,
press the button.
