Part 1 Basic Operation Chapter 4 Creating a Production Program
4-117
(14) Setting for determining the side of a component, the top or the bottom/checking the direction
of a component
When you select the “Vision 4” tab, the following screen appears.
The “Control 1” tab allows you to make settings of recognition, while the “Control 2” tab allows you
to make the detailed settings of the lights.
Make the settings of the lights only to inspect the direction of a BGA or FBGA component.
Light type
(Only for a BGA or FBGA
component)
Select the light type:
- Bottom Lights
- Back Lights
- Side Lights
Light style
(Only for a BGA or FBGA
component)
Select the detailed light types:
- Standard
- CBGA
- LGA
- Blue
- Red
- Fine
Offset of the mark for
inspection
Set the offset from the center of the component to that of the recognized
part in the range of -50 to 50.
Size of the mark for
inspection
Specify the window size for image recognition in the range of 0.01 to 50.
When the component type is “Chip” (square chip), the default size is the
shorter side*, 0.7 mm.
When the component type is “BGA” or “FBGA,” this field is blank by
default.
Inspection algorithm
Select the algorism for image recognition.
The mean value is bright.
The mean value is dark.
There are bright pixels.
There are dark pixels.
The standard deviation is large.
The standard deviation is small.
Inspection threshold value
Specify a threshold value for image recognition in the range of 0 to 255.
The settings that you are supposed to make on the “Control 2” tab are the same as those of the
“Control 3” tab of the “Vision 3” tab. (Note that only the “Pattern 1” tab is displayed on this tab.)
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-118
4.3.6 Pick data
The “Pick” data screen allows you to specify where a component is supplied and where it is picked
up.
A component supply unit that can be attached on the feeder bank are a tape feeder, a stick feeder,
a tray holder, a DTS, an MTC and an MTS.
In the RS-1/1R, there are 56 rails on one feeder bank regardless of whether it is an RF bank or an
RF/EF bank, and the number of a rail, onto which a feeder is mounted, becomes the number
assigned to the Pick data.

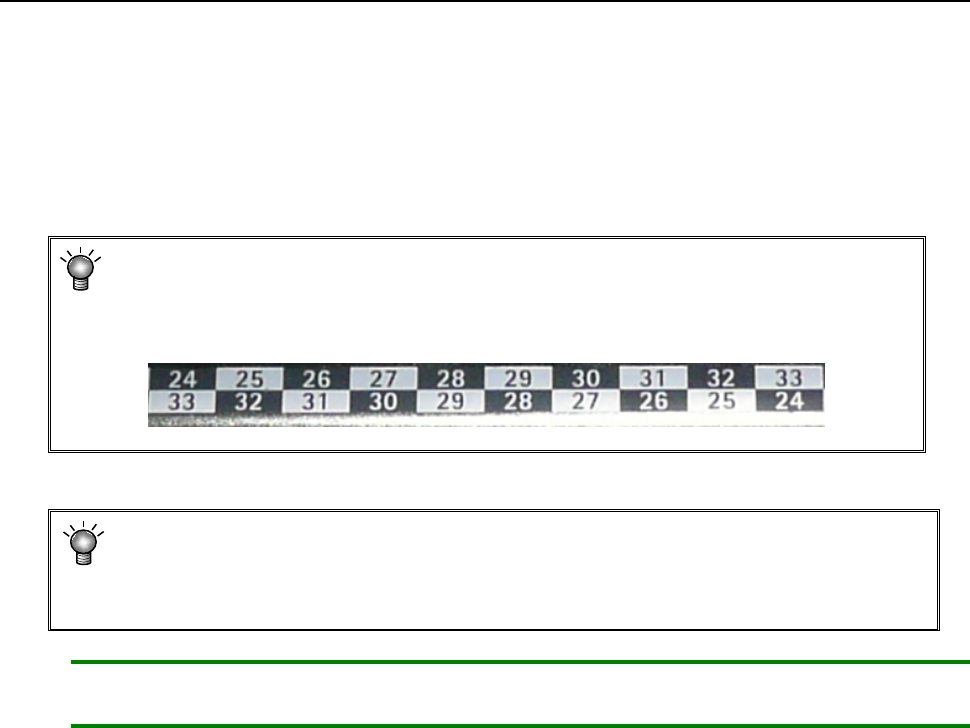

* In the feeder bank, numbers are expressed in two upper and lower rows.
The numbers of the upper row indicate the numbers on which a feeder is set on the
front side, while those of the lower row indicate the number on which a feeder is set
on the rear side.
* The component pick-up position is automatically assigned with the Optimization
function, but you have to manually assign the pick-up position in the following cases
• when the feeder layout is fixed, or
• when you change the feeder layout after optimization.
Note: If you load a production program file created with another model, the system may clear
the Pick data mainly because the number of rails of the bank different from the old one.
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-119
4.3.6.1 “Pick” data screen display
When you display the “Pick” data, the “List” screen opens at first.
When a feeder type is an electric feeder, an electric stick or an electric tray holder, their columns
are displayed in light blue on the “List” screen.
For Pick data that is to be taught automatically, you can check whether it has been already taught
automatically or not in the menu item “Auto teaching.”
