Part 1 Basic Operation Chapter 5 Database

5-6

Search 5.1.3.1

You can search the component database for data.

①

Click the <Search> button on the database list screen.

② The following dialog box appears on the screen.

Specify the search conditions, and click the <OK> button.

To narrow a search, specify the “Package Class,” “Feeder,” and/or “Centering” fields.

③ When the system finishes searching, it displays the “Database List” on which the first

matched component data registered in the database is highlighted.

Enter your

keyword.

Select one

from among

these search

options.

Part 1 Basic Operation Chapter 5 Database

5-7

Searching the next matched component data 5.1.3.2

Click the <Find next > button on the screen.

The system displays the next matched data.

Searching the previous matched component data 5.1.3.3

Click the <Find previous> button on the screen.

The system displays the matched component data located before the component data

currently displayed.

Part 1 Basic Operation Chapter 5 Database

5-8

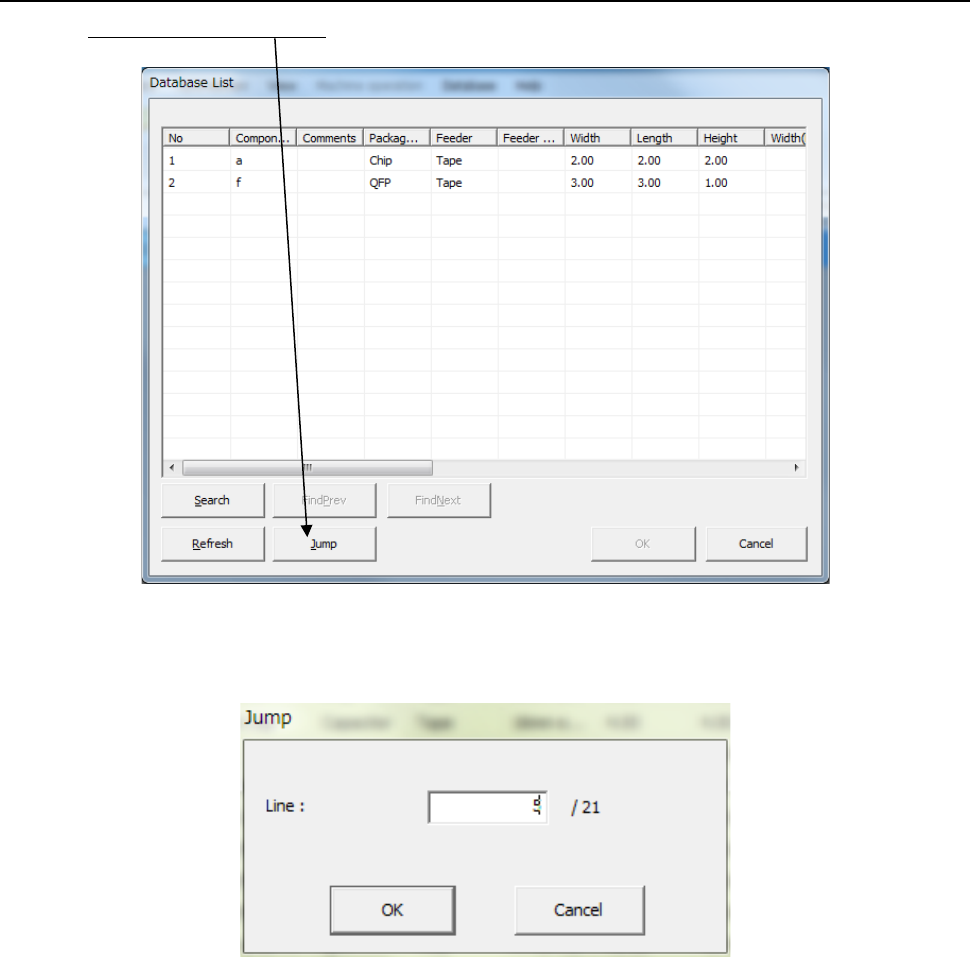

Jump 5.1.3.4

Click the <Jump> button on the screen.

The following screen appears. Enter the record number of component data to which you

want to jump.

When you click the <OK> button, the system jumps to the specified record number of

component data
