Part 2 Detailed Description of Each Function Chapter 10 Machine Management Information
10-33
10.4 Recognition / Inspection
10.4.1 OCC usage information
When you select [Recognition/inspection] – [OCC usage information] in the main menu, the OCC
usage information screen appears.
(1) OCC
No. Item Description
1 OCC using count Displays how many times the OCC was used totally.
2 OCC using time Displays the total time the OCC was used.
3 Number of BOC mark
recognition errors
Displays how many times a BOC mark recognition error
occurred totally.
4 Number of Area mark
recognition errors
Displays how many times an area mark recognition error
occurred totally.
5 Number of BANK
mark recognition
errors
Displays how many times a bank mark error occurred totally.
Part 2 Detailed Description of Each Function Chapter 10 Machine Management Information
10-34
(2) <Reset> button
When you press the <Reset> button or press [Initialize] – [Reset] in the main menu, the
following screen appears.
- The <All select> button allows you to select all check boxes displayed on the screen.
- When you press the check box of the item whose data you want to reset, and press the
<OK> button, the “Question” dialog box for asking you whether to reset data appears on
the screen. When you press the <OK> button on this “Question” message, the system
resets the checked items of data, and closes the screen.
- When you press the <CANCEL> button, the system does not reset any data and the
current data is still displayed.
Part 2 Detailed Description of Each Function Chapter 10 Machine Management Information
10-35
10.4.2 Laser usage information

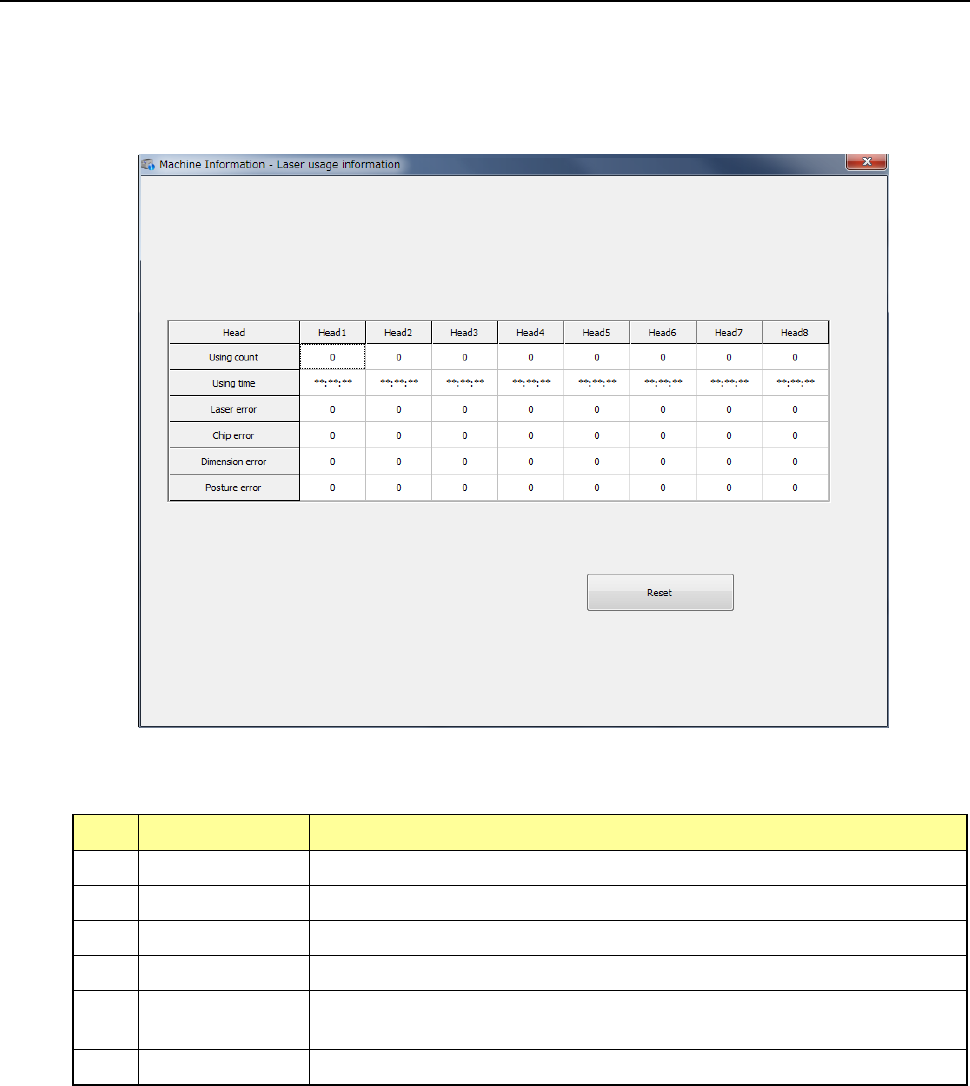

When you select [Recognition/Inspection] – [Laser usage information] in the main menu, the
laser usage information screen appears.
This screen is changed over to the information on each head unit by pressing the device select
button.
(1) Laser usage information
No. Item Description
1 Using count Displays how many times laser was used totally.
2 Using time Displays the total time laser was used.
3 Laser error Displays how many times a laser error occurred totally.
4 Chip error Displays how many times a tombstone error occurred totally.
5 Dimension
error
Displays how many times an irregular-shaped component error
occurred totally.
6 Posture error Displays how many times a component posture error occurred totally.
