Part 1 Basic Operation Chapter 2 Production
2-45
2) Items for production information
The general information on PWB production is displayed here.
No.
Item
Description
1 No. of PWBs
Shows “the number of PWBs produced already / the number of
PWBs planned to be produced.”
When the item “Count down the number of boards produced” is
selected on the Production (Display) tab of the “Operation option”
menu, this field shows “the number of PWBs that will be produced
from now / the number of PWBs planned to be produced.”
2
Total Pl
Shows the total number of components to be placed on boards.
3 Sequence
Shows the component placement sequence, Input order or
Optimized order.
4 Line Tact time
Sows the time passed from when one board was ejected from the
machine until when the next board was ejected.
5 Mach. Tact time
Shows the time passed from when one board was loaded to the
machine until when the board was ejected from the machine.
6
Total Pl. rate (%)
Shows the total component placement rate of the machine.
7
Total pick rate (%)
Shows the total component pick-up rate of the machine.
8
Cmp. run out
Shows the accumulated number of times components run out.
9 Laser Error
Shows the accumulated number of times a laser recognition error
occurred.
10 Cmp. Remove
Shows the accumulated number of times a picked-up component
was discarded.
3) Items for production operation
Following are the items that display the production operation on the currently superimposed
screen.
No.
Item
Description
1 Head
Shows a number of a head unit indicated in an item.
Shows either L or R when bank mark is recognized; shows the unit
used for recognition when any other mark is recognized.
2 Circuit No.
Shows a number of a circuit of components that are picked and
placed by head unit.
3 Step No.
Shows a number of placement data of components that are picked
by a head unit and a number of a mark when BOC mark or bank
mark is recognized by a head unit.
4
Total Pl.
Shows the number of components that are placed on PWB.
5 Pick Pos.
Shows the feeder position where components are picked by a head
unit
6
Nozzle No.
Shows the number of nozzles that are held by a head unit
7
Cmp Name
Shows the names of components that are picked by a head unit
8 Cmp. ID
Shows the placement IDs of components that are picked by a head
unit
Part 1 Basic Operation Chapter 2 Production
2-46

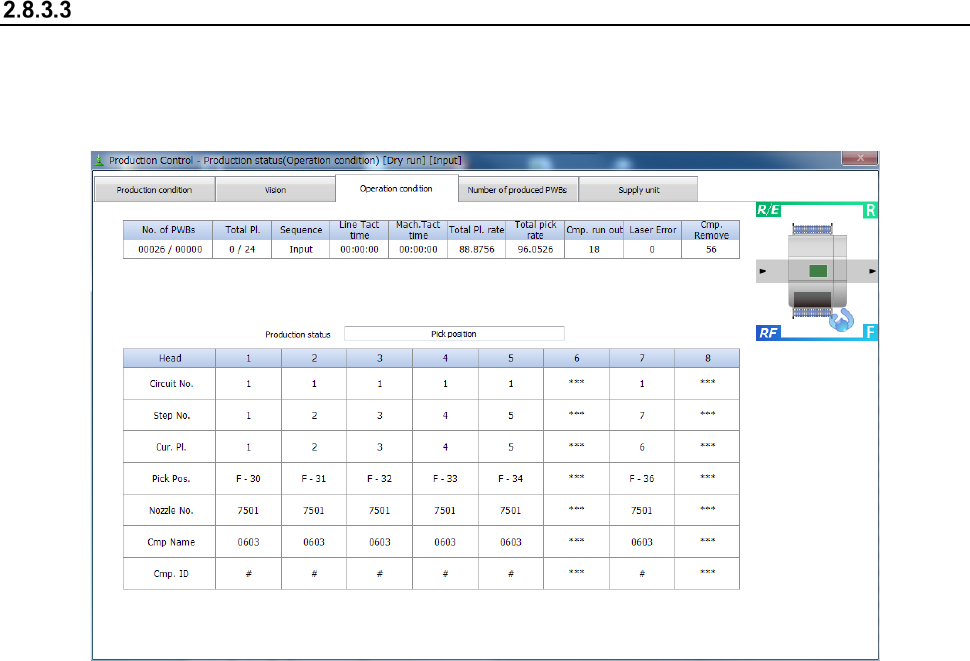

Operation condition
When you select the [Window] command, and then the [Production status (Operation condition)]
command, the “Production status (Operation condition)” screen appears.
This screen shows an operation performed during PWB production.
- Operation condition
1) Items for production condition
These items are the same as those displayed on the “Production status (Production condition)”
screen. See Section 2.8.3.1 “Production condition” for details.
2) Items for production information
These items are the same as those displayed on the “Production status (Vision)” screen. See
Section 2.8.3.2 “Vision” for details.
3) Items for production operation
These items are the same as those displayed on the “Production status (Vision)” screen. See
Section 2.8.3.2 “Vision” for details.
Part 1 Basic Operation Chapter 2 Production
2-47

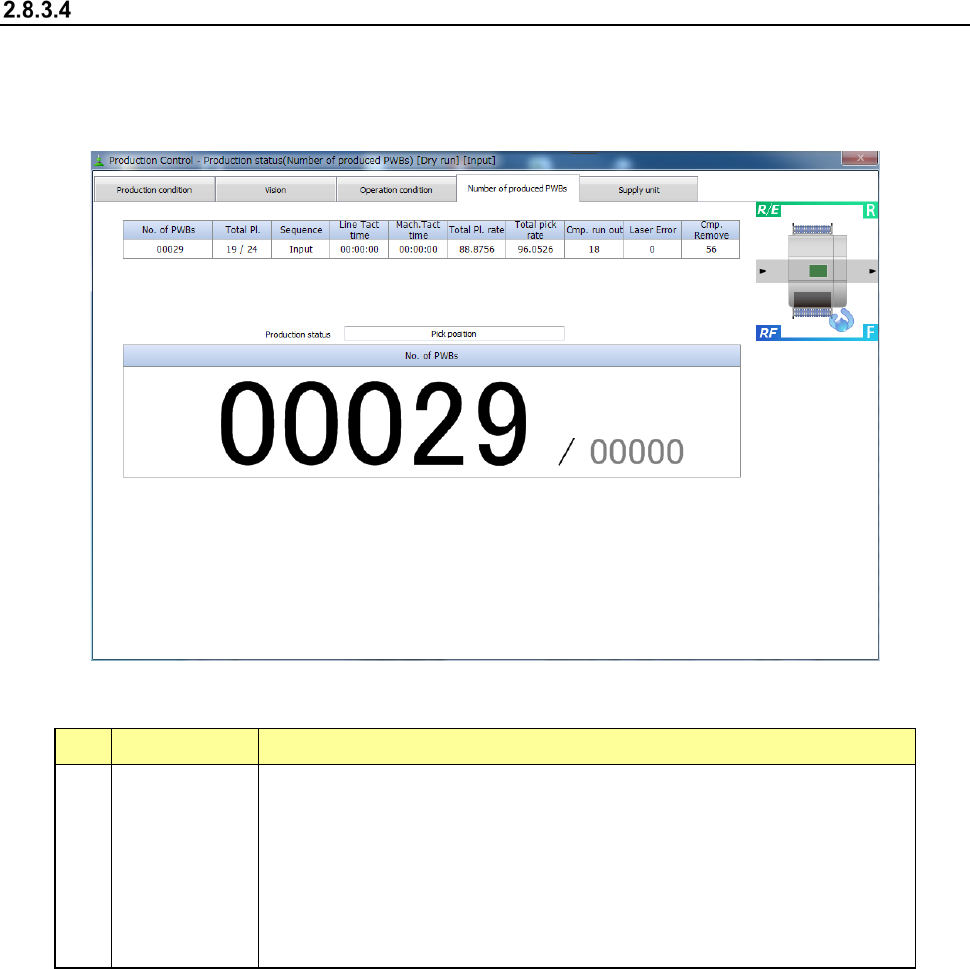

Number of produced PWBs
When you select the [Window] command, and then the [Production status (Number of produced
PWBs)] command, the “Production status (Number of produced PWBs)” screen appears.
This screen shows the number of PWBs already produced in large characters.
- Number of produced PWBs
1) Item displayed in large characters
No. Item Description
1 No. of PWBs
Shows “the number of PWBs produced already / the number of PWBs planned
to be produced.”
When the item “Count down the number of boards produced” is selected on the
Production (Display) tab of the “Operation option” menu, this field shows “the
number of PWBs that will be produced from now / the number of PWBs planned
to be produced.”
When the machine uses the dual-lane conveyor to produce PWBs, the total
number of PWBs produced with the front lane and the rear lane is displayed
here.
2) Items for operation condition
These items are the same as those displayed on the “Production status (Operation condition)”
screen. See Section 2.8.3.3 “Operation condition” for details.
3) Items for production information
These items are the same as those displayed on the “Production status (Vision)” screen. See
Section 2.8.3.2 “Vision” for details.
