Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-50

(3) Connect each cable and an air tube to the “MTC power connector 1,” the “signal connector 2”

and the “air joint for the MTC 3” on the interface panel on the right side of the main unit.

① Power connector for the MTC

② Interface connector for the MTC

③ φ6 tube take-up port for the MTC

(4) Turn on the machine, and then make settings of the “Device enable” screen and those of the

“MTC shuttle pick position” screen both of which are invoked from the “Machine Setup”

screen.

12.8.2 Setting the MAIN board

To use a TR6SNV/TR6DNV with an RS1/1R, you have to make setting of the DIP switch on the

MAIN board.

The DIP SW 6-2 is set to OFF at the factory.

To connect this MTC to the RS-1/1R, check the setting of the board attached on it and change it as

shown below.

Machine model the MTC is connected to

DIPSW6-2

RS-1/1R ON

Machine model other than an RS-1/1R

OFF

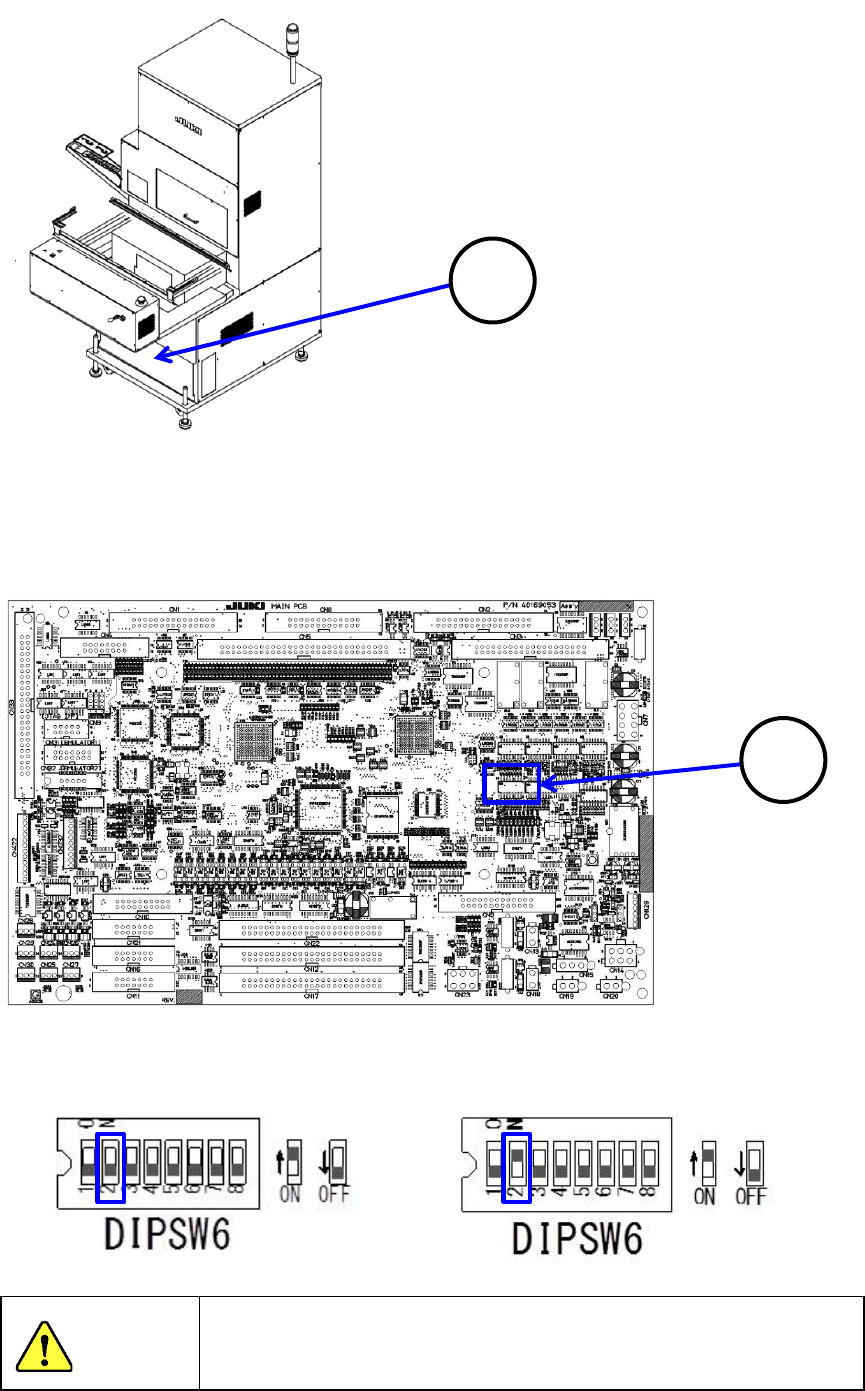

To check the MAIN board, remove the cover ① of the MTC.

Note:

Be sure to use the cables and the air tube supplied with the MTC.

①

②

③

Front

Rear

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-51

When you set the DIP SW 6-2 located at the position ② of the MAIN board to ON, the

TR6SNV/TR6DNV that has been remodeled and whose software has been upgraded can be used

with the RS-1/1R. When you set the DIP SW 6-2 to OFF, the MTC can be connected to a

machine model other than an RS-1/1R with which the MTC can be used.

Machine model the MTC is connected to:

Other than an RS-1/1R

Machine model the MTC is connected to:

RS-1/1R

To avoid any accident caused by sudden activation of the machine,

turn off the power.

CAUTION

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-52

12.9 Dual Tray Server (DTS)

You can select a TR1RB as a DTS to be used with this machine.

Refer to the “INSTRUCTION MANUAL” of the DTS for how to handle it in details.

CAUITON

Do not replace the DTS with another one while the X- or Y-axis, or head is

operating. It may cause a serious injury to the operator or damage the machine

itself since the tray holder touches the operating parts.

Do not replace the tray holder with another one while the X- or Y-axis or head is

operating.

Be sure to open the safety cover before replacing a tray holder with another one.

After setting feeders required for PWB production at the positions specified with a

production program respectively, set feeders not to be used for production such

as an 8-mm tape feeder at all the positions not occupied with the feeders above

so that any finger or hand cannot be put between the set feeders to secure your

safety.

When using a tray with a thickness exceeding 10 mm, leave the rear feeder

floating sensor non-used. And you can use it by removing the regulation bar.

RS-1 operates with component height 25 mm only.

When using a tray with a thickness of 10 mm or less, use the rear feeder floating

sensor. If you install the regulation bar, it works according to the part height.

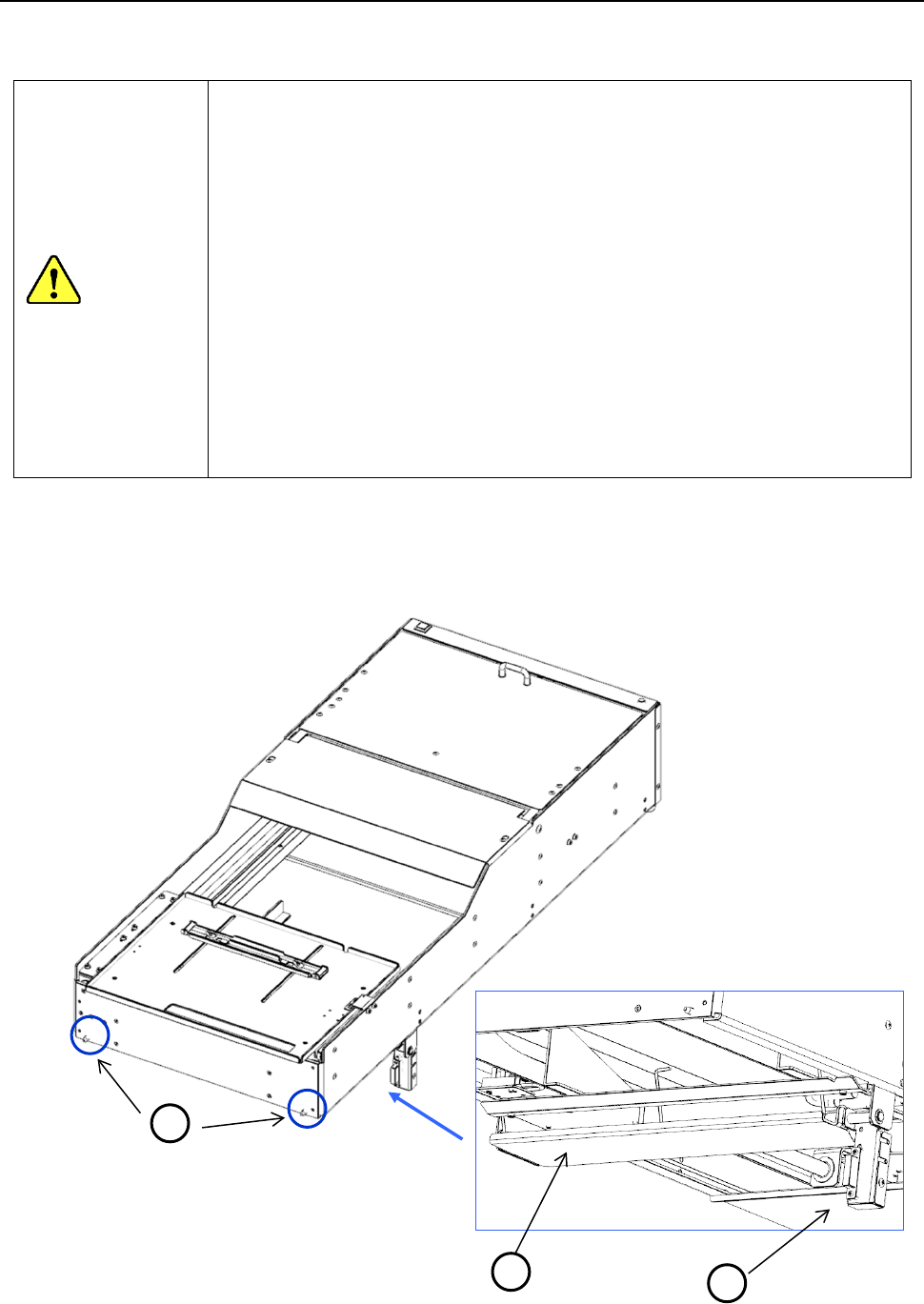

1) Attach the DTS at the desired position of the rear bank set with the “Machine Setup” screen.

Insert the positioning pin ① at the edge of the DTS into the bank.

2) Lock the clamp lever ② to fix the DTS.

3) Lower the I/F connector bracket ③ to insert the connector securely.
