Part 1 Basic Operation Chapter 4 Creating a Production Program

4-238

③ Component return setting

Select how to handle an extremely small component whose dimension is 1 mm or less after

the system measures it.

Menu item Overview

Returns every time The system returns a component to its original position every time the system finishes

measuring it.

Throw away every time The system discards a component every time the system finishes measuring it.

Inquires every time The system asks you how to handle a component every time the system finishes measuring it.

④ <Continuous MEAS.> button

This button starts continuous measurement of components.

⑤ <Exit> button

This button switches the screen back to the previous screen.

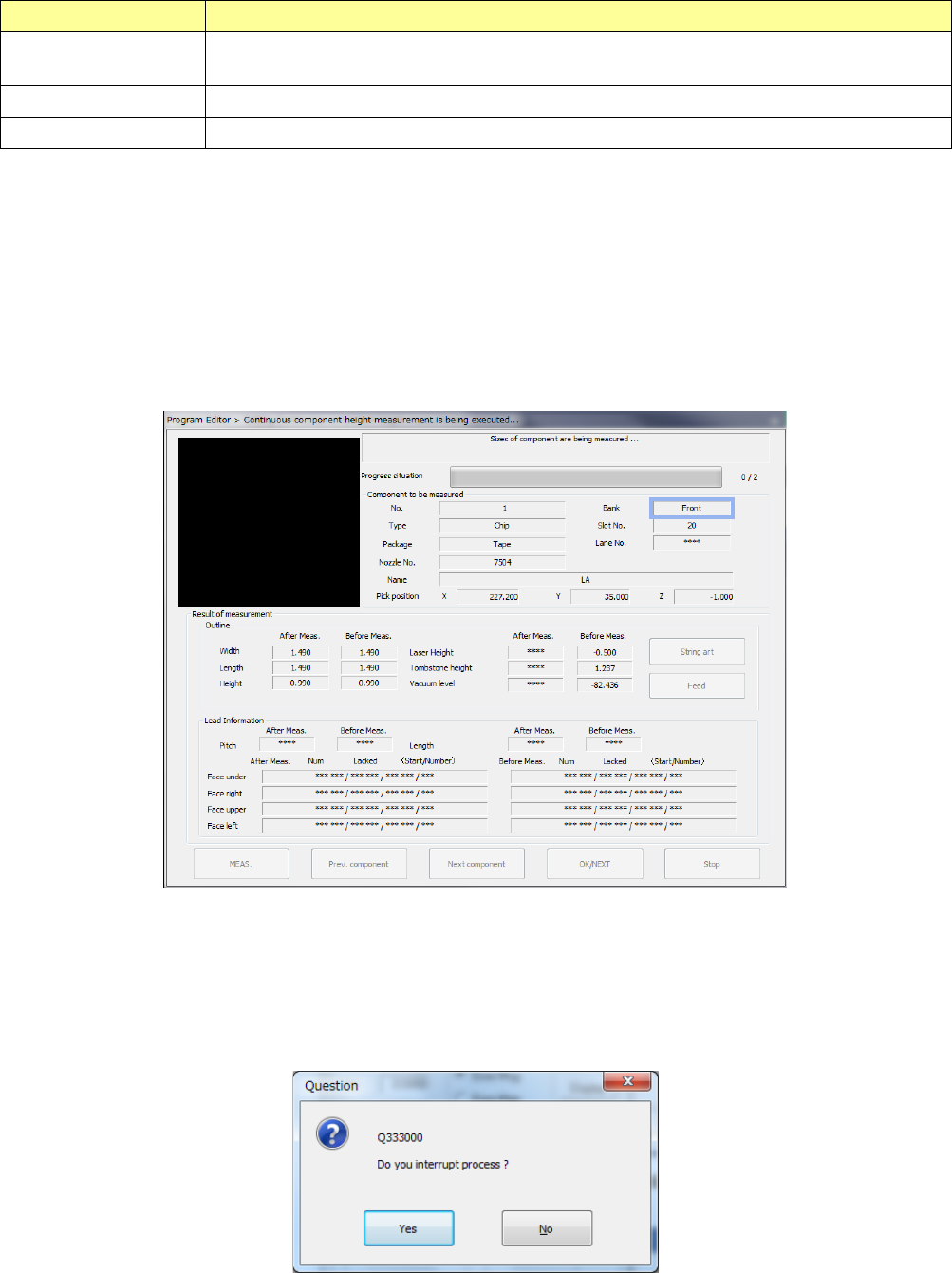

2) Screen displayed during continuous measurement

(“Continuous component measurement is being executed” screen)

The dialog box like the one shown below appears during continuous measurement, and it

shows that the processing being executed is updated sequentially.

a) Progress situation

The progress bar indicates the current progress situation.

To forcibly abort the current continuous measurement operation, press the <STOP> switch.

The following dialog box appears on the screen. Select whether to abort the measurement

operation or not.

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-239

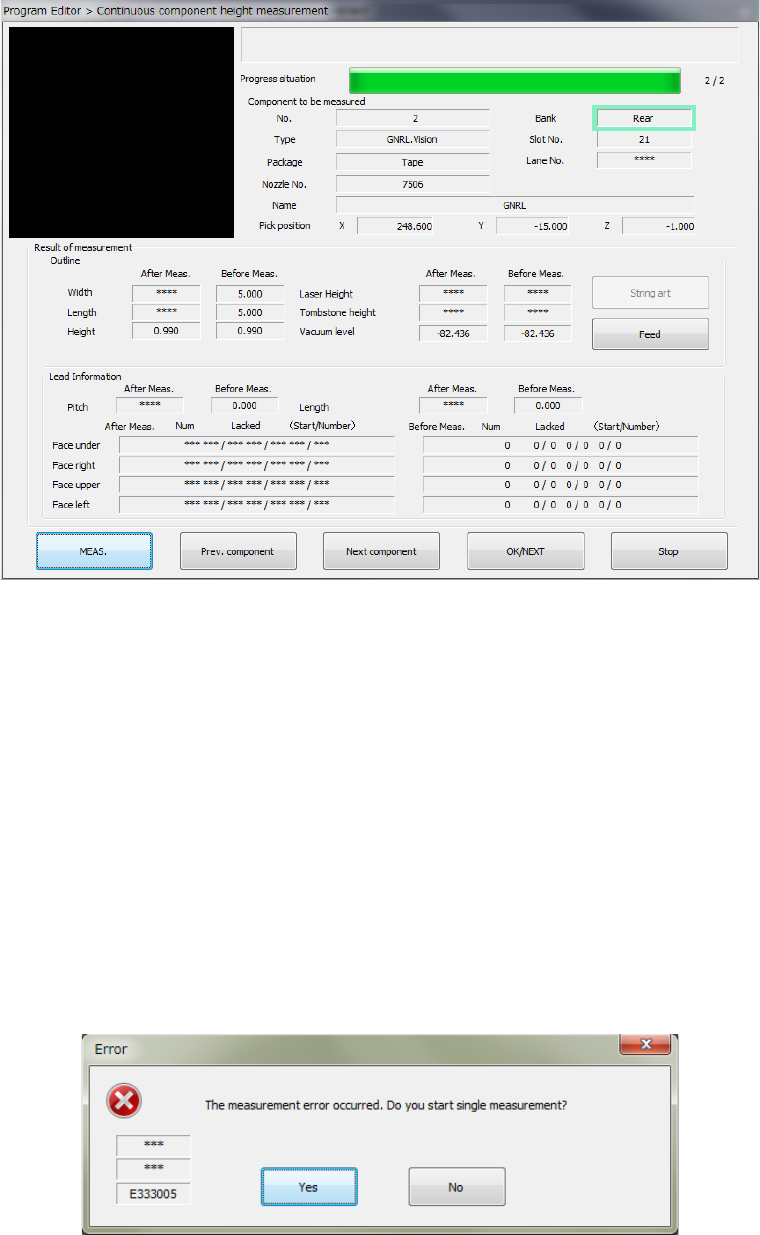

3) Result of the continuous measurement

When continuous measurement of components finishes, the following result screen

appears.

① <OK> button

This button validates the measurement result, and then stores the values obtained with the

measurement into the Component data. Then, the system measures the next component.

② <Cancel> button

This button cancels the measurement result, and then stops continuous measurement.

The system displays the previous screen for setting the continuous measurement conditions

again.

③ <MEAS.> button

This button measures a component being measured in Single Measurement mode.

④ If a measurement error occurs

If a measurement error occurs for any reason, the following dialog box appears on the

screen. When you click the <Yes> button, the system enters Single Measurement mode.

When you select "No", the next component is measured.

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-240

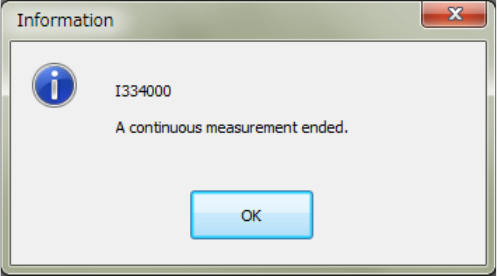

4) When continuous measurement finishes

When the system finishes measuring all components that satisfy the specified conditions,

the following dialog box appears on the screen.
