Part 1 Basic Operation Chapter 2 Production
2-79

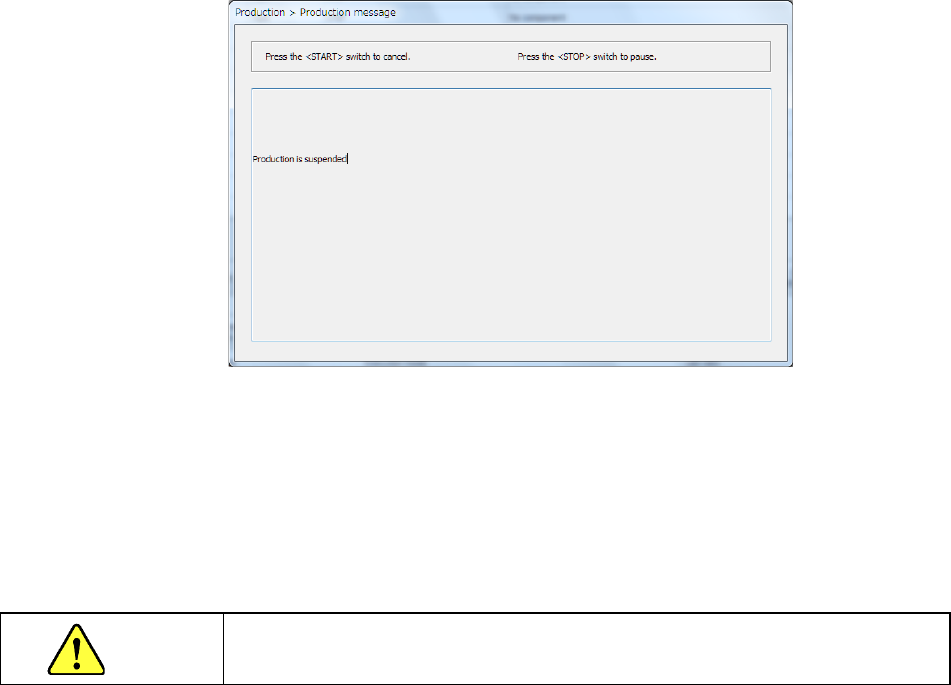

9) <STOP> switch
When you press the <STOP> switch during PWB production, the system pauses if any station
is producing a PWB or it aborts production if there is no station producing a PWB.
When you press the <STOP> switch, the system aborts PWB production.
The system moves down the Support plate so that you can take out a board.
It also removes the nozzle attached on the head.
When you press the <START> switch at this point, the system displays the “Retry list” again.
When you press the <STOP> switch, the system displays the production start screen again.
Even though you abort the current PWB production, the XY-axes and the nozzle heads keep
operating to replace a nozzle with another one.
When these parts finish operating, the clamped board is released.
CAUTION
When you press the <STOP> button, the system starts replacing nozzles.
To avoid a risk of injury, do not place your hand in the machine, nor move your face or
head close to the machine while the machine is operating.
Part 1 Basic Operation Chapter 2 Production
2-80
(2) Retry list (not placed)
The displayed menu items except for the listed data itself are the same as those of the “Retry
list (Supplier).”
1) Retry list (Unplaced)
The errors are displayed in occurrence order.
Menu item
Description
Place ID Displays the component ID of a component that the machine failed to place on a board.
Circuit
Displays the number of a circuit that the machine failed to place on a board.
Step Displays the placement step in which the machine failed to place a component.
Package
Displays the package of a component that the machine failed to place on a board.
Error Displays the cause of a component placement failure.
2) Error (Type)
No.
Error
Cause
1 Mark recognition
Since the machine failed to recognize an area mark, it was not able to place the
component on the board.
2 VCS Recog.
Since the machine failed to recognize a component with a VCS, it was not able
to place the component on the board.
3 LA Recog.
Since the machine failed to recognize a component with laser, it was not able to
place the component on the board.
4 Component
The machine failed to place a component on the board due to the component
itself such as its irregular shape.
5 Feeder
The machine failed to place a component on the board because components
run out on a tape, a stick or a holder.
6 MTC
The machine was not able to place a component on the board because
components run out on the MTC supply unit or the unit malfunctioned.
7 MTS
The machine was not able to place a component on the board because
components run out on the MTS supply unit or the unit malfunctioned.
8 DTS
The machine was not able to place a component on the board because
components run out on the DTS supply unit or the unit malfunctioned.
9 Setting
The machine failed to place a component on the board due to wrong setting
such as setting of the Setup application.
10
Copla
(Coplanarity)
The machine was not able to place the component on the board due to a failure
during coplanarity check.
Part 1 Basic Operation Chapter 2 Production
2-81
3) Error (Detail – Mark Recog./VCS Recog.)
No.
Displayed error message
1
lead bend
2
lead length error
3
lead pitch error
4
detected lead count too short
5
detected lead count too much
6
No lead
7
detected lead count 1-3
8
cannot detect Component frame
9
fine pitch lead Recognized Error
10
detected lead count too short(Exp Lead connector)
11
detected lead count too much(Exp Lead connector)
12
ballRecog Err(ball cannot det(Up side)(lower 1/3))
13
ballRecog Err(ball cannot det(bottom side)(lower 1/3))
14
ballRecog Err(ball cannot det(Left side)(lower 1/3))
15
ballRecog Err(ball cannot det(Right side)(lower 1/3))
16
ballRecog Err(Up/down side incln is over 3 deg)
17
ballRecog Err(left/right side incln is over 3 deg)
18
ballRecog Err(Up/down side distance is over half p)
19
ballRecog Err(left/right side distance is over half p)
20
All ballRecog Err(ball pitch error)
21
All ballRecog Err(ball cannot det by darkness)
22
All ballRecog Err(ball Up/down side incln is over 3 deg)
23
All ballRecog Err(ball left/right side incln is over 3 deg)
24
All ballRecog Err(ball Up/down side dist is over half p)
25
All ballRecog Err(ball left/right side dist is over half p)
26
All ballRecog Err(ball cannot create insp area)
27
All ballRecog Err(ball transformation insp error)
28
All ballRecog Err(Diameter-insp error)
29
All ballRecog Err(brightness error)
30
All ballRecog Err(existence error)
31
Outline Recog Err(No component)
32
Outline Recog Err(Component size error)
33
Outline Recog Err(not exist pattern within det window)
34
Outline Recog Err(Incln Over 1 deg from Area mark)
35
Outline Recog Err(over mark distance +-0.5mm)
36
Outline Recog Err(OFCComponent Recognized Error)
37
Multi-Lead Recog Err(lead bend)
38
Multi-Lead Recog Err(lead length error)
39
Multi-Lead Recog Err(lead pitch error)
40
Multi-Lead Recog Err(detected lead count too short)
41
Multi-Lead Recog Err(detected lead count too much)
42
Multi-Lead Recog Err(No lead)
43
Multi-Lead Recog Err(detected lead count 1-3)
44
Multi-Lead Recog Err(cannot positioning)
45
Multi-Lead Recog Err(cannot detect leads)
46
Random ballRecog Err(ball pitch error)
47
Random ballRecog Err(ball transformation insp err)
48
Random ballRecog Err(ball Diameter-insp error)
49
Random ballRecog Err(ball exist-insp(Diameter) err)
50
Random ballRecog Err(ball exist-insp(brightness) err)
51
Random ballRecog Err(ball exist-insp(brt samples is short))
