Part 1 B asic O pera t ion Chapter 5 Database 5-8 Jump 5.1.3. 4 Cl ic k the <Jum p> bu tton on the scre en. The follow ing sc ree n ap pears . Ent er th e rec ord numb er o f com pone nt d ata t o wh ic h you want …
Part 1 Basic Operation Chapter 5 Database
5-7
Searching the next matched component data 5.1.3.2
Click the <Find next > button on the screen.
The system displays the next matched data.
Searching the previous matched component data 5.1.3.3
Click the <Find previous> button on the screen.
The system displays the matched component data located before the component data
currently displayed.
Part 1 Basic Operation Chapter 5 Database
5-8
Jump 5.1.3.4
Click the <Jump> button on the screen.
The following screen appears. Enter the record number of component data to which you
want to jump.
When you click the <OK> button, the system jumps to the specified record number of
component data
Part 1 Basic Operation Chapter 5 Database
5-9
ReSearch 5.1.4
This [ReSearch] command re-searches the database or permanent information for
Component data, Pick data of a production program to update data of the program.

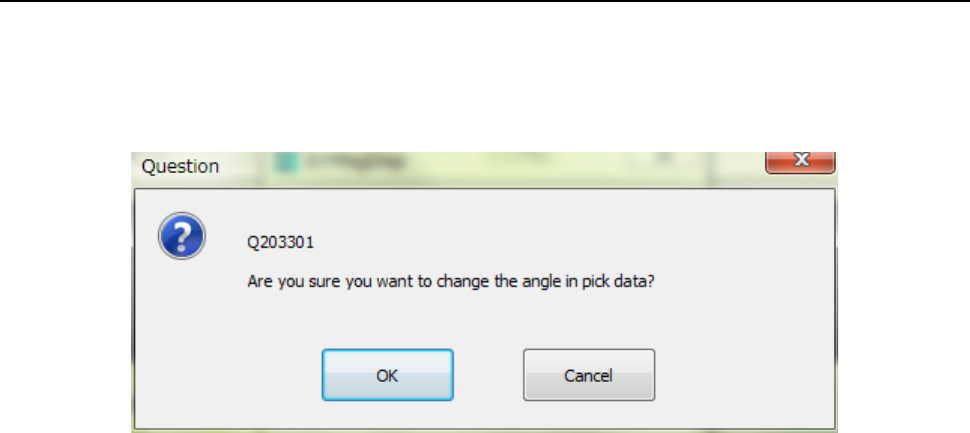

When you click the [ReSearch] command, the message like the one shown below appears
on the screen.
- When you select the <OK> button, the system updates all component pick-up angles.
- When you select the <Cancel> button, the system does not update the angle(s) set in the
Pick data.
